Leadwell V50L

Photo Gallery

Leadwell - V50LIT-MIL-LEA-2013-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

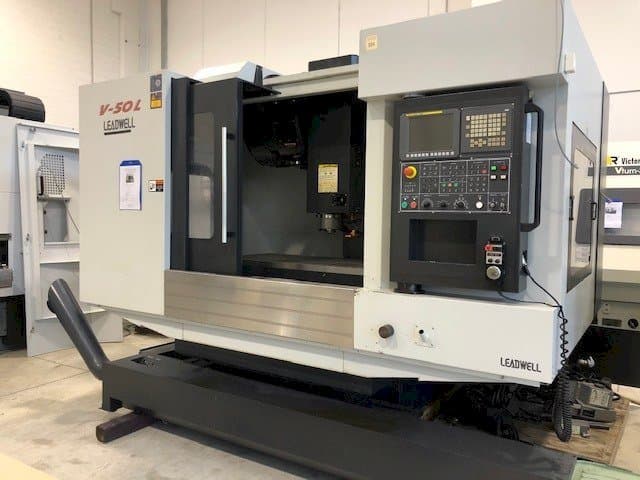

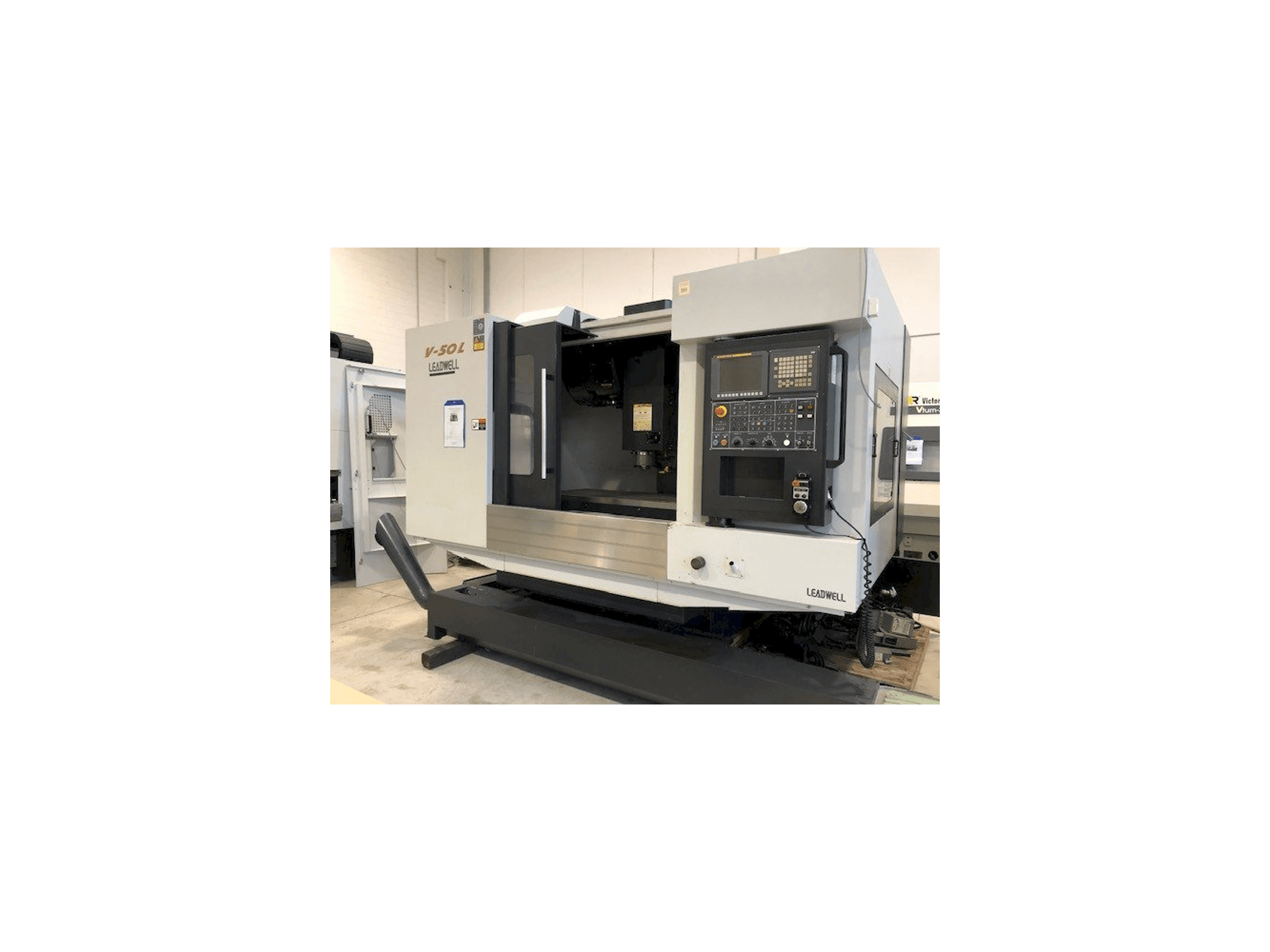

LEADWELL V50L Vertical Machining center

Show in original language

This LEADWELL V50L Vertical Machining center was manufactured in the year 2013. It is equipped with a Fanuc 0 i MD control unit and has 3 axis. The machine has a spindle speed of 10000 rpm.

Overview

brand: Leadwell
year: 2013
MODEL: V50L
application type: Milling
Location: Italy
machine type: Vertical Machining Centre
control unit brand: FANUC

Technical Information - Leadwell V50L

Control Unit

Control Brand: FANUC
Control Model: 0 i MD

Dimensions

Machine Weight: 7000 kg
Table Length: 1420 mm
Table Load: 1000 kg
Table Width: 610 mm

Movement

Number of Axes: 3
X-axis Travel: 1270 mm
Y-axis Travel: 635 mm
Z-axis Travel: 610 mm

Technical Specification

Spindle Speed: 10000 RPM

Additional Information

Machine Benefits

Technical Machine Benefits

Feeds: fast x / y / z axes 36/36/36 m / min
Distance spindle nose - table min / max 100/710 mm
Distance spindle - column 630 mm
Spindle connection iso 40
Spindle motor power 18. 5 / 22 kw
Tool magazine 24 pos.
Max tool weight kg. 7
Max tool size diam / length. Mm. 80 adj. / 250
Refrigeration a. P. Through 20 bar spindle - chip conveyor and remote electronic handwheel.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
