Leadwell - V40 5AXSI-MIL-LEA-2011-00001
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used Leadwell V40 5AX For Sale | gindumac.com

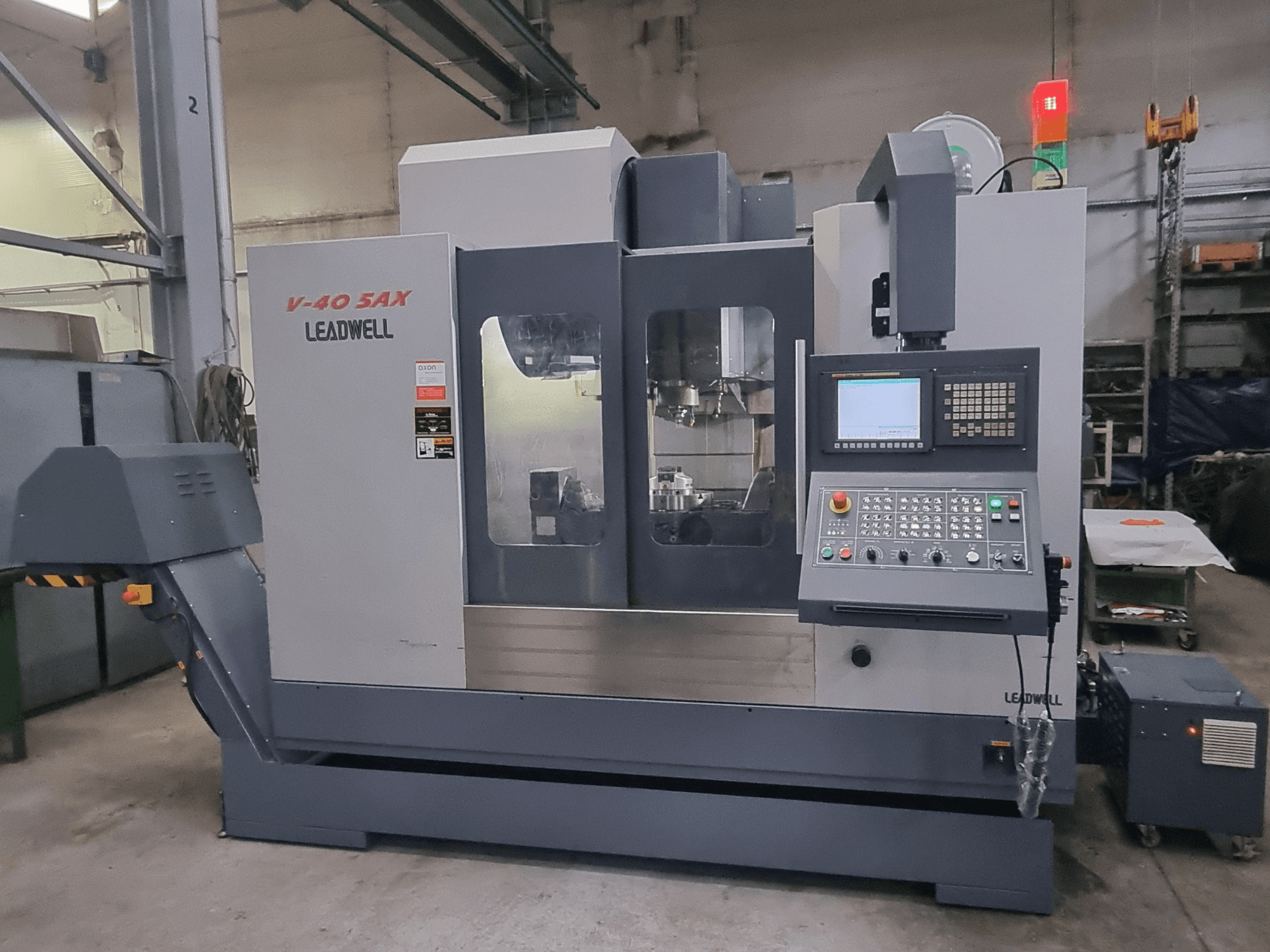

This 5-axis Leadwell V40 5AX was manufactured in 2011. It features impressive travels of X 860 mm, Y 630 mm, and Z 550 mm, with a maximum workpiece diameter of 630 mm. The machine is equipped with a spindle speed of 12,000 rpm and a tool capacity of 30. If you are looking to get high-quality machining capabilities, consider the Leadwell V40 5AX vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: Leadwell
- year: 2011
- MODEL: V40 5AX
- production hours: 6532
- application type: Milling
- Location: Slovenia
- machine type: Vertical Machining Centre
- control unit brand: FANUC
Technical Information - Leadwell V40 5AX
Control Unit
- Control Brand: FANUC
- Control Model: 0i-MD
Movement
- Number of Axes: 3
- X-axis Travel: 860 mm
- Y-axis Travel: 630 mm
- Z-axis Travel: 550 mm
Technical Specification
- Spindle Power: 18.5 kW
- Spindle Speed: 12000 RPM
- Taper Size: SK 40
- Tool Stations: 30
Additional Information
Table diameter: 400 mm
Maximum workpiece diameter: 630 mm
Rapid traverse: 36 / 36 / 36 m/min
Spindle torque: 127 Nm
Through-spindle coolant: 20 bar
Enclosure wash-down: Yes
Connectivity: Ethernet, CF card, Serial connection
Machining hours: 6,532 h (Parameter 06753 + 06754 in seconds)
Additional equipment
Integrated quick clamping system: Lang 96 mm
3D probe: Renishaw OMP-60
Mist extraction unit: Losma Darwin 1200
Chip removal: 2x screw chip conveyors and belt chip conveyor
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
