➤ Used LAFRANCONI LM 400 For Sale | gindumac.com

Show in original language

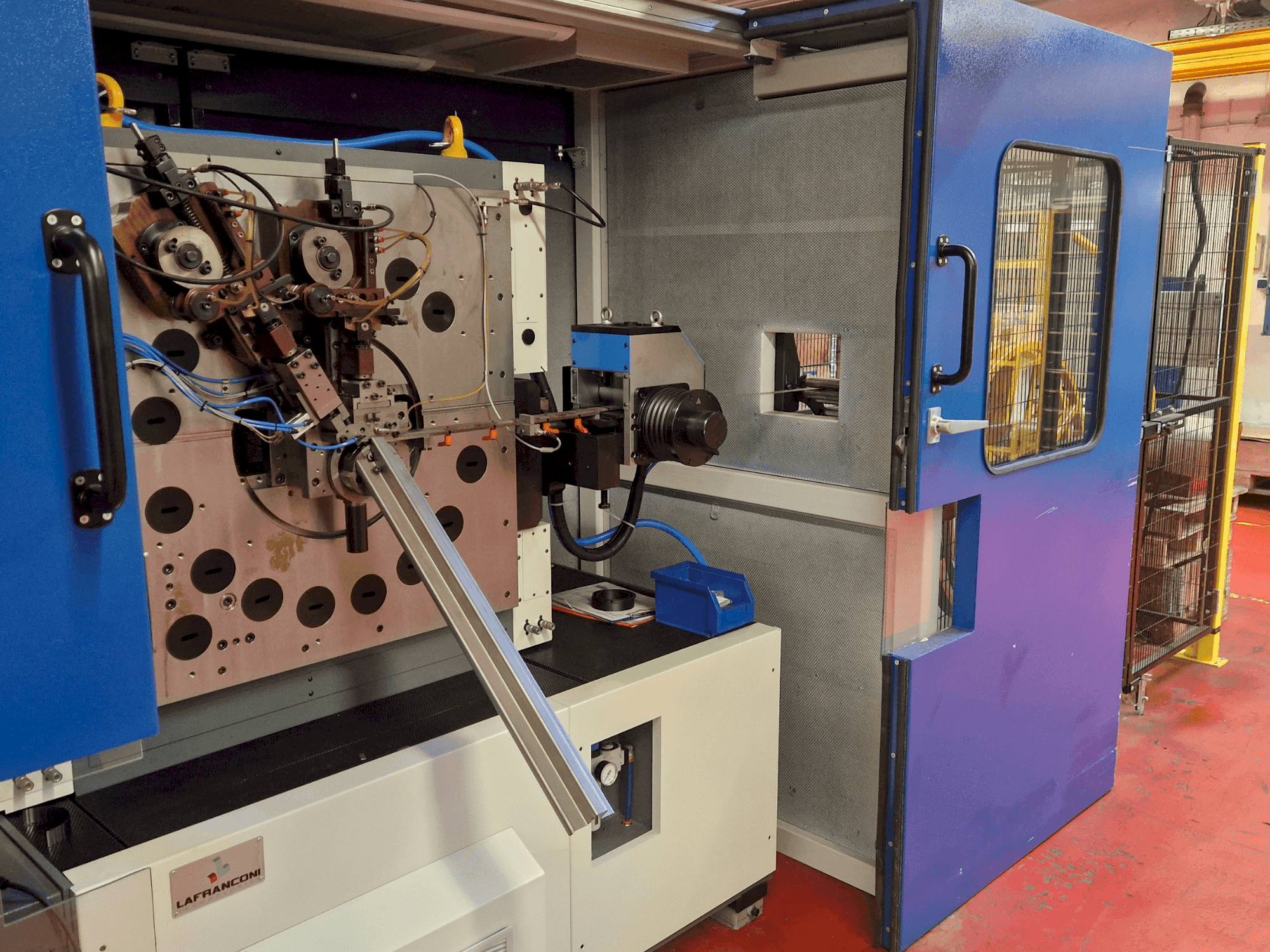

This LAFRANCONI LM 400 die bending machine was manufactured in 2020. It features a NC roller feeder, a max stroke rate of 350 1/min, and a material width capacity of 60 mm. The machine operates with a 20 KN center ram force and a 45 mm stroke. Powered by a 10.6 kW asynchronous spindle motor, it adjusts from 20 to 350 rpm. Dimensions are approximately 2450×1300×1900 mm. Contact us for more information about this machine.

Overview

brand: LAFRANCONI
year: 2020
MODEL: LM 400
application type: Bending
Location: Germany
machine type: Die Bending Machine
control unit brand: SIEMENS

Technical Information - LAFRANCONI LM 400

General Data

Measurements width: 1300 mm
Measurements depth: 2450 mm
Measurements height: 1900 mm

Control Unit

Brand: SIEMENS

Additional Information

Max stroke rate: 350 1/min
Max material width: 60 mm
Standard center ram force: 20 KN
Standard center ram stroke: 45 mm
Air pressure for pneumatic clutch: 6 BAR
External dimensions of the machine (WxHxD, without protective cabin): 2000×2000×900 mm
External dimensions of the control cabinet (WxHxD): 1000×2200×600 mm
Drive: Asynchronous main spindle motor 10.6 kW / 71.3 Nm @ 760 rpm
Reduction ratio: 1:5.09
Clutch: Unit brake (mechanical) / clutch (pneumatic)
Power: adjustable from 20 rpm to 350 rpm

Additional equipment

NC roller feeder (feeding length freely programmable)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
