Krauss Maffei - KME 45 XSDE-EXT-KRA-2025-00001
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Plastics Processing Machinery
- ➤ Used Krauss Maffei KME 45 XS For Sale | gindumac.com

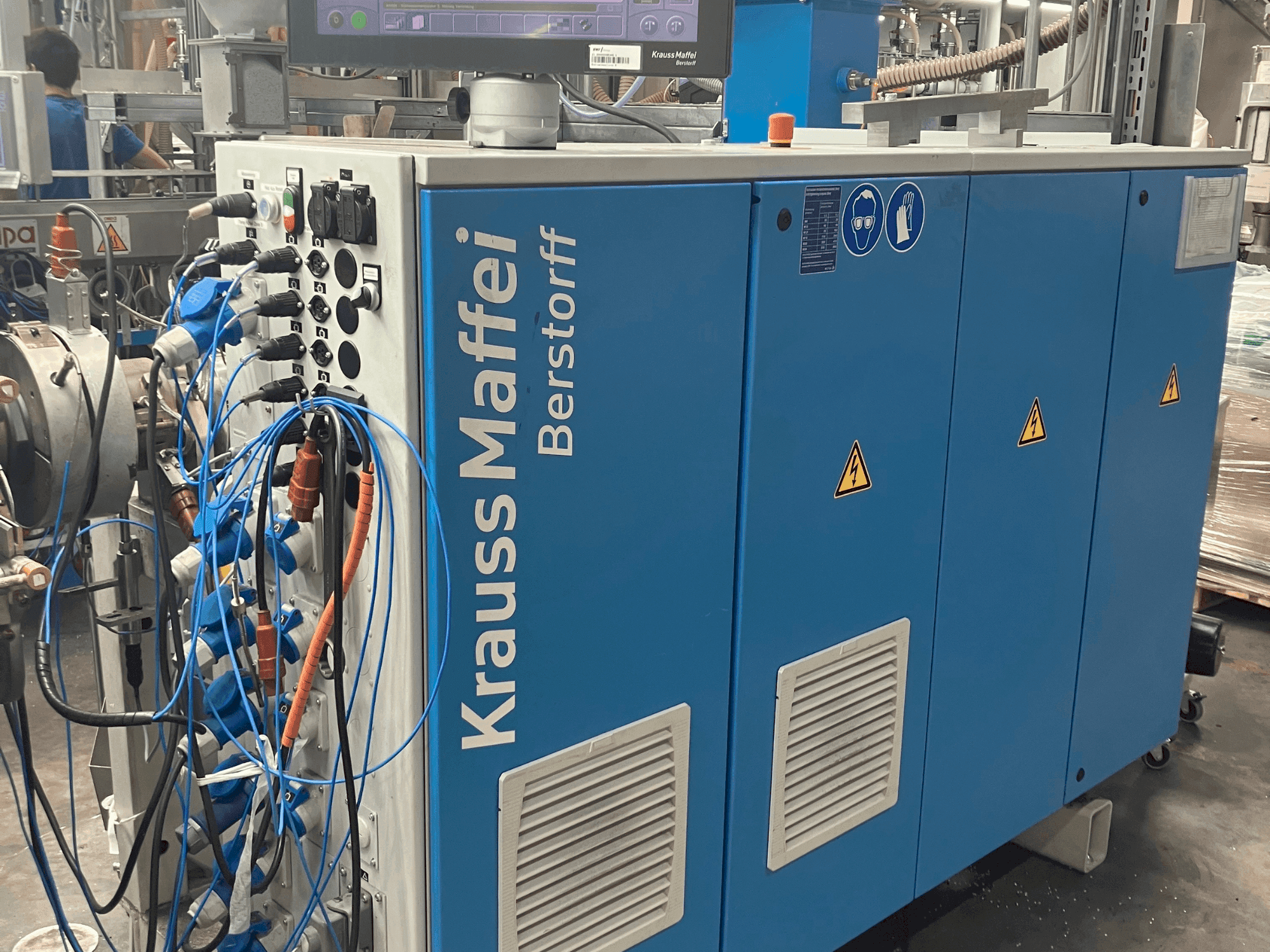

This Krauss Maffei KME 45 XS single screw extruder was manufactured in 2016. It features a 23 kW drive power, a maximum drive speed of 2486 rpm, and a screw diameter of 45 mm. The machine includes five heating/cooling zones and a maximum installed cylinder heating capacity of 10 kW. Ideal for high-quality extrusion capabilities. Contact us for more information.
Overview
- brand: Krauss Maffei
- year: 2016
- MODEL: KME 45 XS
- application type: Extrusion
- Location: Germany
- machine type: Single Screw Extruder
Technical Information - Krauss Maffei KME 45 XS
Dimensions
- Machine Weight: 1100 kg
Additional Information
Main drive:
Rated power: 23 kW
Gear ratio: 1:12.4
Screw:
Diameter: 45 mm
Length: 1350 mm
Speed range: 20–200 rpm
Cylinder:
Heating/cooling zones: 5
Max. air flow with fan cooling: 5 × 630 m³/h
Max. installed cylinder heating capacity: 10 kW
Dimensions and weight:
Extrusion height: 1000 mm
Length including adapter: 2120 mm
Width including control panel: 1125 mm
Height including dosing unit and hopper: 1960 mm
Net weight including control cabinet: approx. 1100 kg
Connection data:
Cooling water requirement: approx. 0.6 m³/h
Tool heating zones (number/power):
Pipe extrusion: 4 × 10 kW
Profile extrusion: 5 × 3.6 kW
Max. total connected load:
Pipe extrusion: 90 kW
Profile extrusion: 76 kW
Material feed:
Hopper volume: 0.1 m³
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
