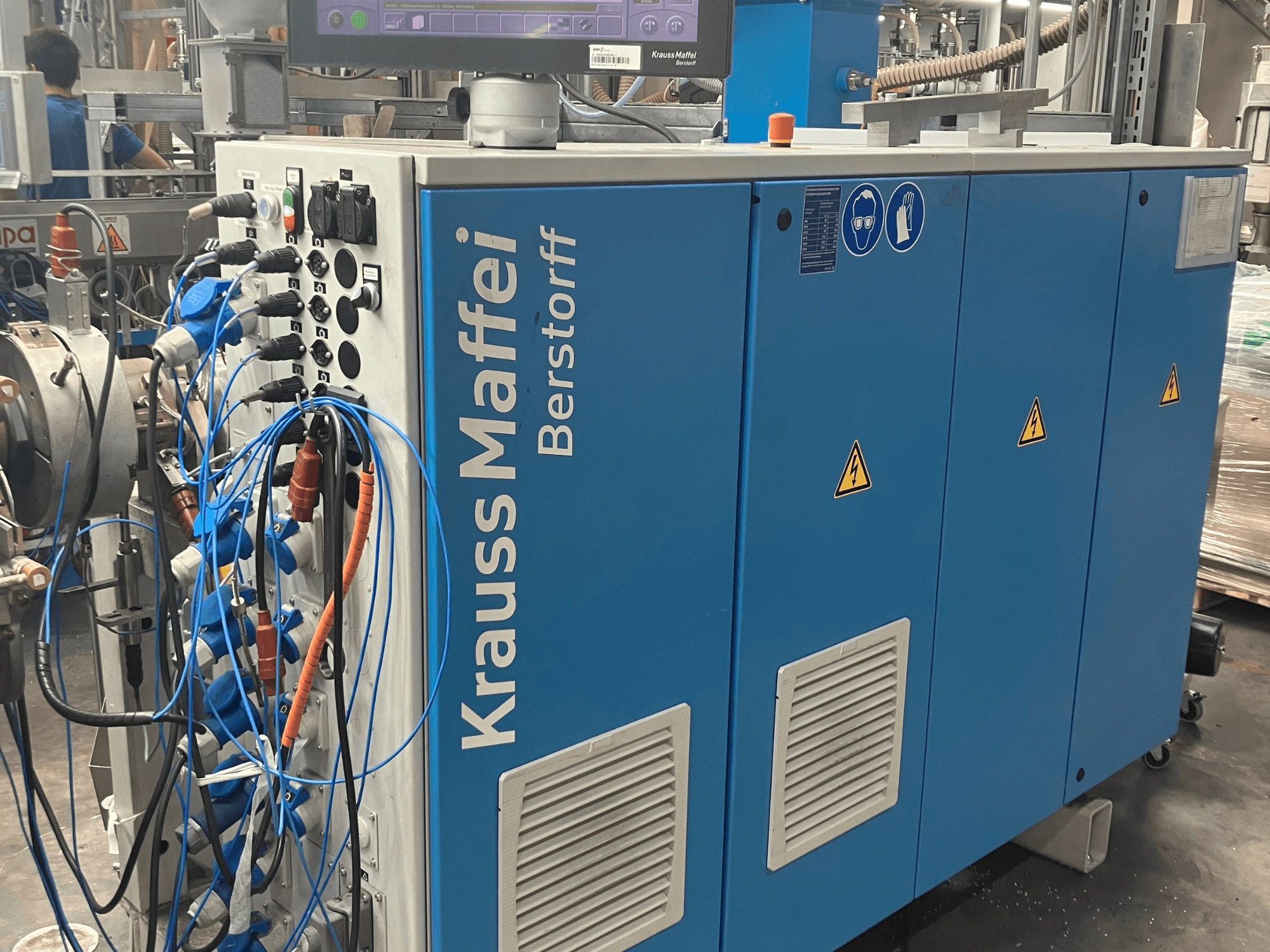

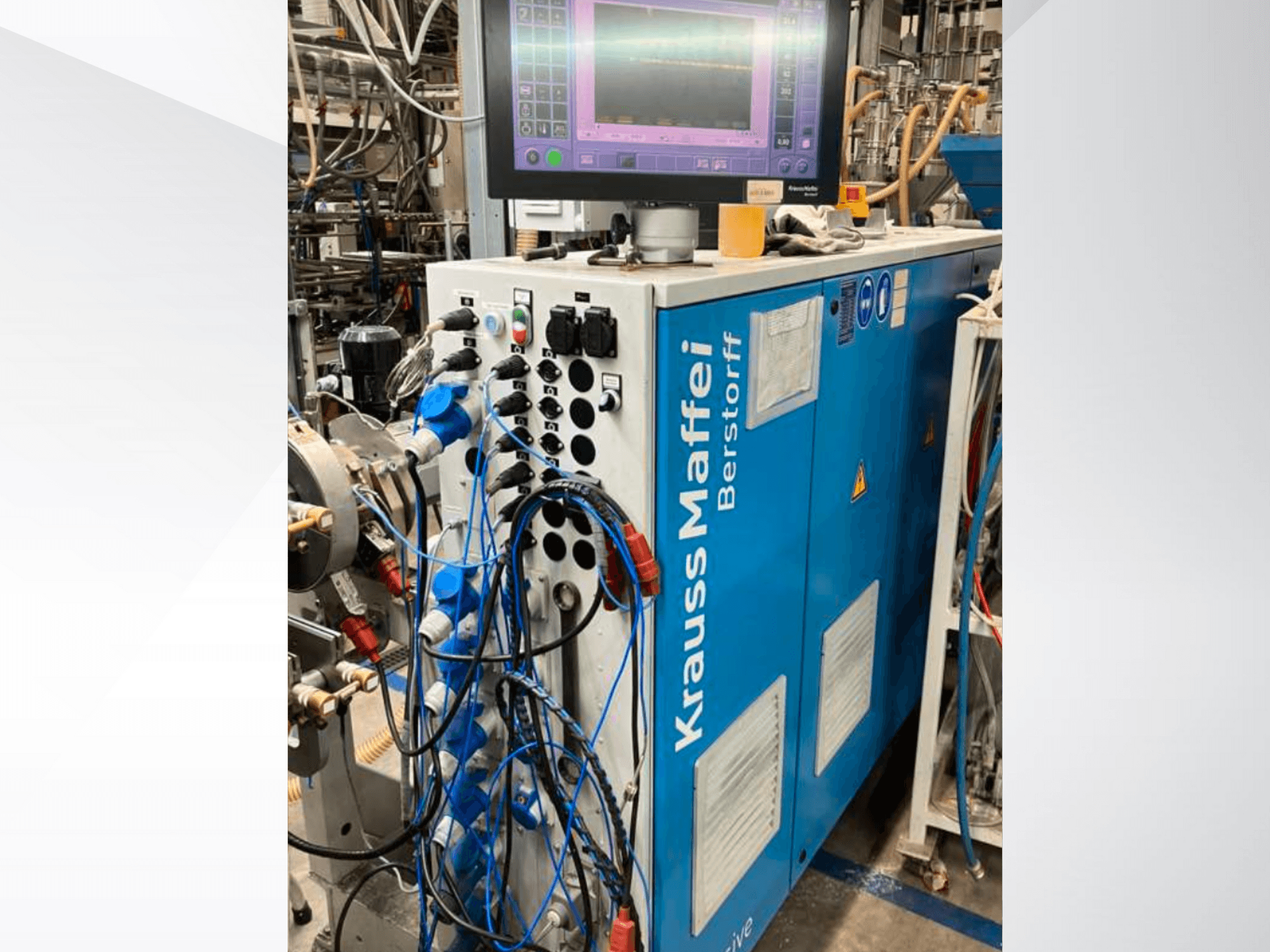

Krauss Maffei Berstorff industrial machine with control panel and monitor, featuring various buttons and connected hoses, side view.
Krauss Maffei Berstorff industrial machine with control panel and monitor, featuring various buttons and connected hoses, side view.

Krauss Maffei - KME 45 XSDE-EXT-KRA-2016-00002

Rs. 2,003,864
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Krauss Maffei KME 45 XS single screw extruder was manufactured in 2016. It features a screw diameter of 45 mm and a length of 1350 mm, with a drive power of 23 kW and a maximum speed of 2486 rpm. The machine includes five heating/cooling zones and can handle a maximum air flow of 5 × 630 m³/h. If you are looking to get high quality extrusion capabilities consider the Krauss Maffei KME 45 XS machine we have for sale. Contact us for more information.

Overview

  • brand: Krauss Maffei
  • year: 2016
  • MODEL: KME 45 XS
  • application type: Extrusion
  • Location: Germany
  • machine type: Single Screw Extruder

Technical Information - Krauss Maffei KME 45 XS

Dimensions

  • Machine Height: 1960 mm
  • Machine Length: 2120 mm
  • Machine Weight: 1100 kg

Technical Specification

  • Screw Diameter: 45 mm

Additional Information

  • Main drive

    • Rated power: 23 kW

    • Max drive speed: 2486 rpm

    • Gear ratio: 1:12.4

  • Screw

    • Length: 1350 mm

    • Speed range: 20–200 rpm

  • Cylinder

    • Heating/cooling zones: 5

    • Max air flow with fan cooling: 5 × 630 m³/h

    • Max installed cylinder heating capacity: 10 kW

  • Dimensions and weight

    • Extrusion height: 1000 mm

    • Width (incl. control panel): 1125 mm

  • Connection data

    • Cooling water requirement: approx. 0.6 m³/h

    • Tool heating zones:

      • Pipe extrusion: 4 × 10 kW

      • Profile extrusion: 5 × 3.6 kW

    • Max total connected load:

      • Pipe extrusion: 90 kW

      • Profile extrusion: 76 kW

  • Material feed

    • Hopper volume: 0.1 m³

The original motor was chnaged in 2023 to get more torque on the screw. The exchange was done by Krauss Maffei.

What changes is the maximum rotation from 197 Revolutions to 120 Revolutions

New motor nameplate attached in the offer.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
