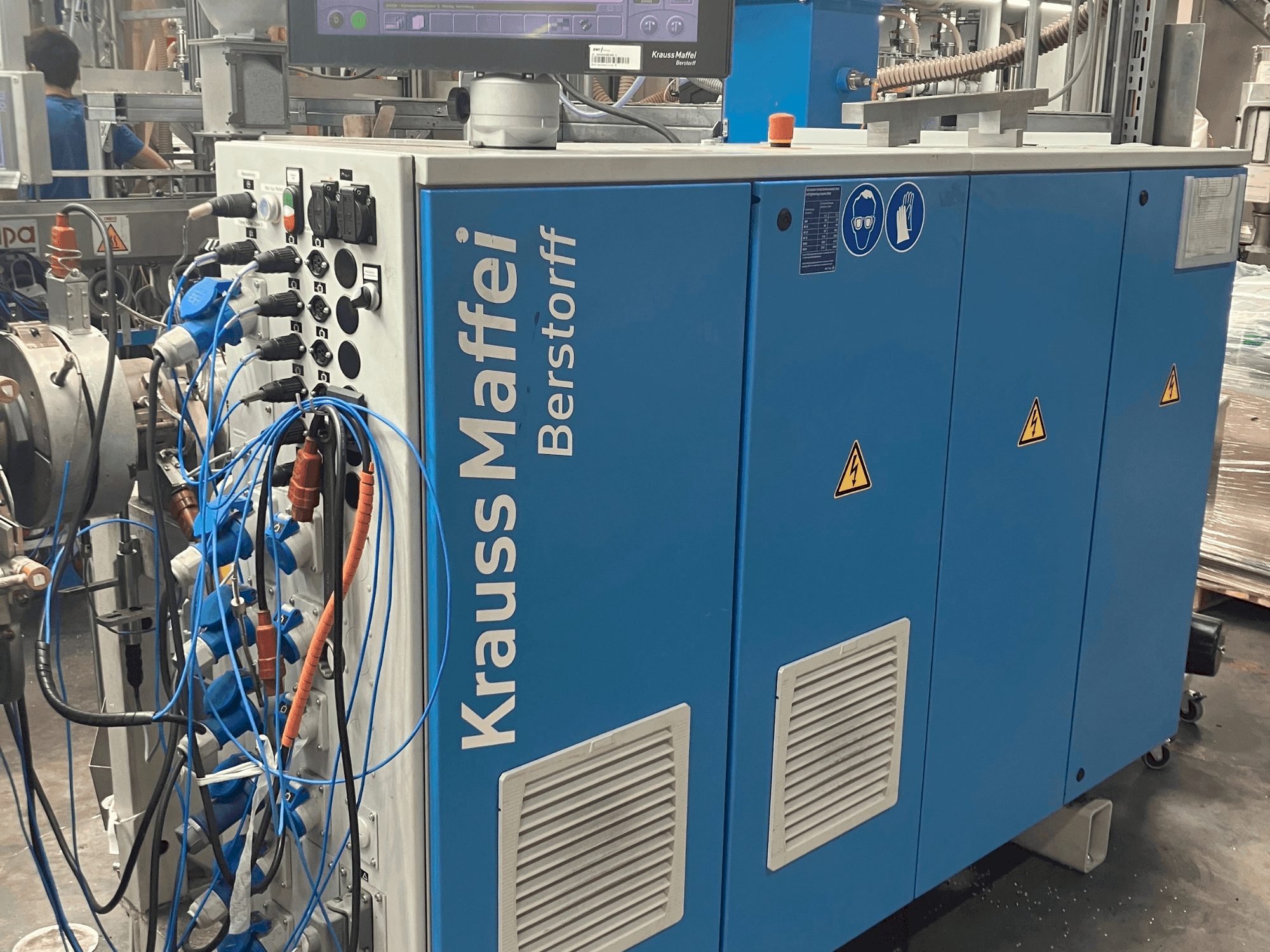

This Krauss Maffei KME 45 XS was manufactured in 2014. It features a screw diameter of 45 mm and a length of 1350 mm, operating between 20-200 rpm. The machine includes five heating/cooling zones and a hopper volume of 0.1 m³. Ideal for those looking to enhance their extrusion capabilities. Contact us for more information about this machine.
Overview
- brand: Krauss Maffei
- year: 2014
- MODEL: KME 45 XS
- application type: Extrusion
- Location: Germany
- machine type: Single Screw Extruder
Technical Information - Krauss Maffei KME 45 XS
Dimensions
- Machine Depth: 2120 mm
- Machine Height: 1960 mm
- Machine Weight: 1100 kg
Technical Specification
- Screw Diameter: 45 mm
Additional Information
Additional Equipment
Extrusion height: 1000 mm
Hopper volume: 0.1 m³
Extra information
Gear ratio: 1:12.4
Screw Length: 1350 mm
Injection Unit Min./max. speed: 20 – 200 rpm
Number of heating/cooling zones: 5
Max. air flow with fan cooling: 3150 m³/h
Max. installed heating capacity of the cylinder: 10 kW
Extruder cooling water requirement: approx. 0.6 m³/h
Pipe extrusion: 4 zones × 10 kW
Profile extrusion: 5 zones × 3.6 kW
Pipe extrusion: 90 kW
Profile extrusion: 76 kW
KM C5 control
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
