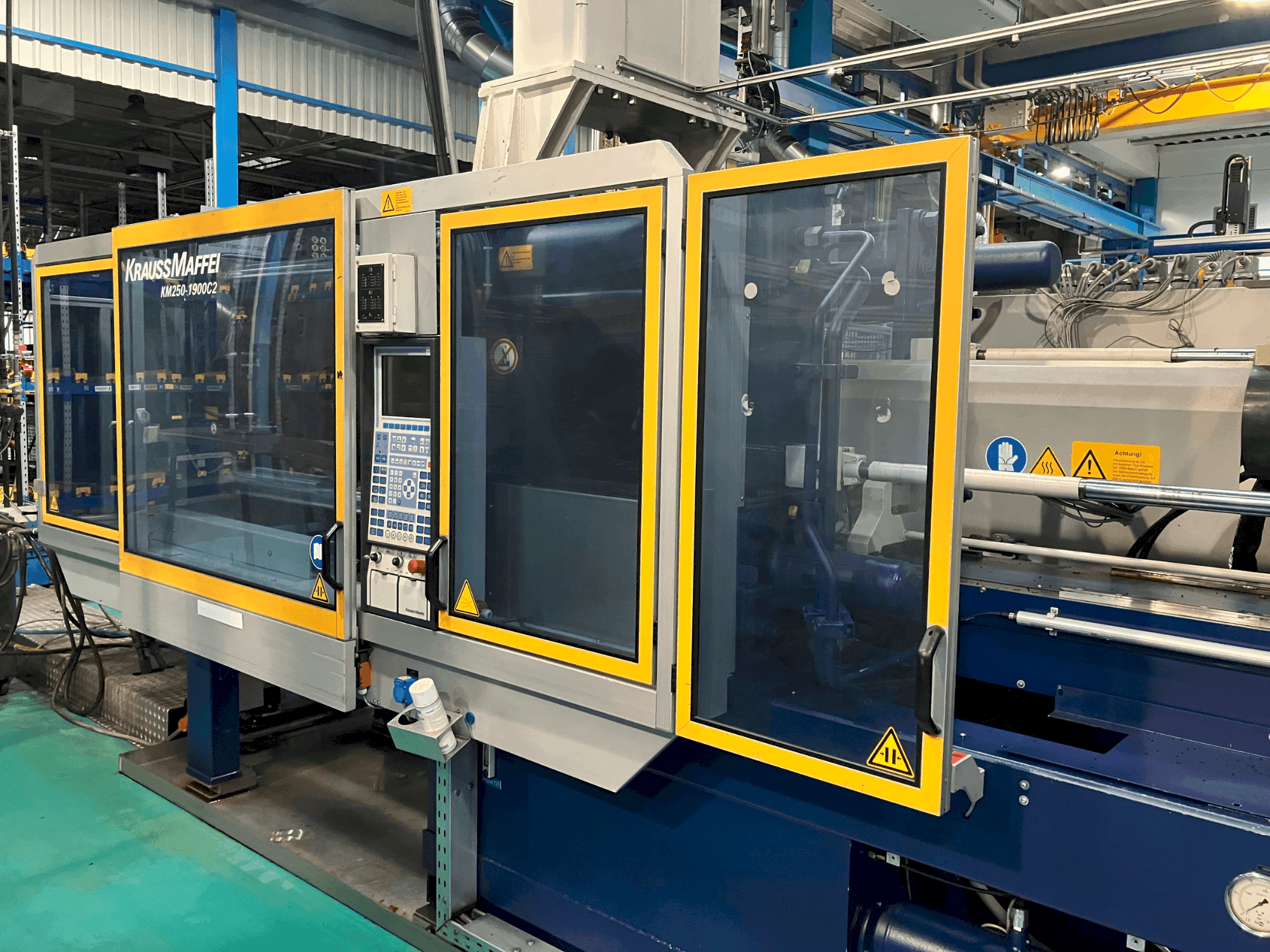

This Krauss Maffei 250-1900 C2 was manufactured in 2005. It features a hydraulic system with a maximum closing force of 2500 kN and a screw diameter of 60 mm. The machine includes a Sepro-Robot for efficient removal and is equipped with an MC-4 control system. Consider the opportunity to buy this Krauss Maffei 250-1900 C2 hydraulic injection moulding machine. Contact us for more information about this machine.
Overview
- brand: Krauss Maffei
- year: 2005
- MODEL: 250-1900 C2
- production hours: 51000
- application type: Injection Moulding
- Location: Germany
- machine type: Hydraulic Injection Moulding Machine
- availability: Immediately
- control unit brand: KRAUSS MAFFEI
Technical Information - Krauss Maffei 250-1900 C2
Control Unit
- Brand: KRAUSS MAFFEI
- Model: MC-4
Injection Unit
- Screw diameter: 60 mm
- Stroke volume: 769 cm CM³
- Injection pressure: 2420 bar
Clamping unit
- Clamping force: 2500 kN
- Opening stroke: 820 mm
- Distance between bars: 630 mm
Additional equipment
- - Removal Device: Sepro-Robot
- - Optional: Sepro extraction system + granulate supply (dehumidifier, granulate dryer, octomat station, etc.)
Additional Information
- Technical Machine Benefits:
- - Max. Possible parts volume (ccm): 700
- - Machine type: hydraulic
- - Min. Tool installation height (mm): 580
- - Distance between platens (mm): 1400
- - Clamping platen size (lxw) (mm): 1050x995
- - Centering ring diameter (mm): ds 160 / aws160
- - Ghost shift capable: yes
- - Thread in Ejector Plate (Wkzg): M 20 x 1.5 Bore in Clamping Plate (Vehicle): d = 50mm Ejector Adapter Front Coupling: 215mm Internal Pressure Sensor: Priamus Heating > Control: 230V Heating > Number of Control Points: 12 Water Circuits: DS 6 / AWS 6
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
