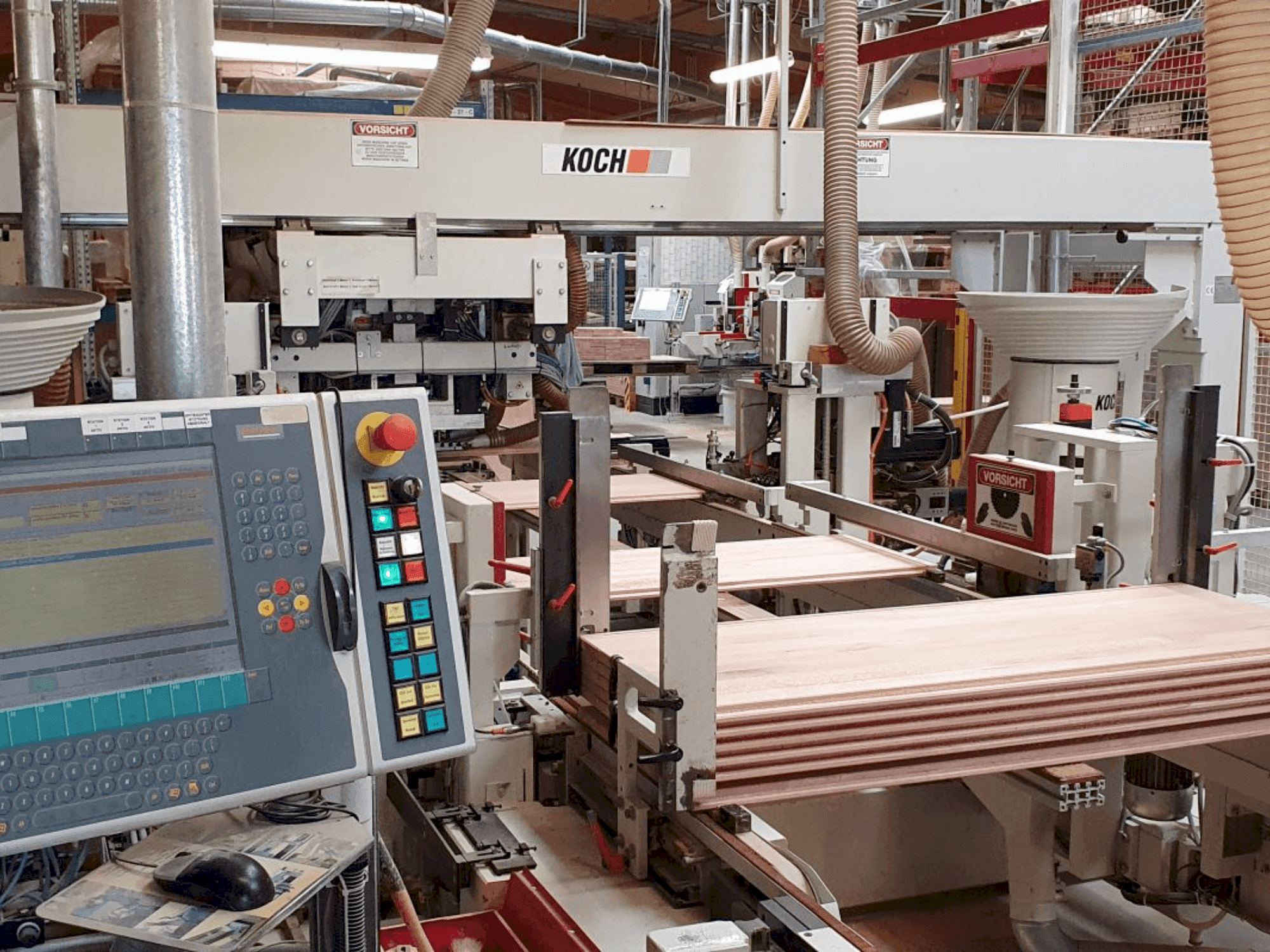

Front view of KOCH SBD-60-PTP  machine

KOCH - SBD-60-PTPDE-WOO-KOC-2003-00001

Rs. 6,244,350
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Alessandro Martini

+49 162 585 84 48

Click to chat on WhatsApp
Show in original language

This double-sided cutting, drilling and dowel inserting machine was manufactured in 2003. It features a robust double-sided cutting, drilling, and dowel inserting system, ideal for handling workpieces ranging from 140 to 2500 mm in length and 12 to 55 mm in thickness. Equipped with a sawing station and two vertical drilling heads, each with 28 spindles, it ensures high precision and efficiency. For more information about this woodworking machine, please reach out to us.


  • brand: KOCH
  • year: 2003
  • application type: Wood Working
  • Location: Germany
  • machine type: Wood
  • availability: Immediately

Technical Information - KOCH SBD-60-PTP

    Additional equipment

    • - Sawing unit with NC axis in Y direction.
    • - 5 horizontal drilling spindles, each capable of single jumping.
    • - Dowel inserting device for dowels 10 x 40 mm, with electronic glue control ELC.
    • - 2 vertical drilling heads, each with 28 spindles.
    • - 2 horizontal drilling spindles for length side drilling on the front and rear side.
    • - 1 grooving saw, 0/90° swivable.
    • - 2 workpiece center supports with automatic move down, NC controlled in X direction.

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Double-sided cutting, drilling, and dowel inserting machine
        • - Comprehensive capabilities for cutting, drilling, and dowel inserting, enhancing productivity and versatility in woodworking operations.
        • - Nc control for precise adjustments in width, height, and positioning, ensuring high accuracy and repeatability.
        • - Frequency-controlled sawblade jump and brass guide for tear-free cuts.
        • - Workpiece dimensions: length 140 – 2500 mm, width 40 – 550 mm (using magazine), 600 mm (without magazine), thickness 12 – 55 mm.
        • - Sawing station accommodates workpieces up to 560 mm in width.
      • Qualitative Machine Benefits:
        • - High precision and efficiency in processing due to advanced nc control and specialized drilling and cutting units.
        • - Enhanced product quality with precise dowel insertion and glue control.

      Extra information

      • - Machine still under power.

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
