- ➤ Used KIHEUNG KNC-U1000 For Sale | gindumac.com

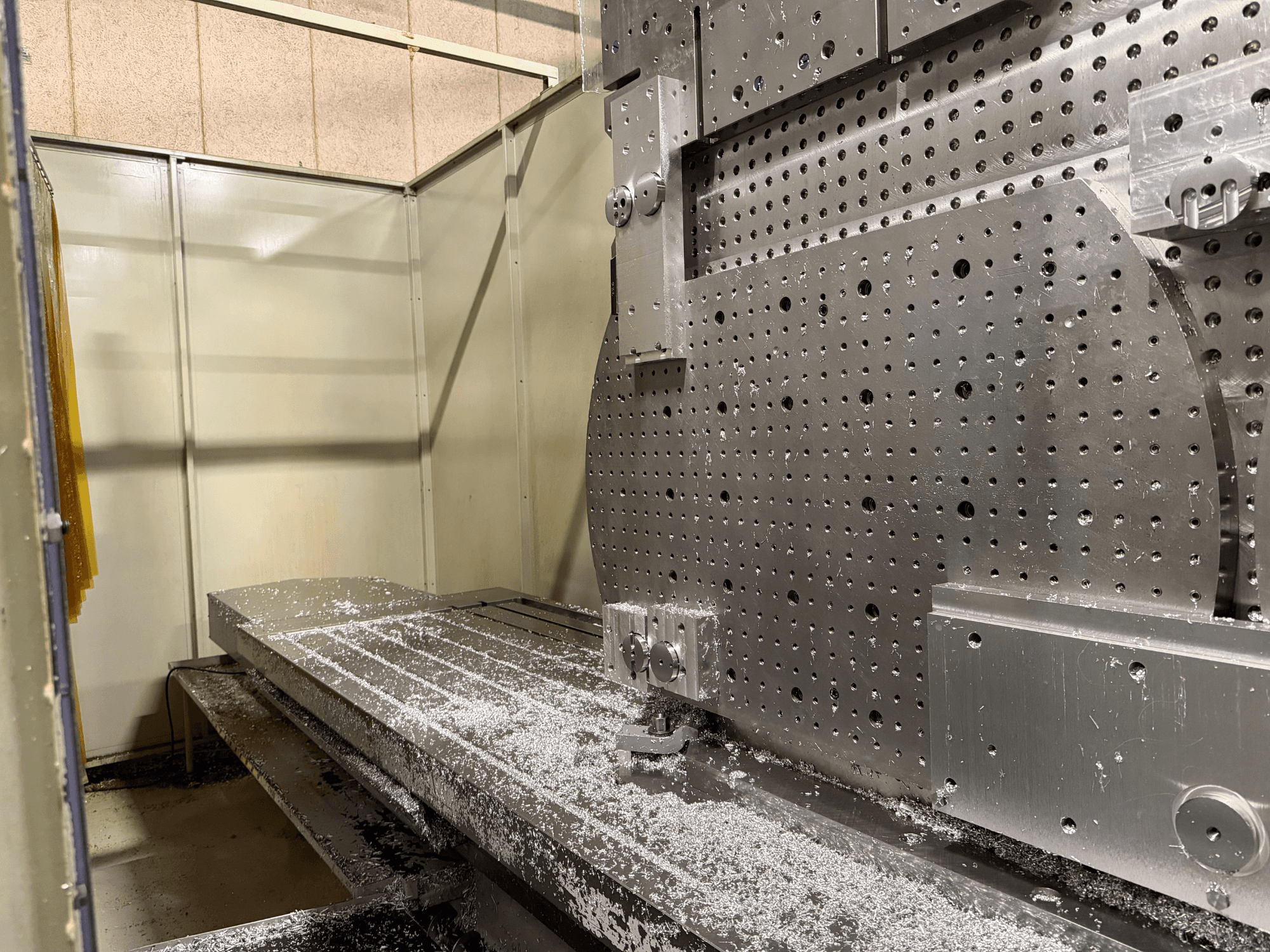

This 3-axis KIHEUNG KNC-U1000 was manufactured in 2007. It features a spindle speed of 4000 rpm and an ISO50 taper. The machine is equipped with a 40-tool automatic tool changer and coolant through the spindle for enhanced efficiency. If you are looking to get high-quality machining capabilities, consider the KIHEUNG KNC-U1000 ed type milling machine we have for sale. Contact us for further details.
Overview
- brand: KIHEUNG
- year: 2007
- MODEL: KNC-U1000
- production hours: 17000
- application type: Milling
- Location: Denmark
- machine type: Bed Type Milling Machine
- control unit brand: HEIDENHAIN
Technical Information - KIHEUNG KNC-U1000
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: 530
Dimensions
- Machine Height: 4215 mm
- Machine Length: 12635 mm
- Machine Weight: 32000 kg
- Table Length: 4500 mm
- Table Load: 13000 kg
- Table Width: 1050 mm
Movement
- Number of Axes: 3
- X-axis Travel: 4500 mm
- Y-axis Travel: 1250 mm
- Z-axis Travel: 2000 mm
Technical Specification
- Spindle Speed: 4000 RPM
- Taper Size: ISO 50
Additional Information
2.5° head
Coolant through spindle
40 tools in ATC
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
