This 3-axis KEYENCE IM-8030 was manufactured in 2023. It features a measurement field of 300 x 200 mm and an advanced 20-megapixel monochrome CMOS image sensor. The system includes a 12.1" LCD monitor for clear display and offers electric XY stage movement of 200 x 100 mm and Z stage movement of 75 mm. If you are looking to get high-quality measurement capabilities, consider the KEYENCE IM-8030 Optical Measuing Machine we have for sale. Contact us for further details.
Overview
- brand: KEYENCE
- year: 2023
- MODEL: IM-8030
- application type: Measuring
- Location: Germany
- machine type: Optical Measurement Machine
Technical Information - KEYENCE IM-8030
Dimensions
- Machine Weight: 32 kg
Movement
- Number of Axes: 3
Additional Information
Measurement field: 300 x 200 mm
Image sensor: 1" 20-megapixel monochrome CMOS
Display: 12.1" LCD monitor (WXGA: 1280 x 800)
Measurement accuracy (wide-field): ±3.9 μm (without binding), ±(7 + 0.02 L) μm (with binding)
Measurement accuracy (high-precision): ±2 μm (without binding), ±(4 + 0.02 L) μm (with binding)
XY stage movement: 200 x 100 mm (electric)
Z stage movement: 75 mm (electric)
Max stage load: 7.5 kg

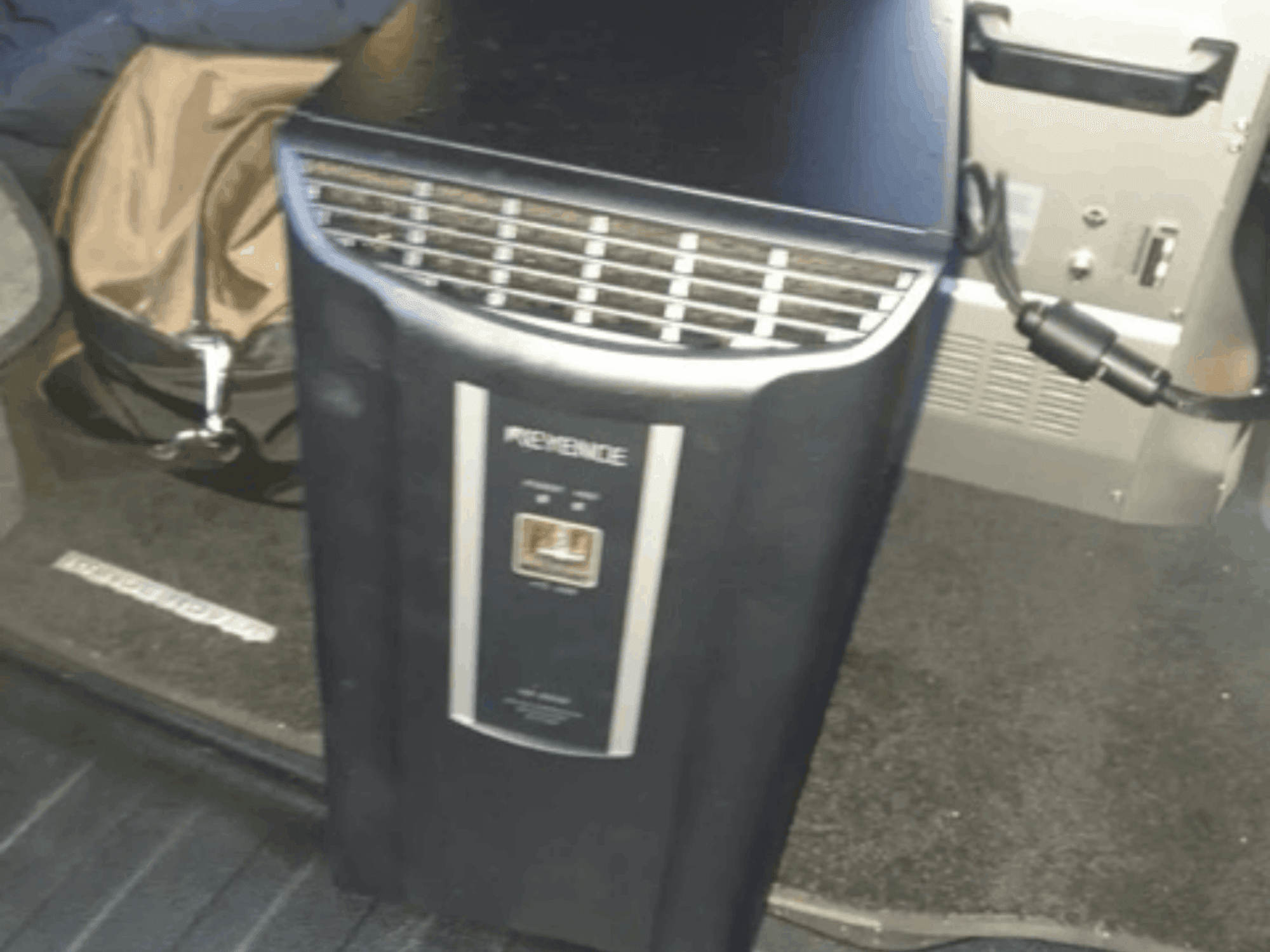

Net weight: Measuring head 32.00 kg; Control unit 8.00 kg
Connectivity: LAN (RJ-45), USB 3.1 (4x), USB 2.0 (4x), DVI-D output
Power supply: 100–240 VAC ±10%, 50/60 Hz
Customs tariff number: 90314910000
Additional equipment
IM-M80D set: Mouse, keyboard, German user manual
OP-99031: AC power cable
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
