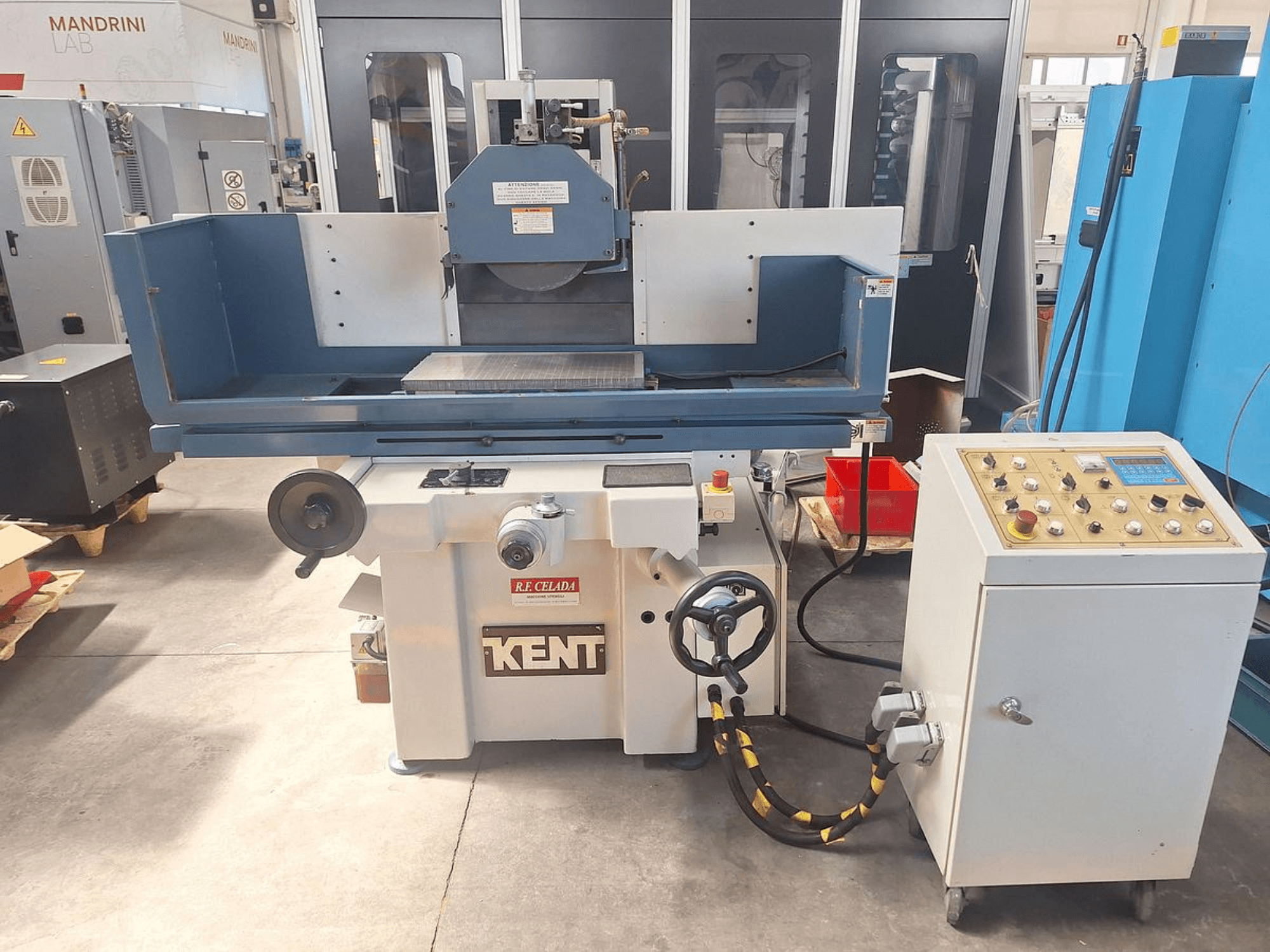

This 3-axis Kent KGS-63 SD surface grinding machine was manufactured in 1996. It features a grinding wheel dimension of 355 × 38 × 127 mm and a grinding wheel speed of 1,450 rpm. The machine offers a longitudinal travel of 710 mm and a cross travel of 340 mm, along with a robust table size of 650 × 300 mm. If you are looking to get high-quality grinding capabilities, consider the Kent KGS-63 SD machine we have for sale. Contact us for further details.
Overview
- brand: Kent
- year: 1996
- MODEL: KGS-63 SD
- application type: Grinding
- Location: Italy
- machine type: Surface Grinding Machine
Technical Information - Kent KGS-63 SD
Dimensions
- Machine Height: 1830 mm
- Machine Length: 2500 mm
- Machine Weight: 1750 kg
- Table Width: 3770 mm
Movement
- Number of Axes: 3
- X-axis Travel: 710 mm
- Y-axis Travel: 340 mm
Technical Specification
- Spindle Speed: 1450 RPM
Additional Information
E_(Distance_table/ram): 540 mm
Outer length: 650 mm
Outer width: 300 mm
Magnetic table: Magnetic chuck
Table load: 250 kg
Backlash: 0.002 mm
Grinding wheel dimensions: 355 × 38 × 127 mm
Cross and vertical feed increment: 0.002 mm
Several additional grinding wheels included in a separate storage container
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
