- ➤ Used Kawasaki BA006L-A - Robot For Sale | gindumac.com

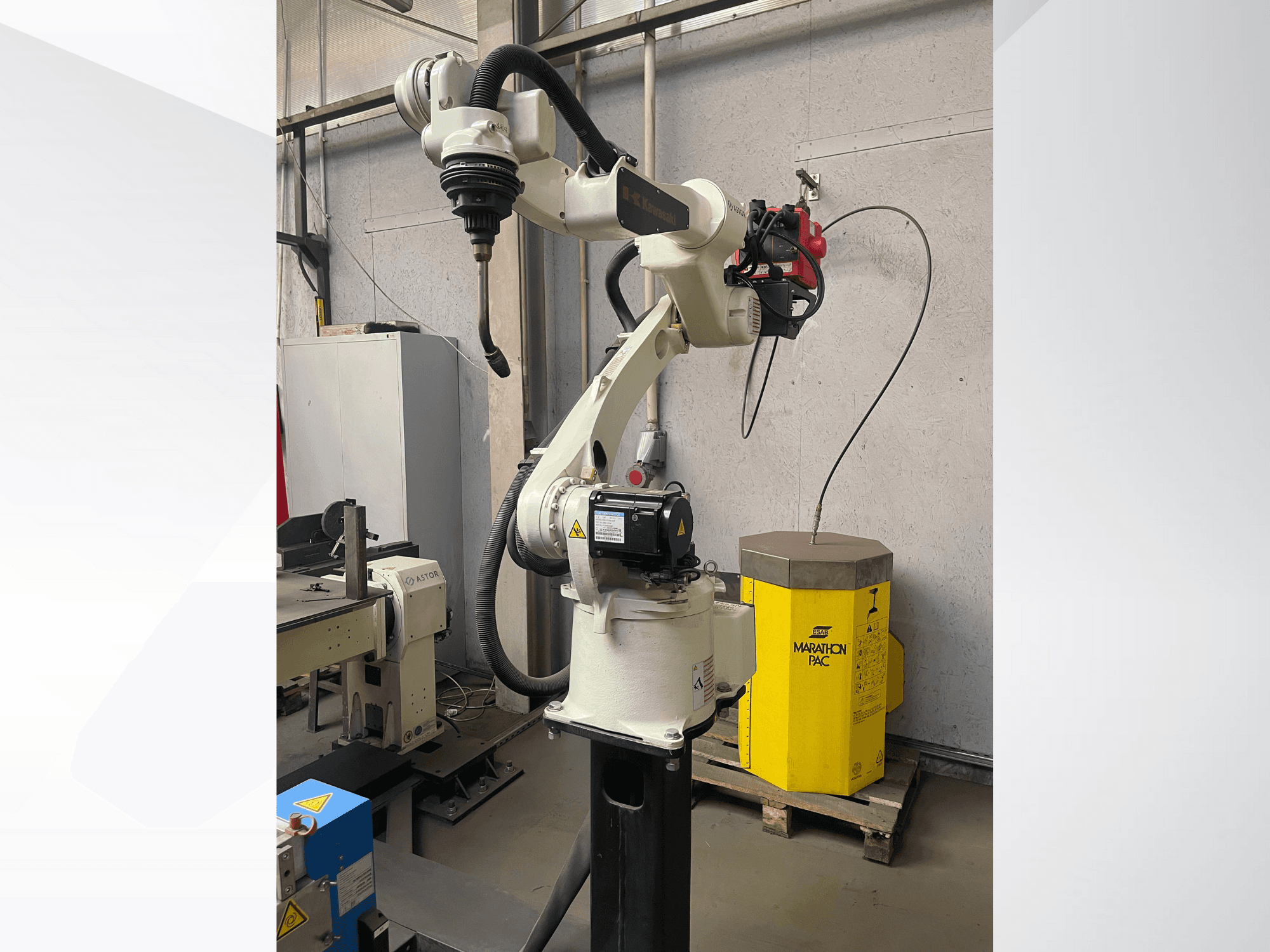

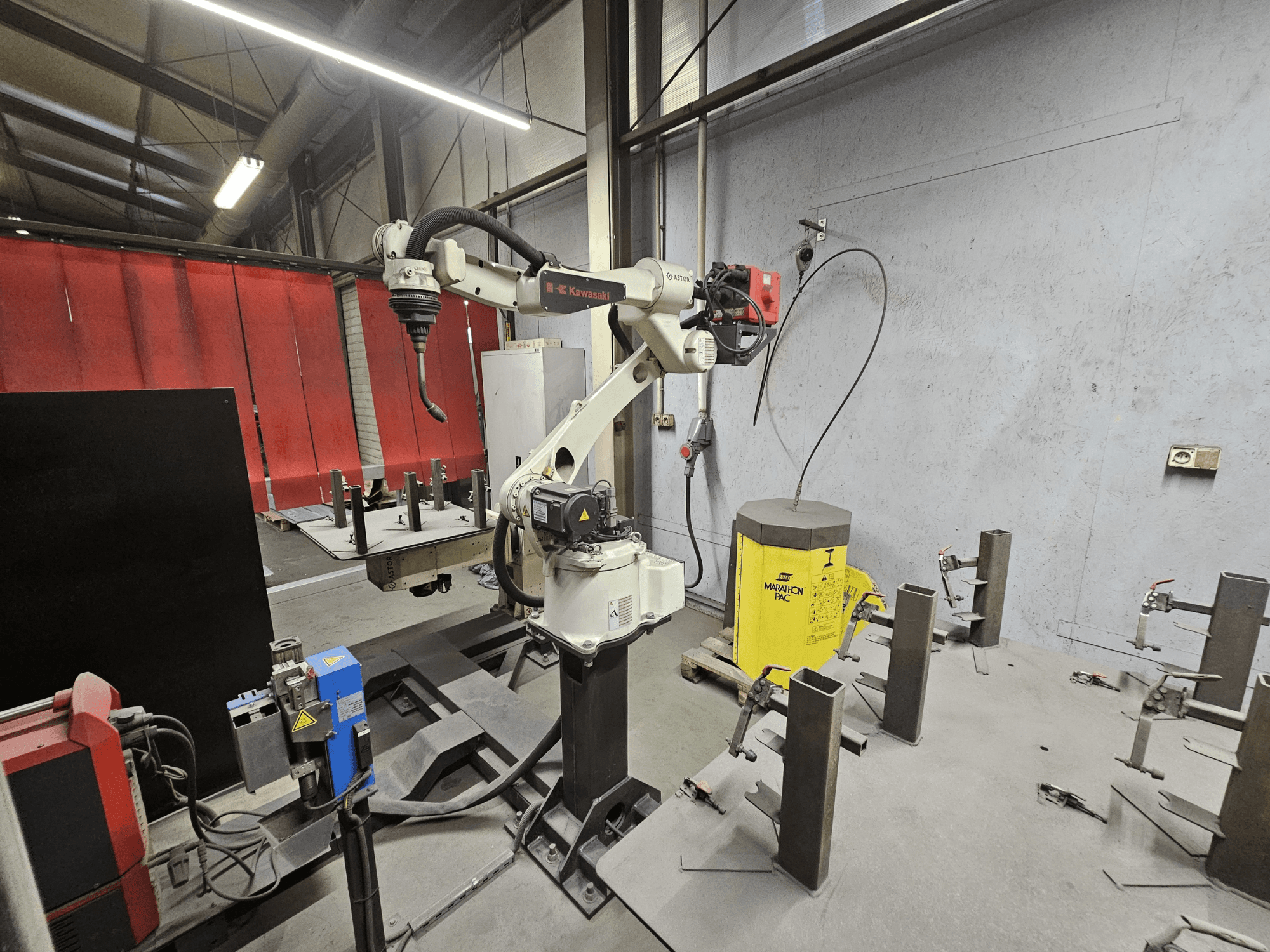

This 6-axis Kawasaki BA006L-A welding robot was manufactured in 2020. It features a high-performance Fronius power source and a two-axis positioner, housed in a safety-compliant enclosure for operator protection and process stability. The robot offers a maximum payload of 6 kg and a reach of 2036 mm, ideal for precise and automated MIG/MAG welding tasks. If you are looking to get high quality welding capabilities consider the Kawasaki BA006L-A machine we have for sale. Contact us for more information.
Overview
- brand: Kawasaki
- year: 2020
- MODEL: BA006L-A
- application type: Welding
- Location: Poland
- machine type: Welding Robot
Additional Information
Maximum payload: 6 kg
Maximum reach: 2036 mm
Axis Working Ranges:
JT1: ±165°
JT2: +150° / –90°
JT3: +90° / –175°
JT4: ±180°
JT5: ±135°
JT6: ±360°
Axis Speeds:
JT1: 210°/s
JT2: 210°/s
JT3: 220°/s
JT4: 430°/s
JT5: 430°/s
JT6: 650°/s
Repeatability: ±0.08 mm
Maximum load capacity: 250 kg
Loading height: 708 mm
Maximum tool radius: 565 mm
Repeatability: ±0.05 mm
Mounting options: Floor / ceiling
Mounting: Floor
Ambient temperature: 0–45°C
Relative humidity: 35–85%
Emergency stop time: 0.5 s
Cooling: Water-cooled
All components are housed inside a closed, ventilated, safety-compliant enclosure, ensuring reliability, operator protection, and process stability.
System includes a high-performance power source, positioner, and complete wire-feeding and cooling systems.
Protection class: IP23
Supply voltage: 3 × 400 V
Frequency: 50–60 Hz
Max welding current: 400 A
Min welding current: 3 A
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
