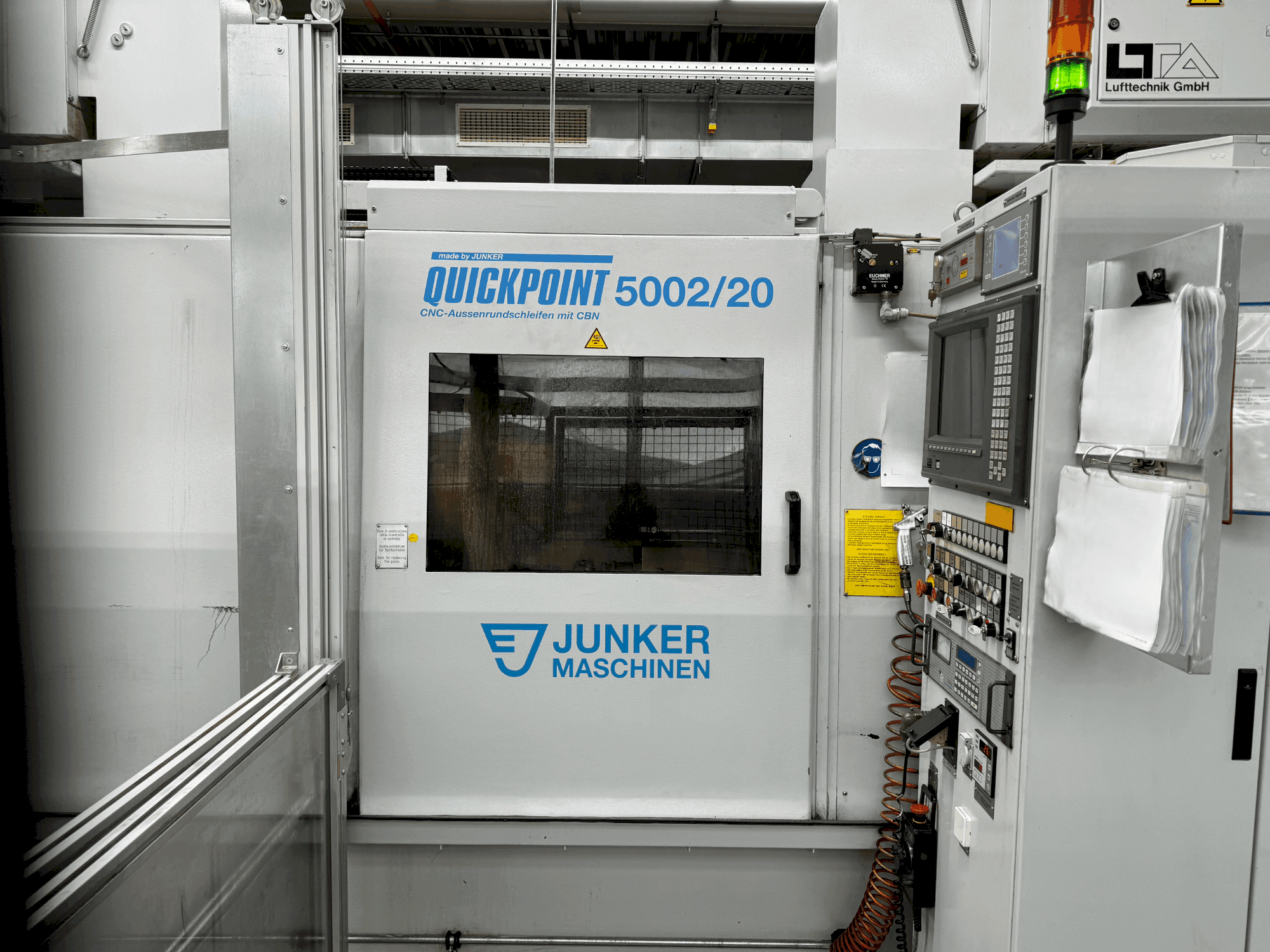

Front view of JUNKER Quickpoint 5002/20  machine

JUNKER Quickpoint 5002/20

JUNKER - Quickpoint 5002/20

2000

Rs. 2,411,900

gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This JUNKER Quickpoint 5002/20 Cylindrical Grinding Machine was manufactured in the year 2000 in Germany. It has a grinding diameter of 280 mm and a grinding length of 900 mm. Equipped with a travel z-axis of 900 mm it can handle a max. workpiece weight of 30 kg. As control unit it has a FANUC 15-TB control. It comes with 2x extraction units (made by LTA) and an oil filter system (built in-house). The machine is currently used as part of a robot line and will be sold because of replacement by a new machine. See photo and video gallery for more impressions.

Overview

  • brand: JUNKER
  • year: 2000
  • MODEL: Quickpoint 5002/20
  • application type: Grinding
  • Location: Germany
  • machine type: Grinding machines
  • availability: Immediately
  • control unit brand: FANUC
  • GINDUMAC ID: DE-GRI-JUN-2000-00001

Technical Information

General Data

  • Measurements width: approx. 5000 mm
  • Measurements depth: approx. 5000 mm
  • Measurements height: approx. 2500 mm
  • Machine weight: approx. 15000 kg

Control Unit

  • Brand: FANUC
  • Model: 15-TB

Main drive

  • Number of axis: 3

Movement

  • Z-AXIS Movement: 900 mm

Workpiece

  • Workpiece drm: 250 mm
  • Workpiece z: 900 mm
  • Workpiece weight: max. 30 kg

Tail Stock

  • Pinol diameter: 100 x 430 mm

    Additional equipment

    • - 2x extraction units (made by LTA)
    • - Oil filter system largely self-built in collecting tray, system with magnetic separator (probably only conditionally reusable, but currently functional), currently built in a cold split design with internal cooler and external condenser
    • - Replacement grinding wheels can be handed over if still available at dismantling date
    • - Further accessories, such as tips, driver systems, measuring probes etc. would also be available and could be given away

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Loading system: manual
        • - Workhead: fixed
        • - Workpiece spindle // dimension: 100 x 400 mm, permanent grease lubrication, bearing protection by compressed air, drive by servo-motos (c-axis), cone and special fixture mk4 or junker standard collar ⌀ 75mm
        • - Tailstock // manually via chain wheel, chucking pressure adjustable via hydraulic
        • - Tailstock sleeve // ⌀ 100 x 430 mm, mk 4 resp. Junker standard collar ⌀ 75 mm
        • - Grinding table // z-axis (cnc-controlled)
        • - Wheelhead // infeed: x-axis (cnc-controlled), horizontal: -6° to + 15°, b-axis (cnc-controlled), vertical: -0. 5°, 0° and +0. 5° (op swivelling)
        • - Grinding spindle // ⌀ 180 x 400 mm, flange: ⌀ 190 mm, standard collar: ⌀ 127 mm, driving power: 24 kw
        • - Grinding wheel // borazon (cbn) or diamond, diameter: ⌀ 400 mm, bore: ⌀ 127 mm, coating width: 5mm
      • Qualitative Machine Benefits:
        • - Machine always very well maintained
        • - Solid and reliable production line
        • - Quickpoint machines can be used for a wide range of applications, and at the same time boast impressive productivity
        • - Versatility and excellent workpiece quality
        • - 3 axes (x, z and b)

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
