- ➤ Used JUNKER EJ29 CNC For Sale | gindumac.com

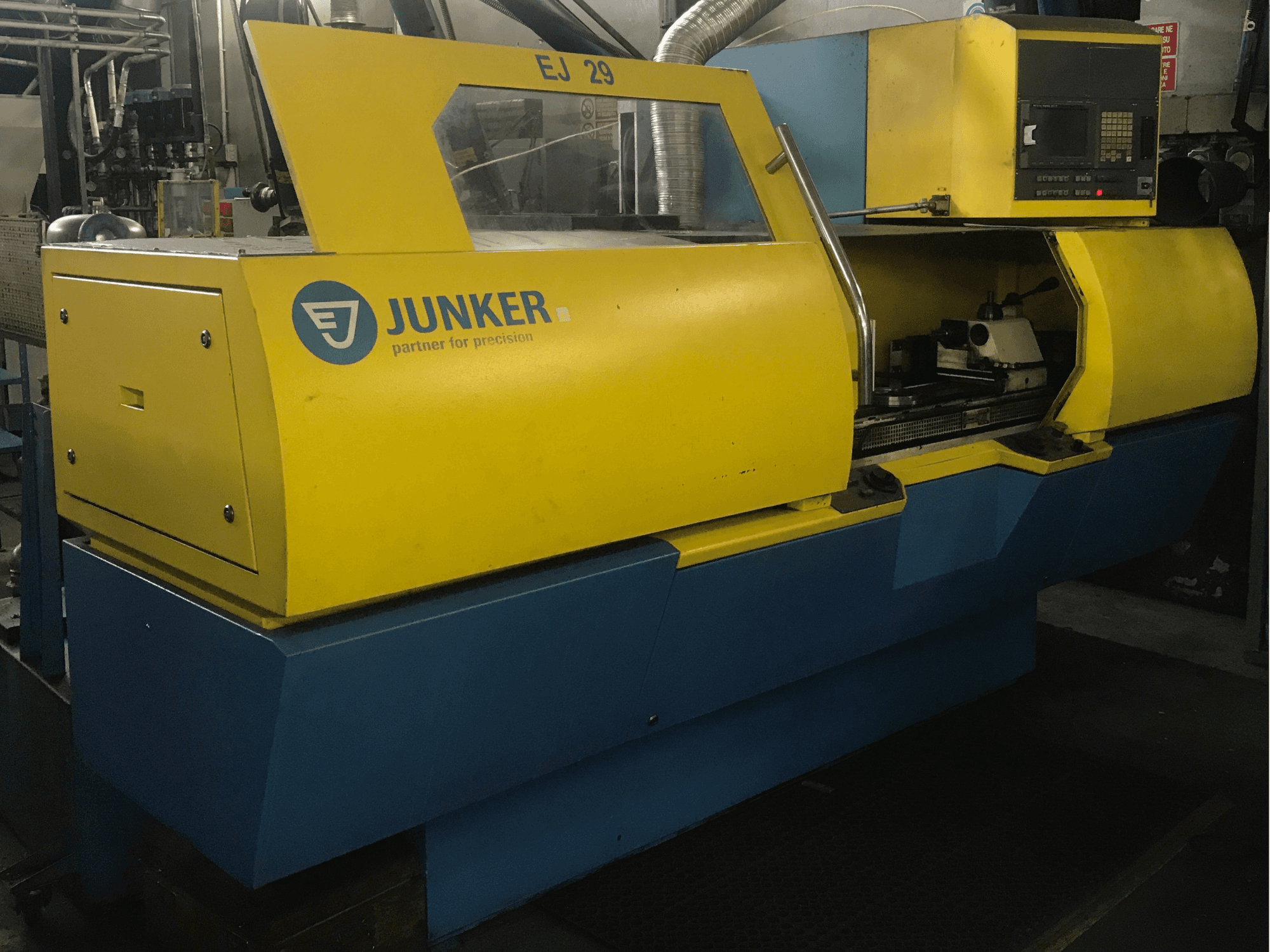

This JUNKER EJ29 CNC was manufactured in 2002. It features a FANUC 21i-TB CNC control, servo drives for spindle and table axes, and a hydraulic/manual tailstock. The machine can handle workpieces up to 280 mm in diameter and 800 mm in length, with a grinding wheel diameter of 400 mm. Consider the opportunity to buy this JUNKER EJ29 CNC cylindrical grinding machine. Contact us for more information.
Overview
- brand: JUNKER
- year: 2002
- MODEL: EJ29 CNC
- application type: Grinding
- Location: Italy
- machine type: Cylindrical Grinding Machine
Technical Information - JUNKER EJ29 CNC
Dimensions
- Machine Depth: 3340 mm
- Machine Height: 2050 mm
- Machine Weight: 5000 kg
Additional Information
Distance between centers / workable length: approx. 800 mm
Center height: approx. 180 mm
Maximum workpiece diameter: up to approx. 280 mm
Grinding wheel diameter: around 400 mm (typical for European versions)
Grinding wheel peripheral speed: approx. 45 m/s
Grinding wheel motor power: 4.5 kW
Construction/features: Servo drives (spindle and table axes), auxiliary spindle support, hydraulic/manual tailstock
Additional equipment
4 wheel hubs
1 hydraulic CM5 workholding spindle
3-micron cartridge filtration system
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
