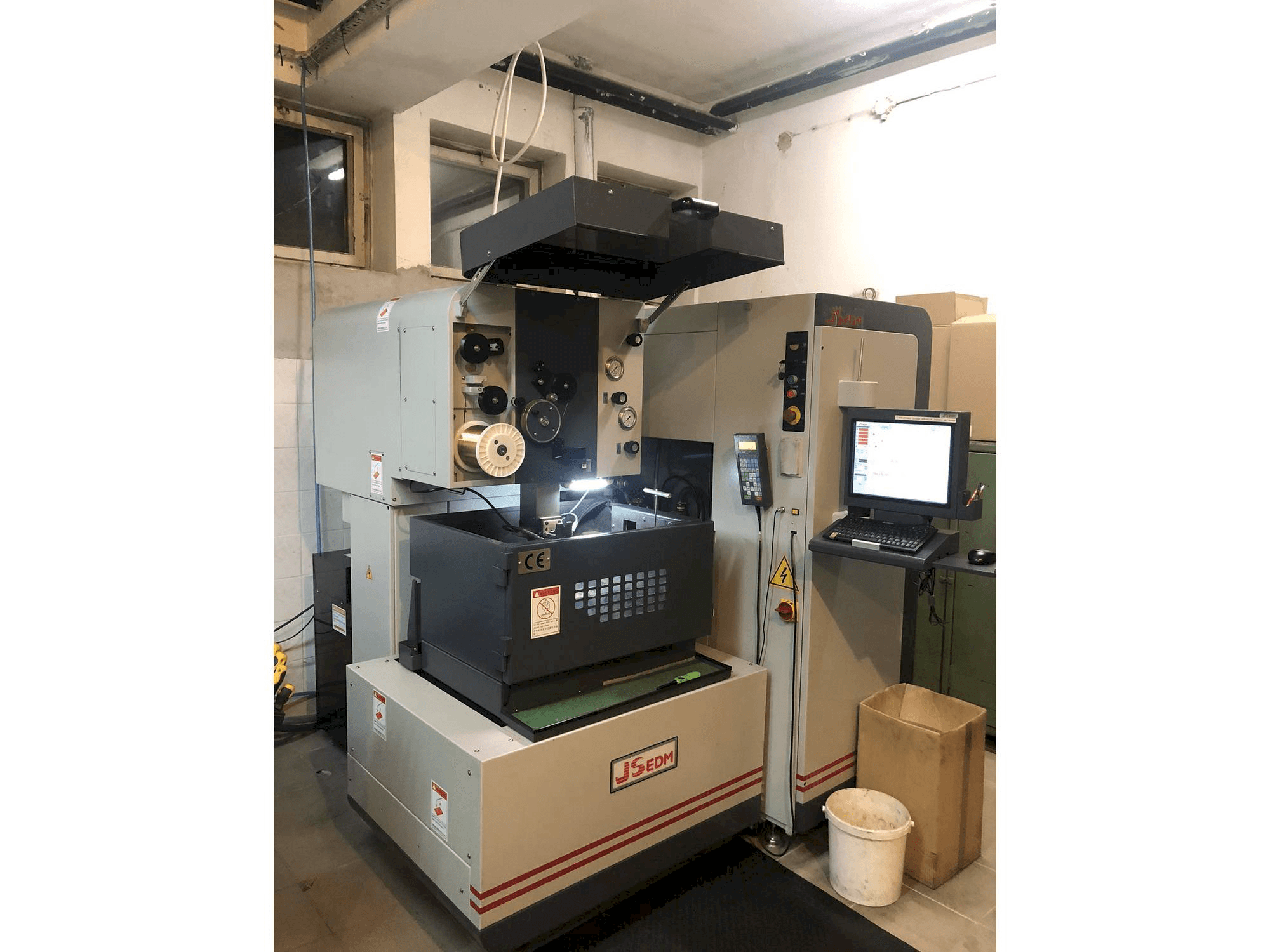

Front view of JS EDM Wi-200s  machine

JS EDM Wi-200s

JS EDM - Wi-200s

2018

Rs. 4,428,550

gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This JS EDM Wi-200s Erosion machine was manufactured in the year 2018 in Taiwan. It is equipped with a JS EDM control unit and has 5 axis.

Overview

  • brand: JS EDM
  • year: 2018
  • MODEL: Wi-200s
  • application type: EDM
  • Location: Slovenia
  • machine type: Erosion Machine
  • availability: Immediately
  • control unit brand: js edm
  • GINDUMAC ID: SI-EDM-JS -2018-00001

Technical Information

General Data

  • Measurements width: 1800 mm
  • Measurements depth: 1900 mm
  • Measurements height: 1850 mm
  • Machine weight: 1700 kg

Control Unit

  • Brand: js edm

Main drive

  • Number of axis: 5

Movement

  • X-AXIS Movement: 210 mm
  • Y-AXIS Movement: 200 mm
  • Z-AXIS Movement: 155 mm

Workpiece

  • Workpiece weight: 300 kg

Table

  • Outer length: 450 mm
  • Outer width: 400 mm

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Maximum workpiece size (lxwxh)- 550x470x115 / 150 mm
      • - Wire diameter range- Ø 0. 1~0. 3 mm
      • - Max. Taper angle (°)workpiece thickness-±10° (60 mm)
      • - Maximum axes load-6 kgs
      • - Drive & servo
      • - Conductivity
      • - Automaticsimulations axis-x / y / u / v (4 axes)
      • - U/v axis travel-30/30 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
