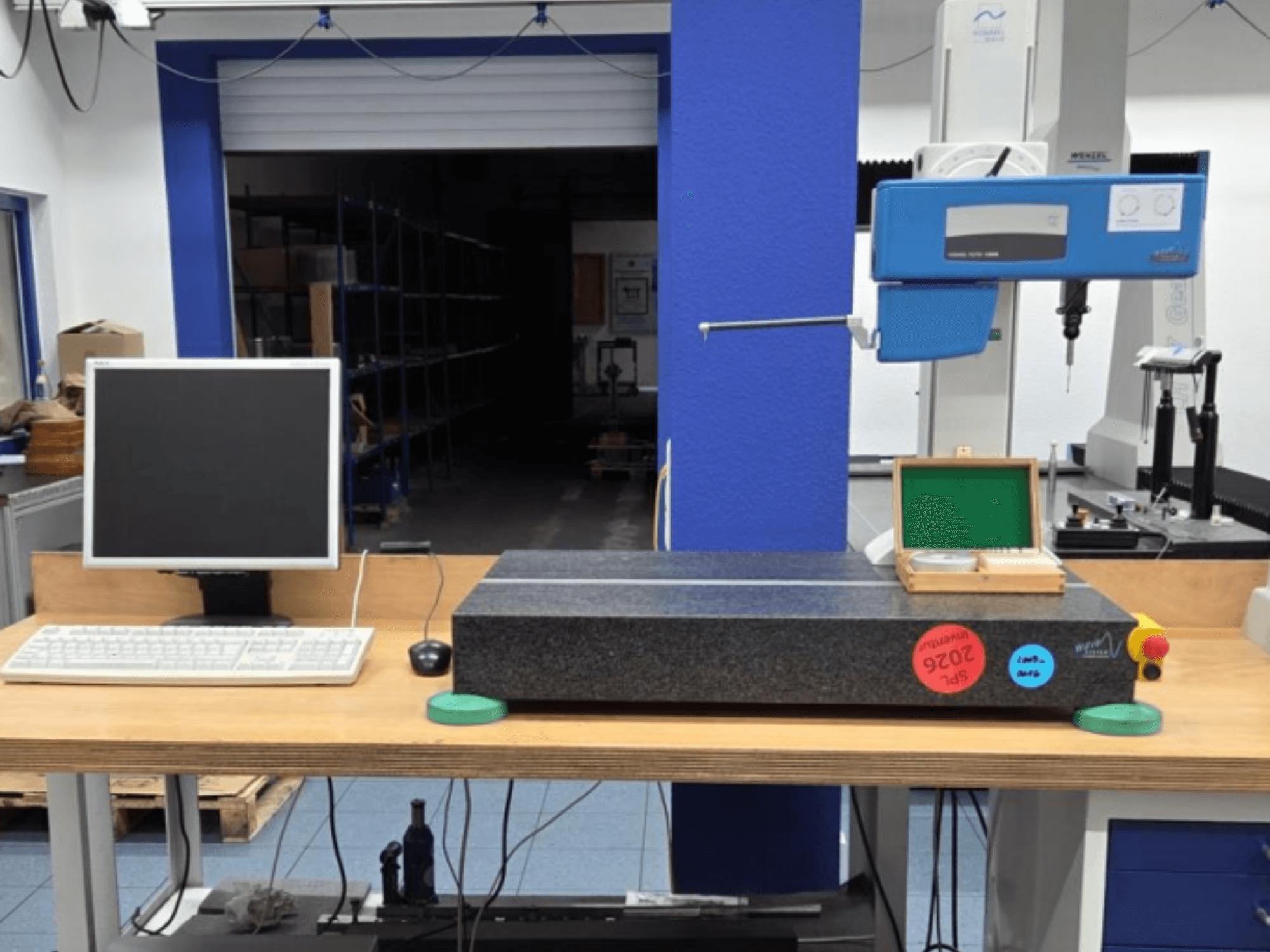

CMM machine manufactured in 2003. This JENOPTIK wave C8000 features a measuring height of ±20 mm and a measuring length of 120 mm. It includes a feed unit, a column, and operates on Windows 2000 with Turbo Contur software. The package comes with a PC tower, monitor, keyboard, mouse, printer, granite surface plate, and calibration accessories. If you are looking to get high-quality contour measuring capabilities, consider the JENOPTIK wave C8000 machine we have for sale. Contact us for further details.
Overview
- brand: JENOPTIK
- year: 2003
- MODEL: wave C8000
- application type: Measuring
- Location: Germany
- machine type: Coordinate Measuring Machine (CMM)
- control unit brand:
Technical Information - JENOPTIK wave C8000
Movement
- Number of Axes: 2
- X-axis Travel: 120 mm
Additional Information
Device type: Contour graph / contour measuring system
Measuring height: ±20 mm
Measuring length (mechanical): 120 mm
Measuring length (software setting Lt): 110.000 mm
Traversing speed (Vt): 0.500 mm/s
Feed unit: waveline 200
Column: wavelift 400
Operating system: Windows 2000
Software: Turbo Contur Version 2.70
Safety: Emergency stop button
Additional equipment
PC tower (T8000)
NEC MultiSync LCD1770NX monitor
Keyboard
Mouse
HP Deskjet printer
Granite surface plate
Calibration/Stylus accessories box
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
