IXION TL1004

Photo Gallery

IXION - TL1004PL-DRI-IXI-1998-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

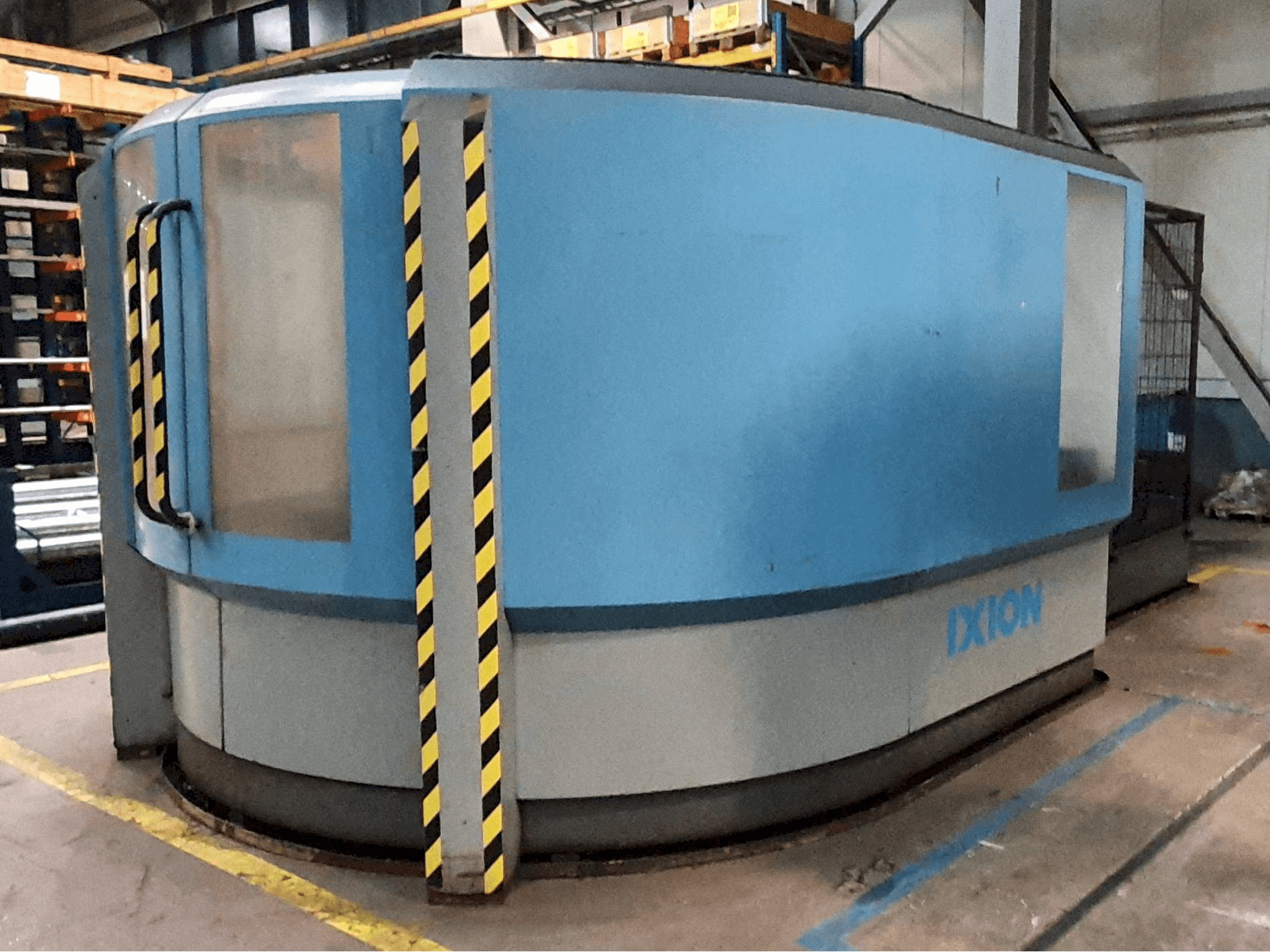

IXION TL1004 drilling machine

Show in original language

This IXION TL1004 drilling machine was manufactured in 1998. The 4 axis machine is operated through a HEIDENHAIN TNC 426PB control unit. It has a spindle speed up to 4000 rpm. A scrap conveyor, a cooling device, some tooling are included. It is in good used condition and under power.

Overview

brand: IXION
year: 1998
MODEL: TL1004
application type: Other Machine Tools
Location: Poland
machine type: Drilling Machine (Metal)
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - IXION TL1004

General Data

Measurements width: 3920 mm
Measurements depth: 6420 mm
Measurements height: 2200 mm
Machine weight: 18 000 kg

Control Unit

Model: TNC 426PB
Brand: HEIDENHAIN

Main drive

Spindle speed range: 4000 1/MIN
Spindle motor power: 35 kW
Number of axis: 4

Movement

X-AXIS Movement: 1000 mm
Y-AXIS Movement: 800 mm
Z-AXIS Movement: 1000 mm

Table

Outer length: 1675 mm
Outer width: 700 mm
Table load: 2000 kg

Media

Main electronic connection: 400V / 50Hz

Additional Information

Machine Benefits

Technical Machine Benefits:
- - W longitudinal adjustment of the column: 1100 mm
- - B axis (table): 360°
- - Tool taper: sk40
- - Scrap conveyor, cooling device, some tooling - included

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
