➤ Used IXION TL 1.1 - Drill For Sale | gindumac.com

Show in original language

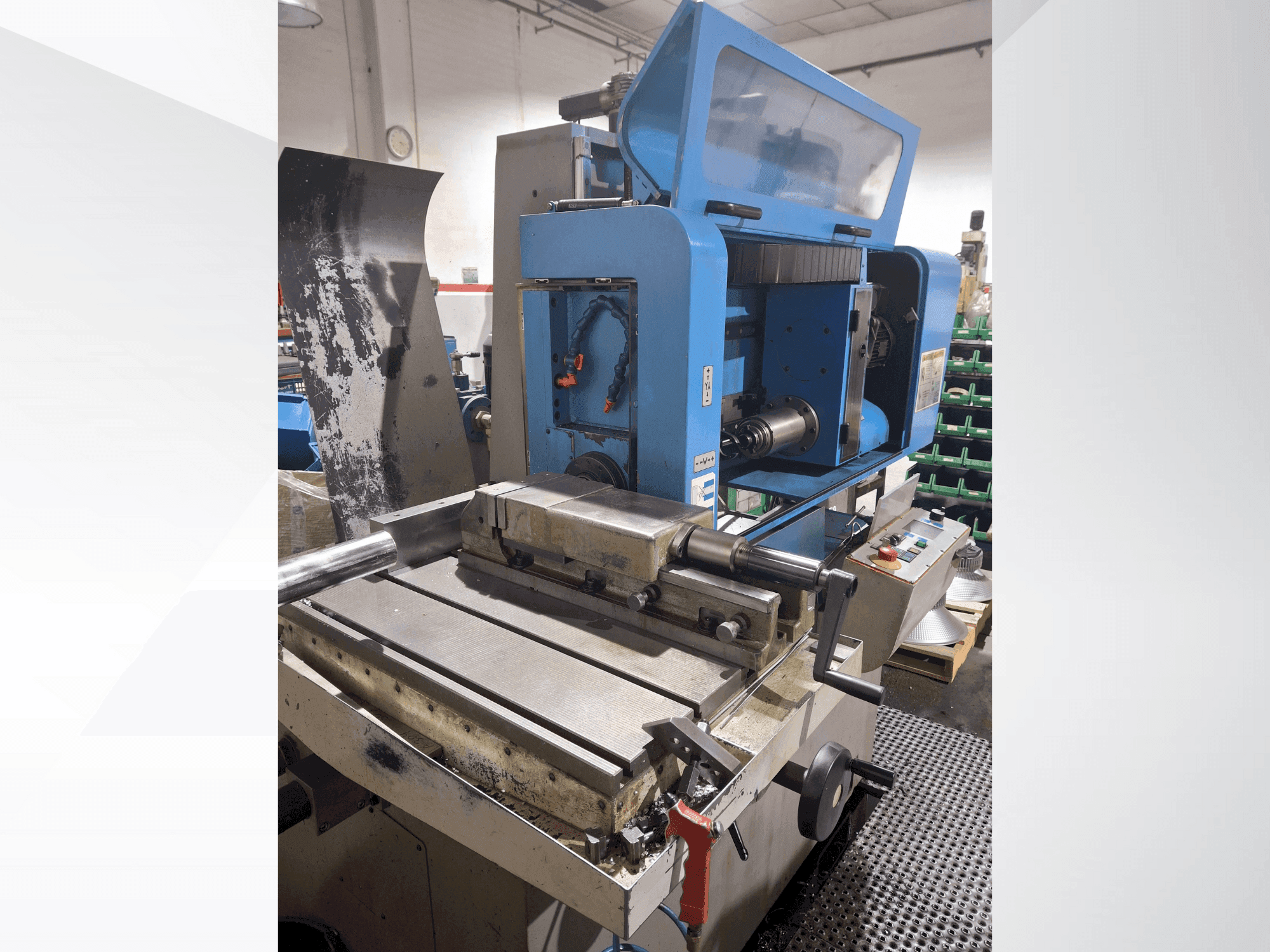

This 3-axis IXION TL 1.1 drilling machine was manufactured in 2002. It offers robust and reliable performance for various drilling applications. If you are looking to get high-quality drilling capabilities, consider the IXION TL 1.1 machine we have for sale. Contact us for further details regarding this machine.

Overview

brand: IXION
year: 2002
MODEL: TL 1.1
application type: Other Machine Tools
Location: Spain
machine type: Drilling Machine (Metal)

Technical Information - IXION TL 1.1

Dimensions

Table Length: 900 mm
Table Width: 500 mm

Movement

X-axis Travel: 600 mm
Y-axis Travel: 400 mm
Z-axis Travel: 600 mm

Technical Specification

Spindle Speed: 6000 RPM

Additional Information

Machine Benefits

Qualitative Machine Benefits

Connected power: approx. 10 kva
Idle noise level at 80% of maximum spindle speed: 70 db(a)
Measured according to: din en iso 11200 / 11202, din en 12417, din en 13128

Technical Machine Benefits

Tower travel: 250 mm
T-slots: 4 longitudinal t-slots, 14 h12 mm
Slot spacing: 150 mm
For drilling with single-lip drill bits from Ø 3 to 25 mm
Tank capacity: 600 liters
Pressure: max. 90 bar
Flow rate: max. 40 l/min
Ac spindle drive power: 4. 0 kw (at 100% duty cycle, s1)
Voltage: 400 v / 3 ph / 50 hz (3-phase, 5-wire system)
Network: tn-s or tn-c, compliant with vde 0100 part 300

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
