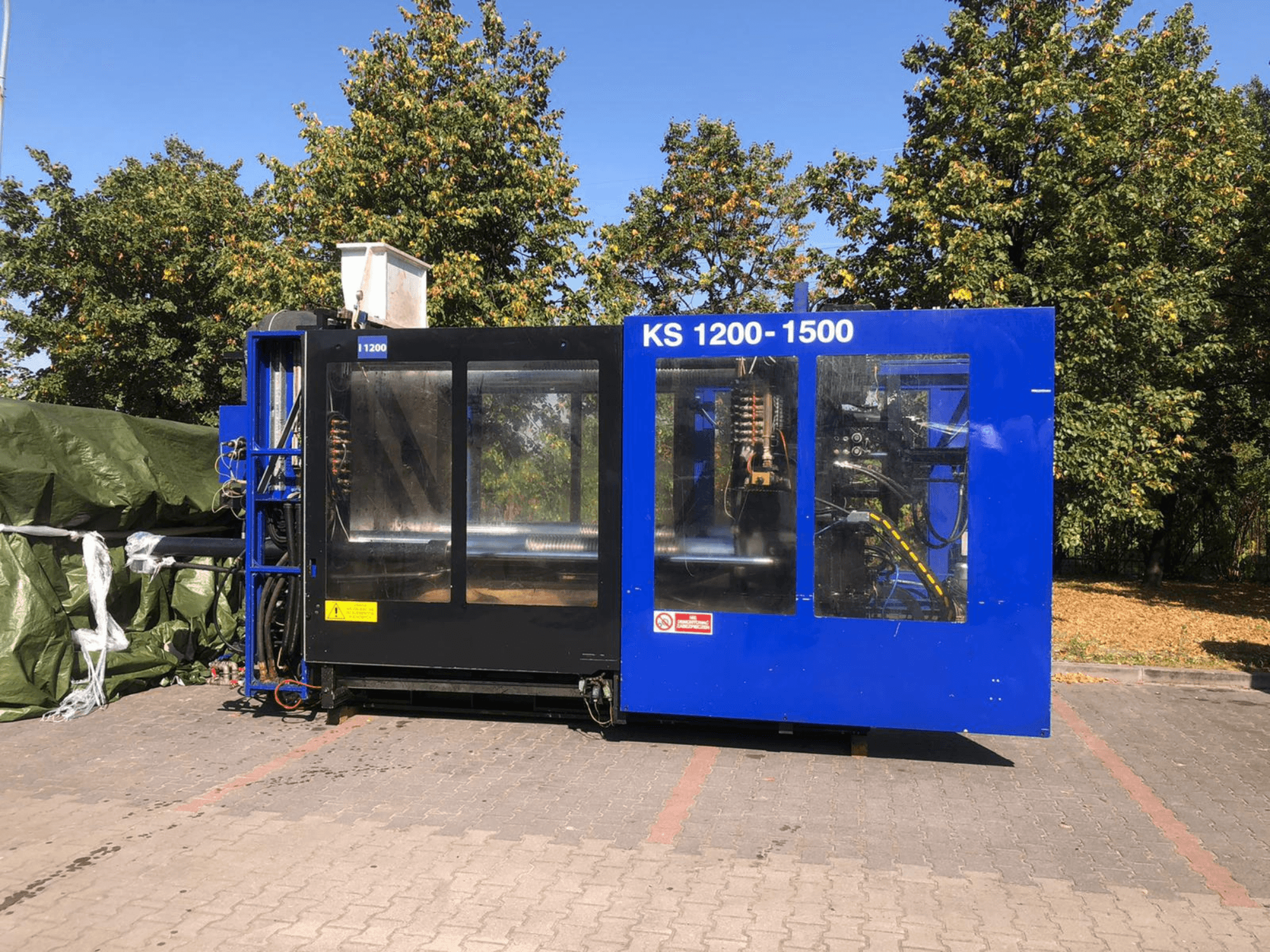

Hydraulic injection moulding machine manufactured in 2011. This ITALTECH KS 1200 8300 ES features a screw diameter of 130 mm and a clamping force of 11,772 kN. It has a shot volume of 8630 cm³ and a maximum injection pressure of 1460 bar. If you are looking to get high-quality injection moulding capabilities, consider the ITALTECH KS 1200 8300 ES machine we have for sale. Contact us for further details.
Overview
- brand: ITALTECH
- year: 2011
- MODEL: KS 1200 8300 ES
- application type: Injection Moulding
- Location: Italy
- machine type: Hydraulic Injection Moulding Machine
Technical Information - ITALTECH KS 1200 8300 ES
Dimensions
- Machine Weight: 70000 kg
Technical Specification
- Clamping Force: 11772 kN
- Max. Shot Weight: 6210 g
- Screw Diameter: 130 mm
Additional Information
Injection Unit
Injection unit size: 8300
L/D ratio: 20
Shot volume (theoretical): 8,630 cm³
Max injection pressure: 1,460 bar
Injection flow rate: 1,200 cm³/s
Screw speed: up to 110 rpm
Screw torque: 8,400 Nm
Plasticizing capacity (HDPE): 140 g/s
Heating capacity: 79 kW
Temperature control zones: 5 + 1
Clamping Unit
Clamping force: 11,772 kN (~1,200 t)
Opening force: 300 kN
Opening stroke: min 2,000 mm, max 1,400 mm (as provided)
Mould height: 600–1,200 mm
Max daylight: 2,600 mm
Platen & Ejector
Platen size (W x H): 1,900 x 1,770 mm
Distance between tie bars (W x H): 1,250 x 1,120 mm
Tie bar diameter: 220 mm
Ejector force: 226 kN
Ejector stroke: 300 mm
Power & Consumption
Pump motor power: 180 kW
Installed power: 265 kW
Oil tank capacity: 1,800 L
Performance
Dry cycle: 10 s
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
