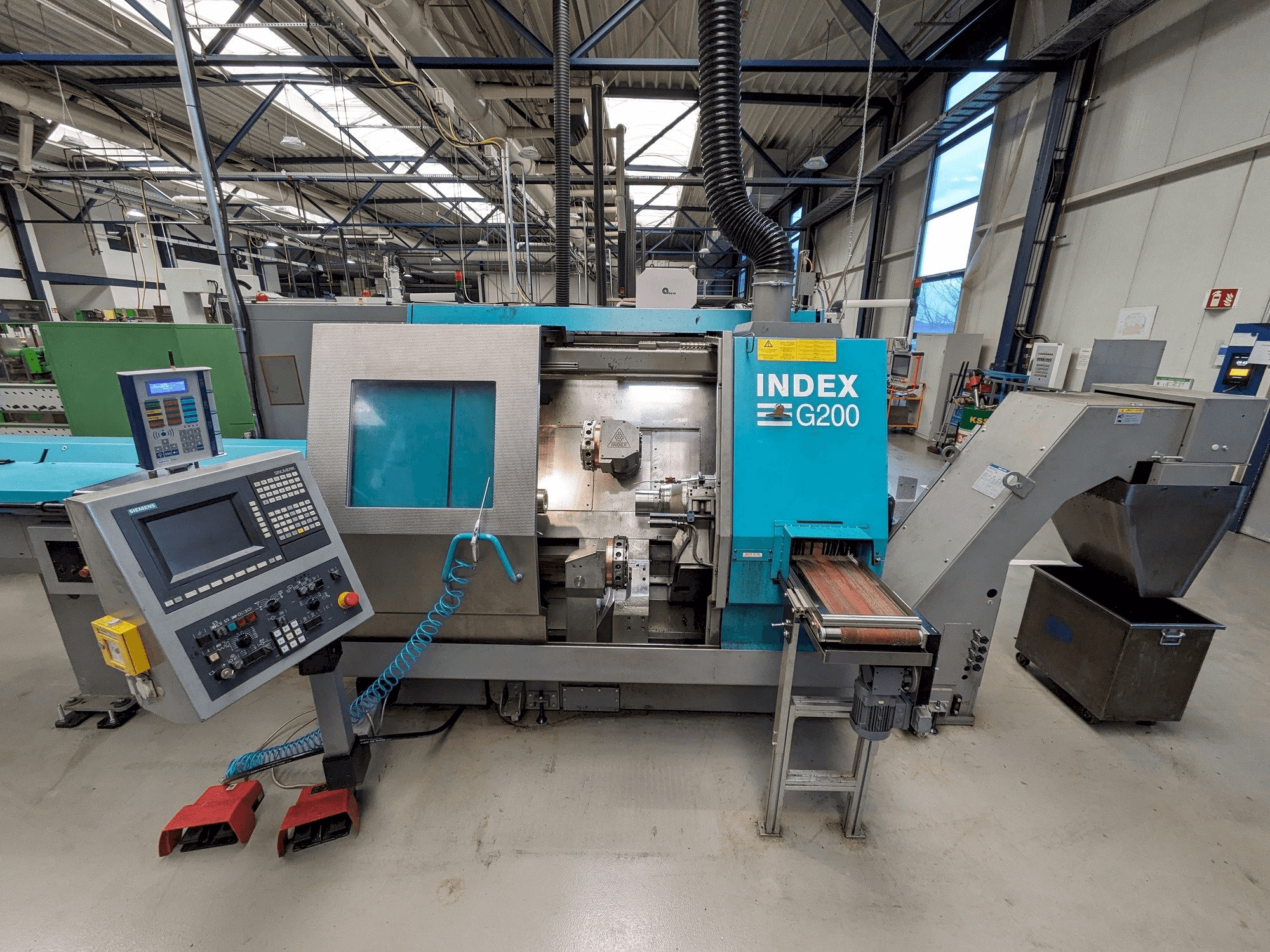

Front view of Index G200 YB RATIOLINE  machine

Index G200 YB RATIOLINE

Index - G200 YB RATIOLINE

2016

Rs. 13,385,700

gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This INDEX G200 YB Ratioline Lathe was manufactured in 1995 and completely retrofitted in the year 2016. It is equipped with a SIEMENS SINUMERIK 840 C control unit.

Overview

  • brand: Index
  • year: 2016
  • MODEL: G200 YB RATIOLINE
  • application type: Turning
  • Location: Germany
  • machine type: Lathe
  • availability: Immediately
  • control unit brand: SIEMENS
  • GINDUMAC ID: DE-TUR-IND-2016-00001

Technical Information

Control Unit

  • Brand: SIEMENS
  • Model: SINUMERIK 840 C

Main drive

  • Spindle speed range: 5000 1/MIN
  • Spindle motor power: 20 kW

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Coupling main spindle/counter spindle
      • - Transmit/tracyl function f ̧r c-axis c200-4c
      • - Tapping without compensating chuck c200-4c
      • - Index c200-4 with color flat screen 24ì
      • - C-axis on the main spindle max. 60 mm
      • - Hollow clamping cylinder d60/20 f ̧r collet and chuck clamping on hsp
      • - 1-clamping pressure device f ̧r clamping cylinder on hsp

    Extra information

    • - Overhauled in 2016 SIEMENS control system, main and counter spindle, 2x 14-position tool changer, outfeed conveyor, KNOLL chip conveyor, Type: 400S-1, year of manufacture: 2016, switch cabinet with cooling unit, CO2 extinguishing system, bar feeder INDEX Switchable high-pressure coolant pump 20 bar incl. suction filter Exhaust air nozzle D=150mm Bar loading magazine (used General overhauled) INDEX-MBL 65/3700 (D 10 ñ 65 mm, max. 3700 mm) Kraft & Bauer automatic CO2 object extinguishing system with air shut-off damper and pressure relief damper for the INDEX G200 lathe. Transportation incl. delivery to the point of use Cooling lubricant line through the counter spindle D42/60 including electrically controlled shut-off valve. Tool carrier 1 Design Working path Rapid traverse speed Path measuring system 14 tool holders, VDI 25, driven V-rail and W-serration X=105mm/Z=400mm X=22m/min/Z=45m/min X-axis glass masonry rod / Z-axis ROD encoder

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
