This 5-axis Index G 200 RATIO LINE was manufactured in 2006. It features a Y-axis travel of 120 mm, a turret with 12 stations, and driven tools on both turrets. The machine is equipped with a Siemens 840D control system and includes a collision monitoring system. If you are looking to get high-quality turning and milling capabilities, consider the Index G 200 RATIO LINE turn-mill centre we have for sale. Contact us for further details.
Overview
- brand: Index
- year: 2006
- MODEL: G 200 RATIO LINE
- production hours: 115000
- application type: Turning
- Location: Germany
- machine type: Turn-Mill Centre
- control unit brand: SIEMENS
Technical Information - Index G 200 RATIO LINE
Control Unit
- Control Brand: SIEMENS
- Control Model: 840D
Movement
- Number of Axes: 5
- Y-axis Travel: 120 mm
Additional Information
C-axis on main spindle and sub spindle
Electronic gearbox
Additional V24 RS232 interface in electrical cabinet
Transmit / Tracyl function
MDE interface (machine on, machine running, part counter)
Collision monitoring system Marposs (Brankamp) CMS100
3D machine model for kinematic simulation in CAM system
Electrical cabinet cooling unit (2 units)
Main spindle D65 with HAINBUCH pull-type collet clamping
Sub spindle D60 with HAINBUCH pull-type collet clamping
Stop device
Coolant flushing of sub spindle (electrically controlled shut-off valve)
Foot switch
Turret (12 stations) upper and lower
Driven tools on turret 1 and 2
Control function “synchronous tailstock” for turret 2
Automatic sliding door (hydraulically actuated)
ROTOCLEAR viewing window
Coolant pump 80 liters / 8 bar
High-pressure pump 80 bar
High-pressure coolant connection for slide 1 and 2 with solenoid valve
Coolant flushing gun
Preparation for extraction and filter system connection
UNIMAG interface
Operating hours: approx. 115,000 h
Additional equipment
Portal unloading unit with actuated NC-controlled gripper
Gripper fingers D4–45 mm and D40–65 mm
Indexed conveyor belt
Chip conveyor (hinged belt), discharge height 1250 mm
KNOLL vacuum rotary filter (for emulsion use)

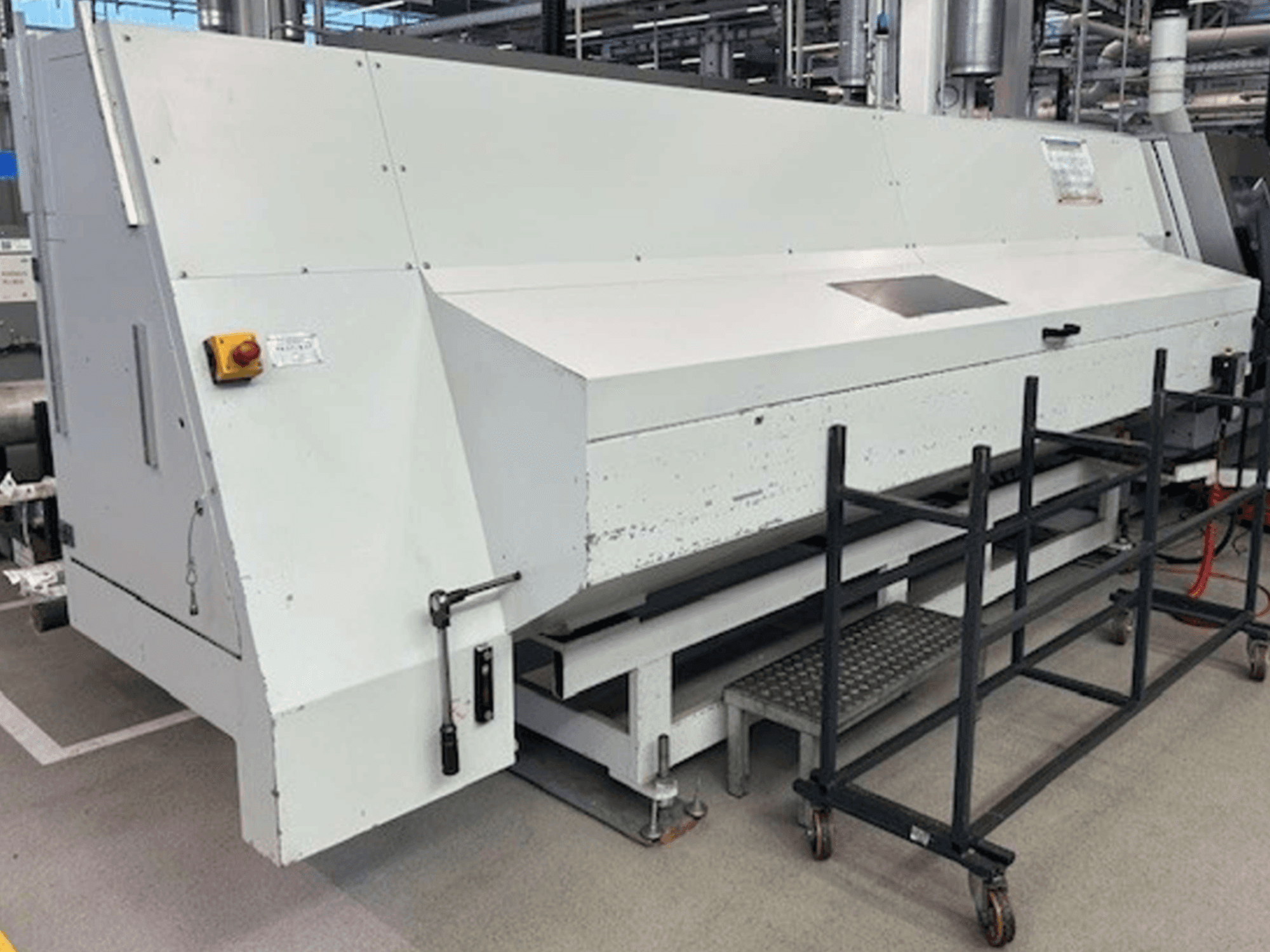

Multi-channel bar loader: Breuning / IRCO PROFImat 65.8 PR*270/8
Year of manufacture: 2006
Bar capacity: up to 3 m length
Maximum bar diameter: D65
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
