- ➤ Used Index ABC Horizontal Lathe For Sale | gindumac.com

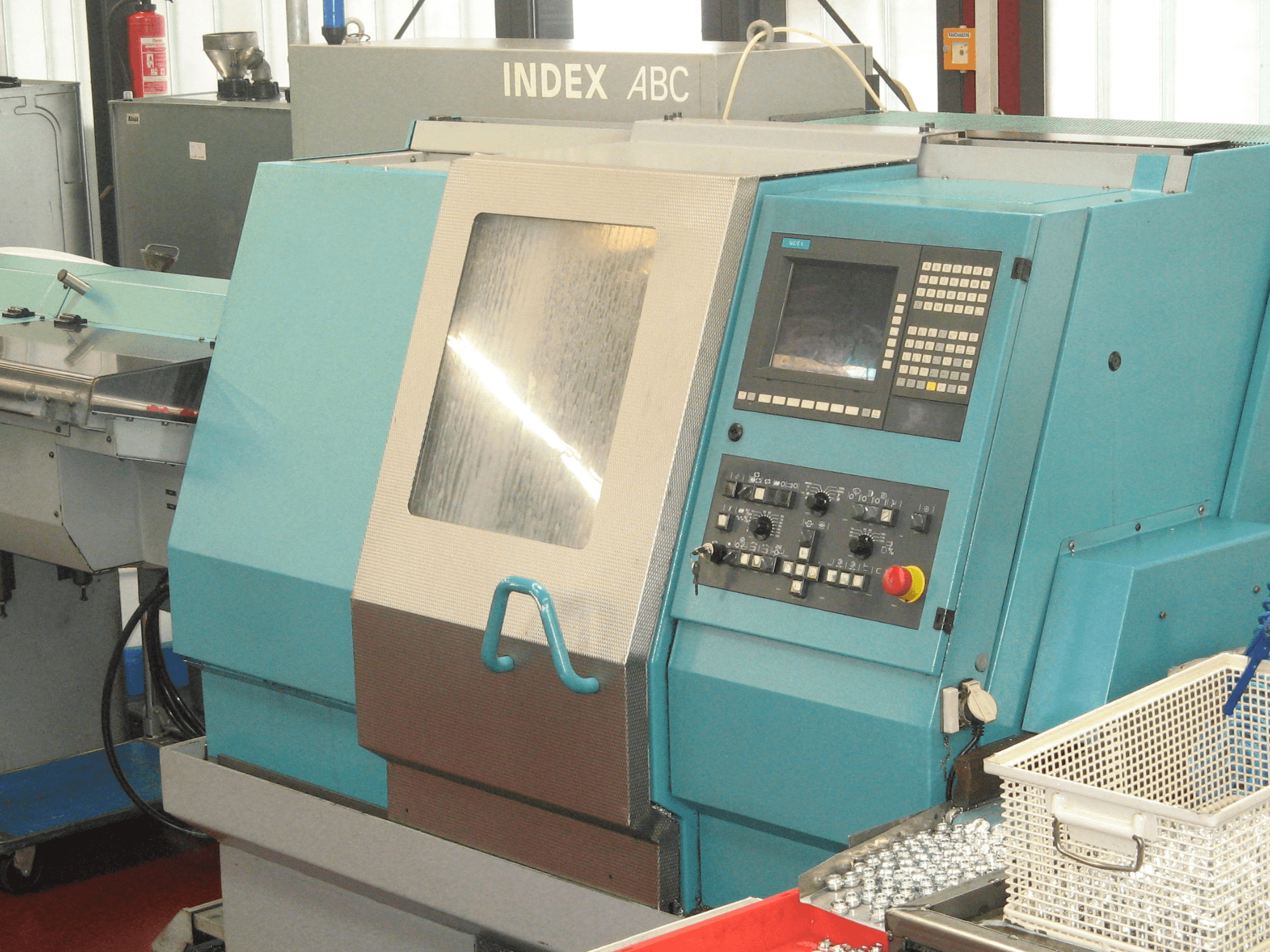

Horizontal turning machine manufactured in 2000. This Index ABC features a maximum spindle speed of 5000 1/min and a bar capacity of 60 mm. It includes an 8-station revolver with driven tools capable of 6000 1/min. If you are looking to get high-quality turning capabilities, consider the Index ABC machine we have for sale. Contact us for further details.
Overview
- brand: Index
- year: 2000
- MODEL: ABC
- application type: Turning
- Location: Germany
- machine type: Horizontal Turning Machine
- Available from: 04/05/2026
Technical Information - Index ABC
Movement
- Number of Axes: 2
- X-axis Travel: 81 mm
- Z-axis Travel: 80 mm
Technical Specification
- Counter Spindle: Yes
- Driven Tools: Yes
Additional Information
Main Spindle Torque (100/40% ED): 95/140 Nm
Bar Capacity: Max. 60 mm
Revolver 1: 8 stations (7 for VDI 25 tools, 1 for synchronous spindle)
Revolver 1 Driven Tools: Max. speed 6000 1/min, power 3.3 kW
Revolver 2: 6 stations, X-travel 81 mm, Z-travel 80 mm
Synchronous Spindle: Max. speed 4500 1/min, torque 10 Nm
Coolant Tank Capacity: 220 liters
Power Supply: 400 V, 50 Hz
Cabinet Dimensions: 1300 mm width x 2000 mm height
Display: 24 cm color flat screen interface
Control Version: C200-4
Additional equipment
Loading Magazine: INDEX MBL 65/3700
MBL Bar Length Capacity: 3000 mm (D 5–10) / 3600 mm (D 10–65)
Chip Conveyor: Knoll chip conveyor with 840 mm discharge height
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
