Hüttenhölscher - Drilling rigDE-BOR-HUT-2010-00001

Rs. 9,990,824
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

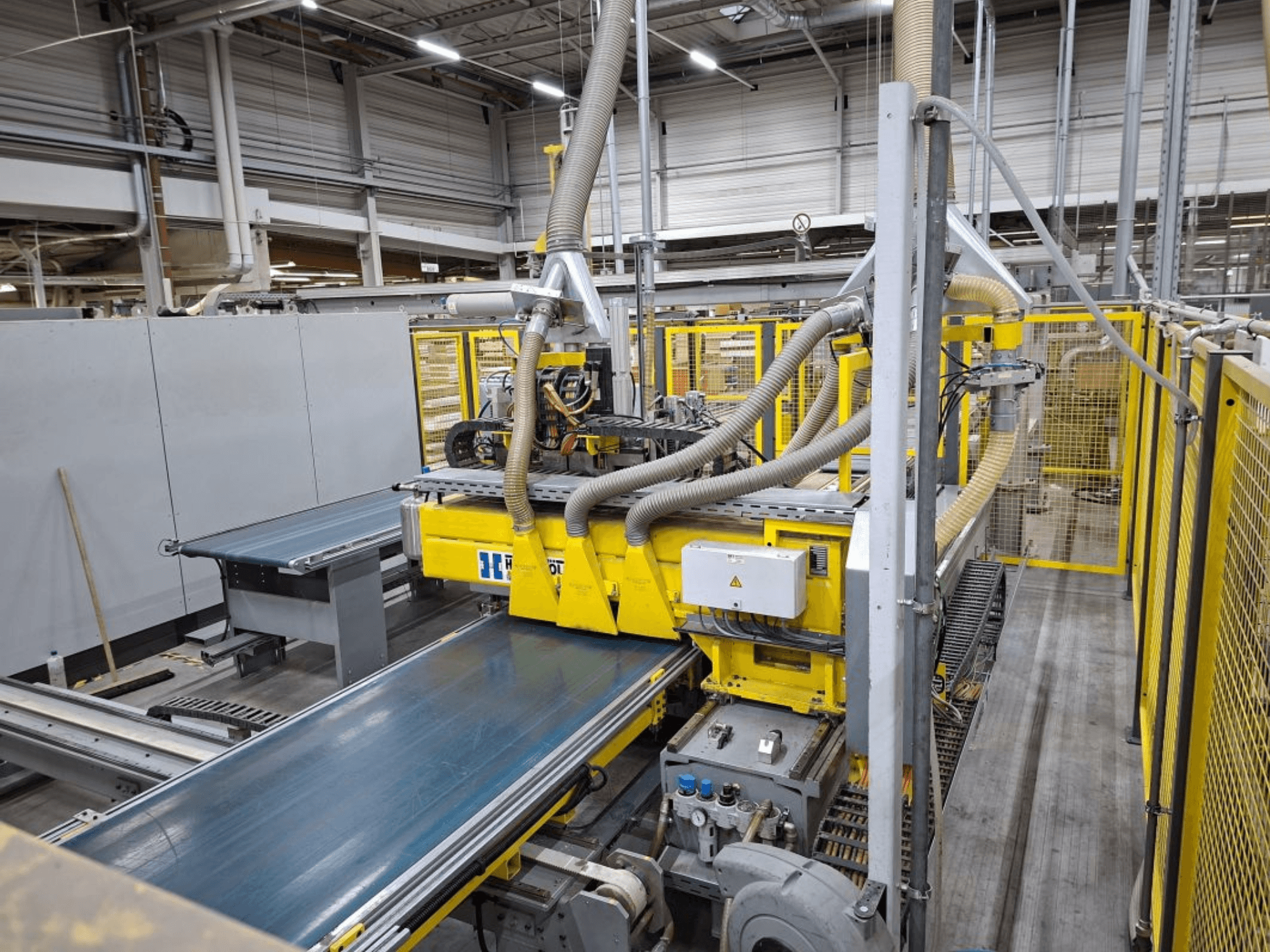

This Hüttenhölscher Drilling rig was manufactured in 2010. It features a PC-controlled function sequence under Windows 7, TwinCAT, and a used drilling system with a 6-station loading gantry. The rig includes a 2-axis gantry robot, Y/Z axes with servo motors, and a travel distance of Y-axis 8500 mm, Z-axis 1500 mm. It also has a suction crossbeam with a four-circuit vacuum supply. Contact us for more information about this machine.

Overview

  • brand: Hüttenhölscher
  • year: 2010
  • MODEL: Drilling rig
  • application type: Boring & Drilling (Wood)
  • Location: Germany
  • machine type: Multi-Spindle Drilling Machine

Additional Information

  • Used drilling system consisting of a 6-station loading gantry

  • 2-axis gantry robot

  • Y/Z axes with servo motors

  • Travel distances: Y-axis 8500 mm, Z-axis 1500 mm

  • Suction crossbeam with four-circuit vacuum supply

  • Vacuum generation by means of ejector

  • Length: 300 - 2250 mm

  • Width: 350 - 710 mm

  • Thickness: 16 - 25 mm

  • Stack height: Max. 1000 mm (60 parts) including protective plate

  • Drilling gear: Two 16-spindle drilling gears

  • Callable spindles: 8000 rpm

  • Groove saw (support 1) for cutting special rear wall grooves

  • Sawing unit with tool holder, speed control via frequency converter

  • 2x milling spindles right/left at front edge (support 1)

  • Base frame as welded construction with machined screw-on surfaces

  • Support can be moved in the X direction by means of a servomotor

  • Drilling gear a=32 mm, adjustable with frequency converter, drill chuck Ø 10h7 with grub screw

  • 4 stacking stations

  • 1 hand rest station / automatic - manual feeding

  • 1 removal station / automatic - manual removal

  • Floor roller conveyor / stack feed

  • 4 roller conveyor lines: 930 mm wide x 3600 mm long

  • AH 300 mm

  • Feeding / removal: manual cross transfer carriage

  • Transport section: 950 mm wide x 4100 mm long

  • Integrated side stop

  • Manual feeding

  • Toothed belt section: 900 mm wide x 2500 mm long

  • Pneumatic lift for toothed belt conveyors

  • Pneumatic double clamping cylinders, controlled by ball screw and servo motor

  • Drilling gear a=32 mm, adjustable with frequency converter

  • Pneumatically pilot-controlled working position

  • Transfer shuttle: Toothed belt section 900 mm wide x 2500 mm long

  • Return transport section: 950 mm wide x 4000 mm long

  • Pneumatic stopper

  • Horizontal stroke approx. 2500 mm by means of three-phase motor

  • Rotation by three-phase motor by +/- 90°

  • Discharge stations / automatic removal

  • Positioning of cabinet parts by encoder

  • Protective system for feeding

  • 45 m protective fence with 3 access doors

  • 2 sliding doors for feeding the floor roller conveyors
