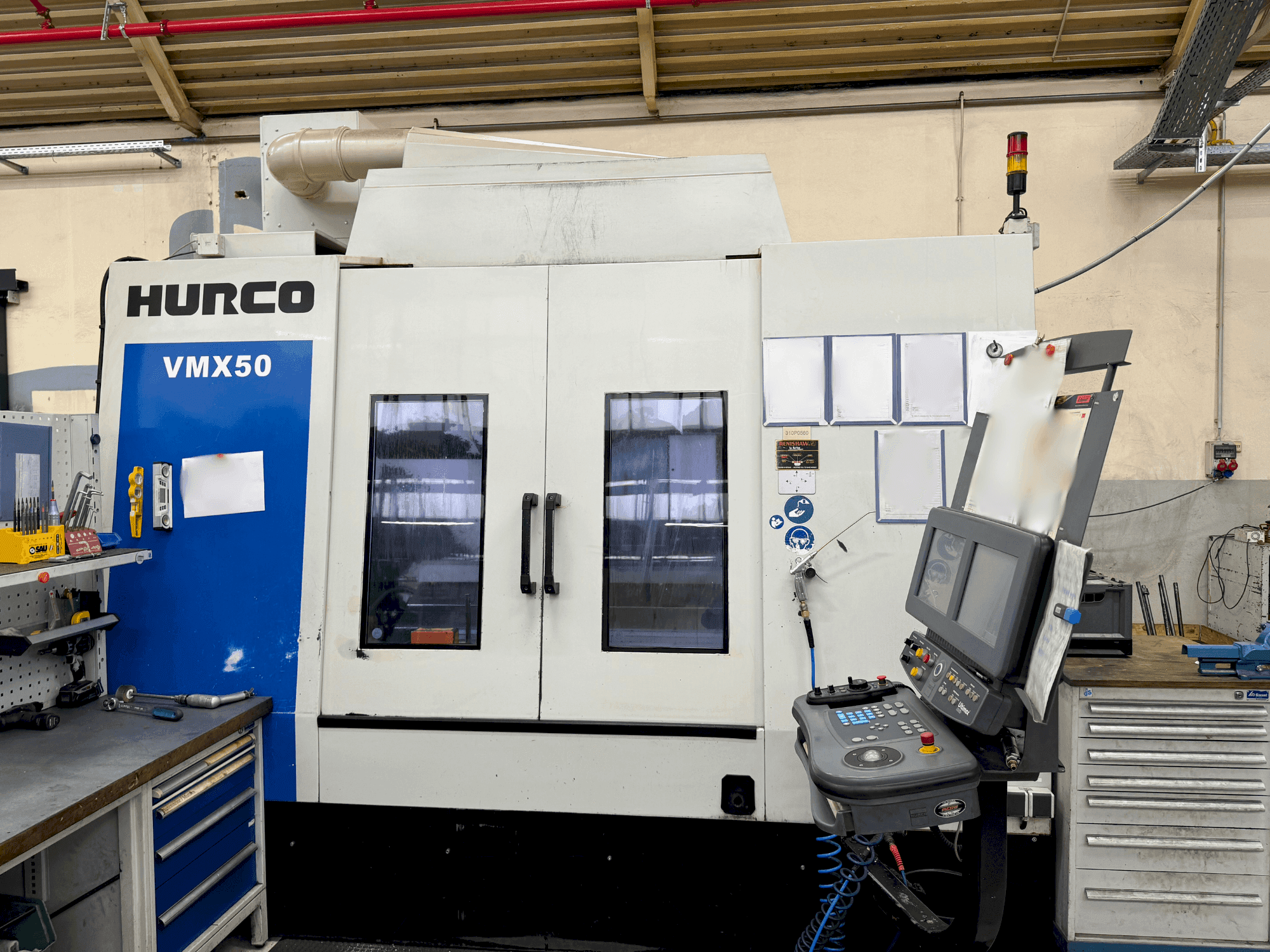

HURCO VMX 50/40T Vertical Machining Centre

Show in original language

This HURCO VMX 50/40T Vertical Machining Centre was manufactured in 2005 in Taiwan. It comes with a 10,000 rpm spindle (SK40 tool taper), 3 axes (X = 1270 mm / Y = 660 mm / Z = 610 mm) and automatic tool changer with 24 slots. In addition the scope of delivery includes a chip conveyor, an oil mist separator system (ME-FI from W+W), a high-pressure cooling system for coolant supply through the spindle, an integrated hydraulic tool clamping system and the feature of workpiece position detection and tool length calibration with probe. In total it has operated 44,358 hours and is still under production. As extra option upon request and for additional charge the machine can be equipped with a KITAGAWA TT 251 Tilting NC Rotary Table for 5-axis simultaneous operations (4th axis NC rotation axis, 5th axis tilting of the positioning axis in conjunction with the plain text software & 5-axis simultaneous in conjunction with the ISO code software and corresponding programming station). Contact us at any time for further details!

Overview

brand: Hurco
year: 2005
MODEL: VMX 50/40T
production hours: 44358
application type: Milling
Location: Germany
machine type: Machining centers (vertical)
availability: Sold
control unit brand: HURCO

Technical Information - Hurco VMX 50/40T

General Data

Measurements width: 3245 MM
Measurements depth: 2250 MM
Measurements height: 2460 MM
Machine weight: 9400 kg

Control Unit

Brand: HURCO
Model: ULTIMAX 4

Main drive

Spindle speed range: 10000 1/MIN
Tool taper: SK 40
Number of axis: 3 (option for 5)

Movement

X-AXIS Movement: 1270 MM
Y-AXIS Movement: 660 MM
Z-AXIS Movement: 610 MM

Media

Oil water separator: Yes
Chip conveyor: Yes
Internal cooling: Yes

Additional equipment

- [UPON REQUEST for additional charge] KITAGAWA TT 251 (4th axis NC rotation axis, 5th axis tilting of the positioning axis in conjunction with the plain text software)
- Chip Conveyor // ME-FI 1000 Oil mist separator from W+W (YOM 2014)
- Coolant system
- Chip splash guard cabin
- Flushing system to support chip removal
- Coolant filtration via pump suction filter
- Signal light for machine operating status
- Machine light
- Set of machine shoes
- Removable electronic handwheel

Additional Information

Machine Benefits

Technical Machine Benefits:
- - [upon request for additional charge] 4th axis nc rotation axis, 5th axis tilting of the positioning axis in conjunction with the plain text software
- - [upon request for additional charge] 5-axis simultaneous in conjunction with the iso code software and corresponding programming station (kitagawa tt 251)
- - Pocket milling with islands
- - Synchronous thread cutting (thread cutting without compensating chuck)
- - Face plate diameter 250 mm
- - Center height 225 mm
- - Spindle passage 70 mm
Qualitative Machine Benefits:
- - High-pressure cooling system for coolant supply through the spindle (cooling lubricant type emulsion, coolant pressure 20 bar)
- - Integrated hydraulic tool clamping system
- - Workpiece position detection and tool length calibration with probe

Extra information

- Transport dimensions: 3245x2250x2460 mm // Space required for operation: 4400x4750x2950 mm // Machine manual on CD // 2 monochrome screens (text + graphics) // 2 software units (1 x plain text dialog programming on the machine + 1 x for ISO code programming by external programming device or CAD/CAM system via RS-232 C or V 24 interface) Pentium technology, 1.6 GB hard disk, 64 MB RAM, parallel and serial data interfaces, DOS-compatible 3.5" 1.44 MB drive // System-internal self-diagnosis, DOS directory structure, software version 2.xx

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
