Thank you for your visit
This machine was recently sold. Take a look at similar options or get in touch with us directly.

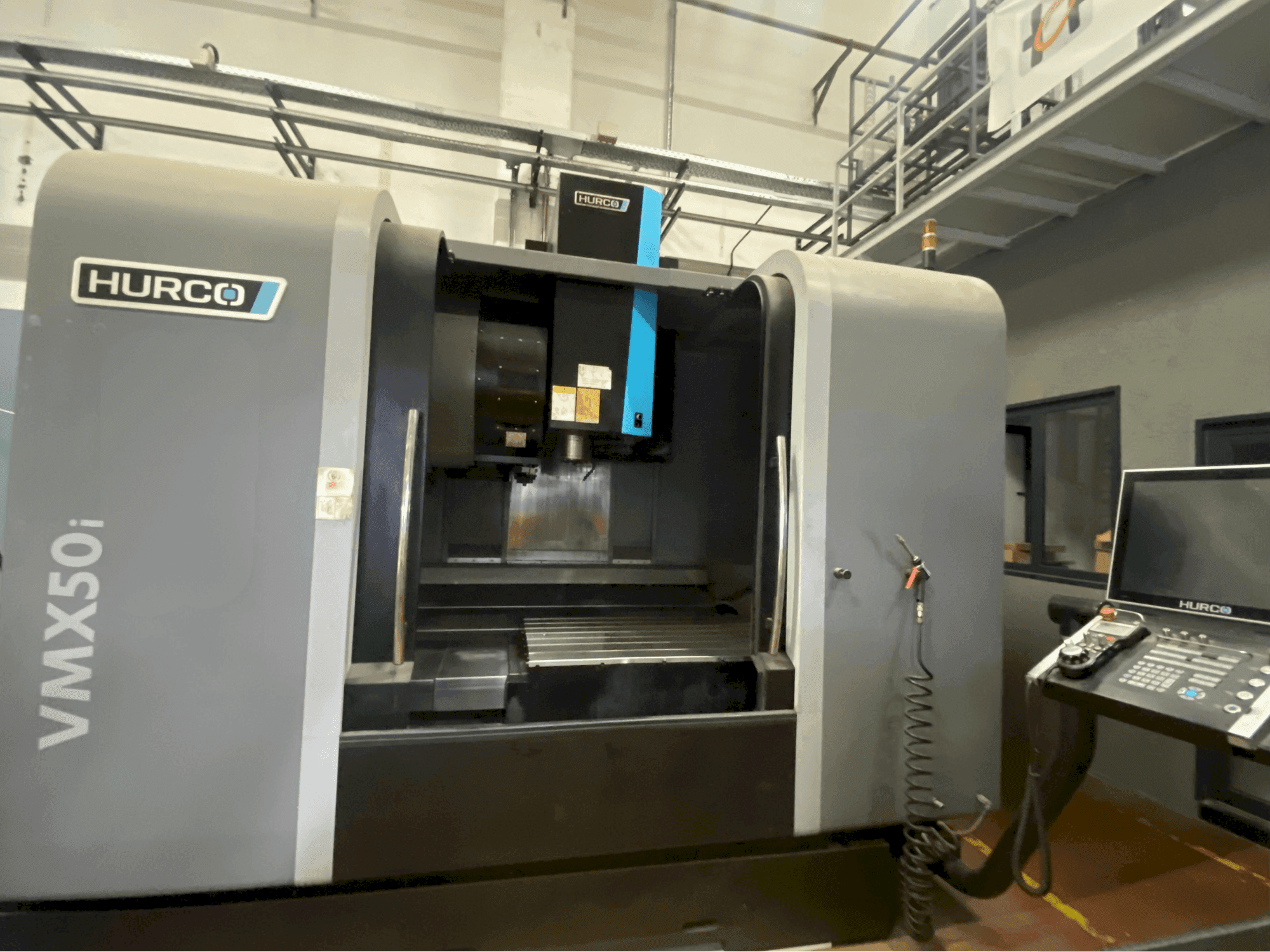

Hurco - VMX50iHU-MIL-HUR-2016-00002
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used Hurco VMX50i For Sale | gindumac.com
This 3-axis Hurco VMX50i was manufactured in 2016. It features a robust table size of 59 × 26 inches and can handle a maximum weight of 4,410 lbs. Equipped with a high-speed spindle capable of 12,000 rpm and a 40-tool changer, this machine is ideal for complex milling tasks. If you are looking to get high-quality milling capabilities, consider the Hurco VMX50i machine we have for sale. Contact us for more information about this machine.
Overview
- brand: Hurco
- year: 2016
- MODEL: VMX50i
- application type: Milling
- Location: Turkey
- machine type: Vertical Machining Centre
Technical Information - Hurco VMX50i
Movement
- X-axis Travel: 1270 mm
- Y-axis Travel: 660 mm
- Z-axis Travel: 610 mm
Additional Information
Machine Benefits
Technical machine benefits:
Max. Weight on Table: 2000 kg
Table Size: 1500 × 660 mm
Max. Spindle Speed: 12000 rpm
Spindle Power (peak – 1 min): 18 kW
Spindle Torque (peak – 1 min): 238.8 Nm @ 720 rpm
Tool Type: CAT 40 / Big Plus® (CAT or BT 40)
Number of Tools: 40
Max Tool Diameter: 76 mm
Max Tool Length: 300 mm
Max Tool Weight: 7 kg
Rapid Traverse X, Y, Z Axis: 32, 32, 24 m/min
Max Programmable Feedrate: 24 m/min
Max. Operating Floor Space: 5055 × 3844 mm
Machine Height: 3240 mm
Machine Weight: 8880 kg
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
