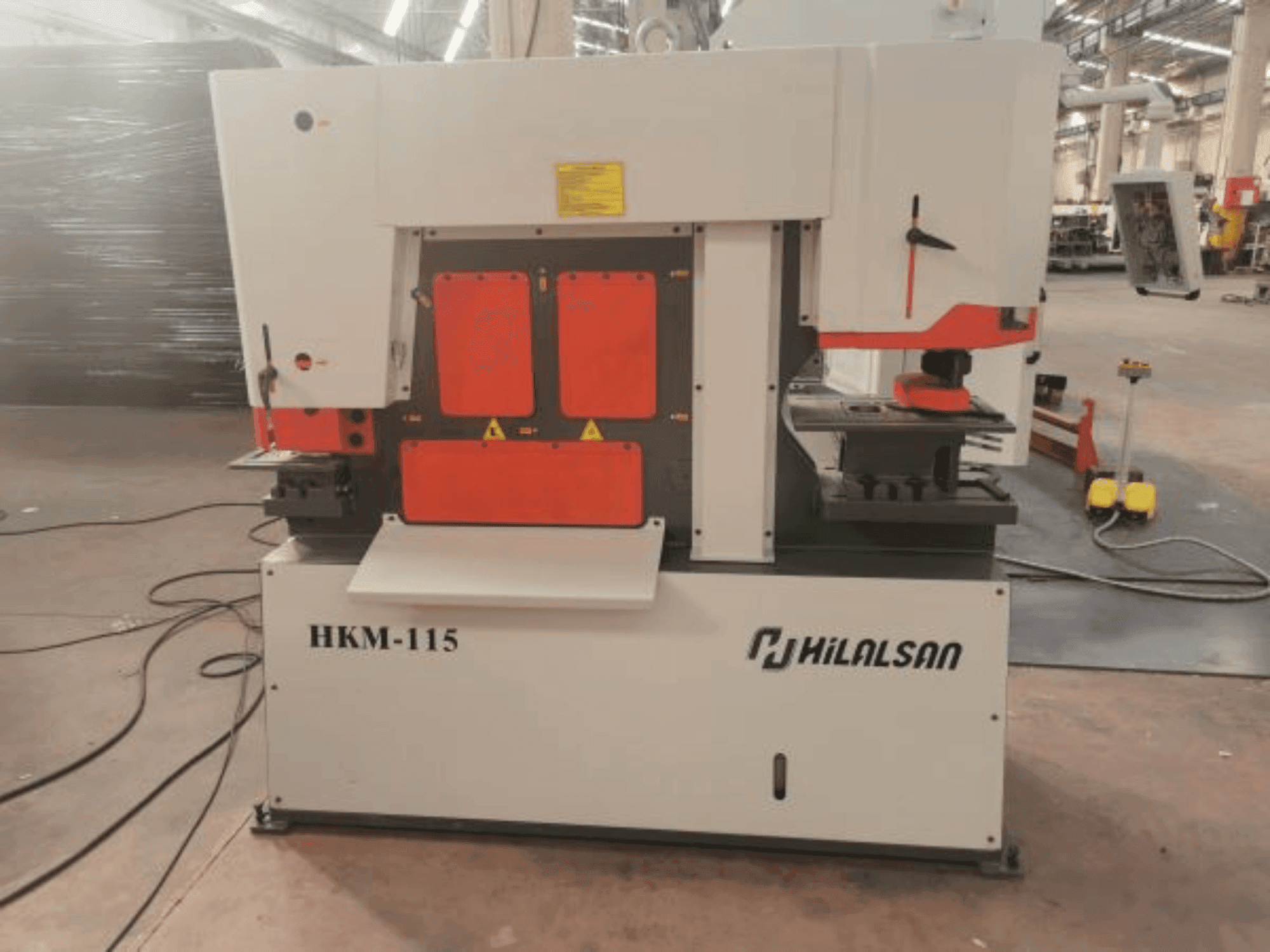

HILALSAN - HKM-115HU-SHE-HIL-2022-00001

Additional equipment

• Dual-cylinder hydraulic system
• Easily interchangeable punching tool
• One set of punching tools included
• Angle cutting shear
• Flat bar shear
• Notching tool
• Rod cutting tool
• 1000 mm electronic back gauge
• Foot pedal with emergency stop on both sides
• Delivered with one set of Ø26 mm punch and die

Machine Benefits

Technical Machine Benefits

• Cutting capacity (horizontal, width × thickness): 380 × 25 mm / 600 × 15 mm
• Blade length: 610 mm
• Working height: 1070 mm
• Angle cutting (90° cut): 120 × 12 mm
• Max punching capacity (diameter × thickness): Ø34 × 26 mm / 55 × 16 mm
• Throat depth: 405 mm
• Max stroke length: 80 mm
• Profile cutting capabilities: round bar: Ø55 mm, square tube: 50 × 50 mm
• Rectangular notching capacity: 60 × 100 × 13 mm
• Simultaneous dual-side operation possible

Extra Information

Machine still under power
