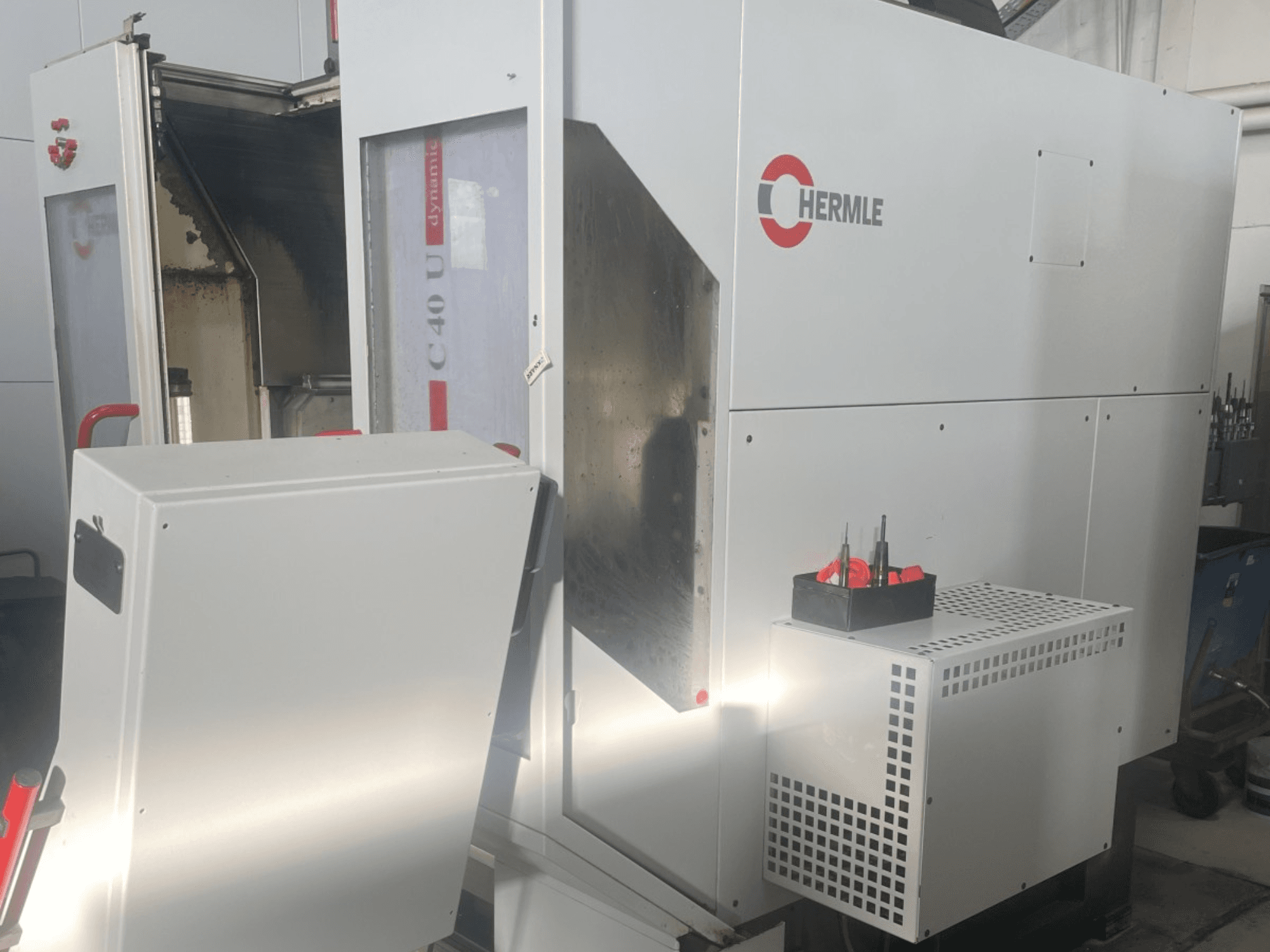

HERMLE C40U Universal Machining Centre in front view, featuring tool holder on the side and visible machine controls.
HERMLE C40U Universal Machining Centre in front view, featuring tool holder on the side and visible machine controls.

HERMLE - C40UDE-MIL-HER-2007-00002

Rs. 10,802,514
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 5-axis HERMLE C40U universal machining centre was manufactured in 2007. It features a travel of 850 mm in the X-axis, 700 mm in the Y-axis, and 500 mm in the Z-axis, with a rapid traverse of 45 m/min. The machine is equipped with a spindle speed of 18,000 rpm and a tool changer with 38 positions. If you are looking to get high-quality machining capabilities, consider the HERMLE C40U machine we have for sale. Contact us for further details.

Overview

  • brand: HERMLE
  • year: 2007
  • MODEL: C40U
  • production hours: 14000
  • application type: Milling
  • Location: Germany
  • machine type: Universal Machining Centre
  • control unit brand: SIEMENS

Technical Information - HERMLE C40U

Control Unit

  • Control Brand: SIEMENS
  • Control Model: 840 D

Dimensions

  • Machine Weight: 10500 kg

Movement

  • Number of Axes: 5
  • X-axis Travel: 850 mm
  • Y-axis Travel: 700 mm
  • Z-axis Travel: 500 mm

Technical Specification

  • Spindle Speed: 18000 RPM
  • Taper Size: HSK 63

Additional Information

  • Operating voltage: 400 V / 3~

  • Mains frequency: 50 Hz

  • Control voltage: 24 V

  • Total power: 41 kVA

  • Total nominal current: 60 A

  • Master circuit diagram: 1-322-MS-96-002

  • Rapid traverse: 45 m/min

  • Tool changer: 38 positions

  • Axis configuration: 5-axis

    • Linear axes: X, Y, Z

    • Rotary axes: A-axis (off-centre), C-axis (NC swivel rotary table Ø420 mm)

  • NC swivel rotary table: Ø420 mm

  • Internal coolant supply (IKZ): 80 bar

  • Laser tool measurement / breakage monitoring

  • Measuring probe: Heidenhain

  • Electronic handwheel

  • Electronic thermal compensation

  • Spindle hours: approx. 14,000 h (spindle replaced 11.2017)

  • Accessories: Without tools, tool holders and zero-point clamping systems

Additional equipment

  • Paper band filter

  • Chip conveyor

  • Chip flushing gun

  • Oil mist extraction

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
