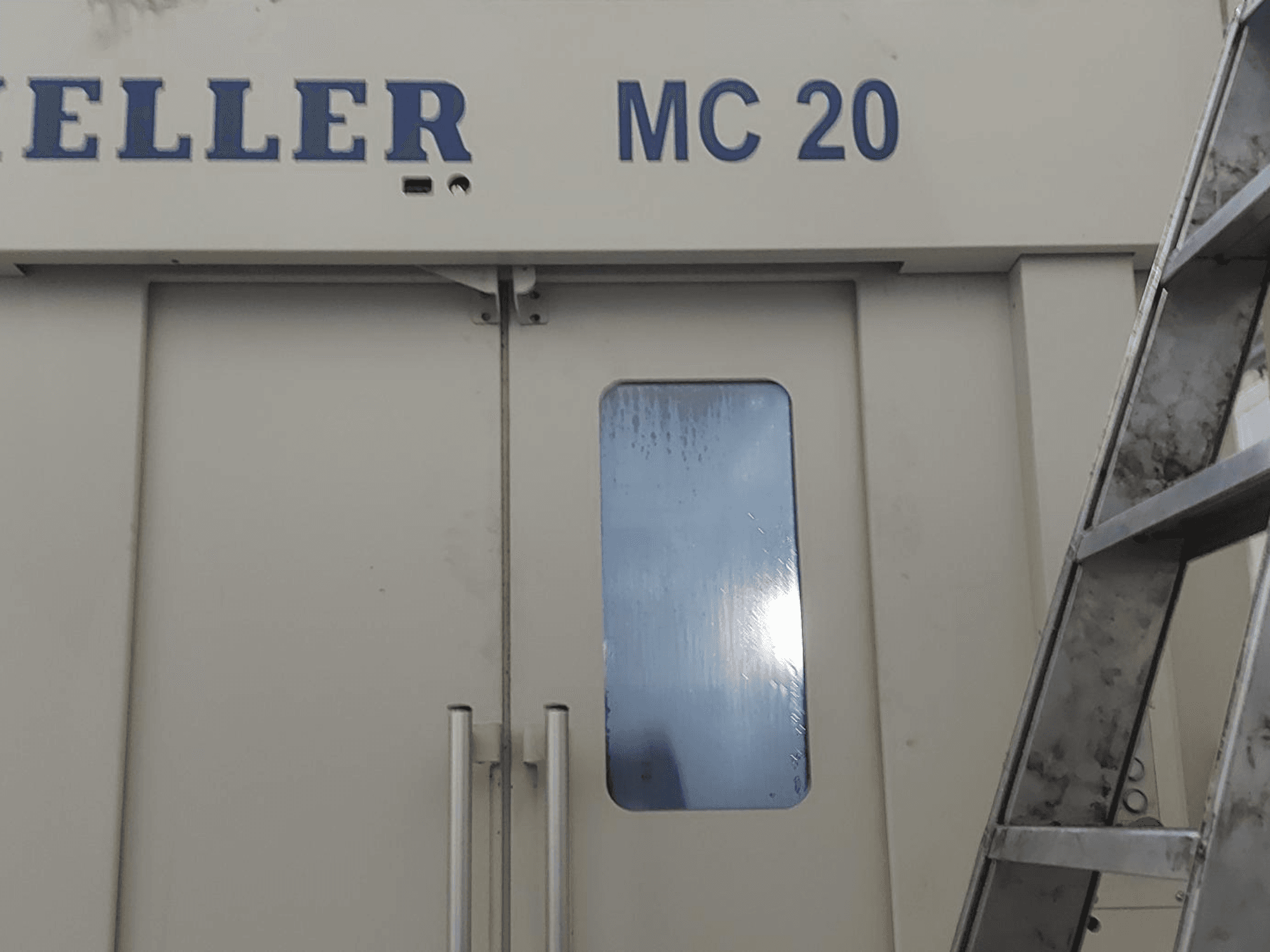

This 5-axis HELLER MC 20 was manufactured in 2012. It features an impressive X-axis travel of 1100 mm, Y-axis travel of 1100 mm, and Z-axis travel of 1000 mm. The machine is equipped with a Siemens 840D sl control unit and has a maximum fixture height of 1980 mm. If you are looking to get high-quality machining capabilities, consider the HELLER MC 20 horizontal machining centre we have for sale. Contact us for further details.
Overview
- brand: HELLER
- year: 2012
- MODEL: MC 20
- application type: Milling
- Location: Germany
- machine type: Horizontal Machining Centre
- control unit brand: SIEMENS
Technical Information - HELLER MC 20
Control Unit
- Control Brand: SIEMENS
- Control Model: 840D sl
Dimensions
- Machine Height: 2800 mm
Movement
- Number of Axes: 5
- X-axis Travel: 1100 mm
- Y-axis Travel: 1100 mm
- Z-axis Travel: 1000 mm
Technical Specification
- Taper Size: HSK 100
Additional Information
Voltage: 400 V (3~)
Frequency: 50 Hz
Nominal current: 42 A
Interference circle: Ø1260 mm
Maximum fixture height: 1980 mm
Table height from floor: 1100 mm
Suction connection: Ø265 mm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
