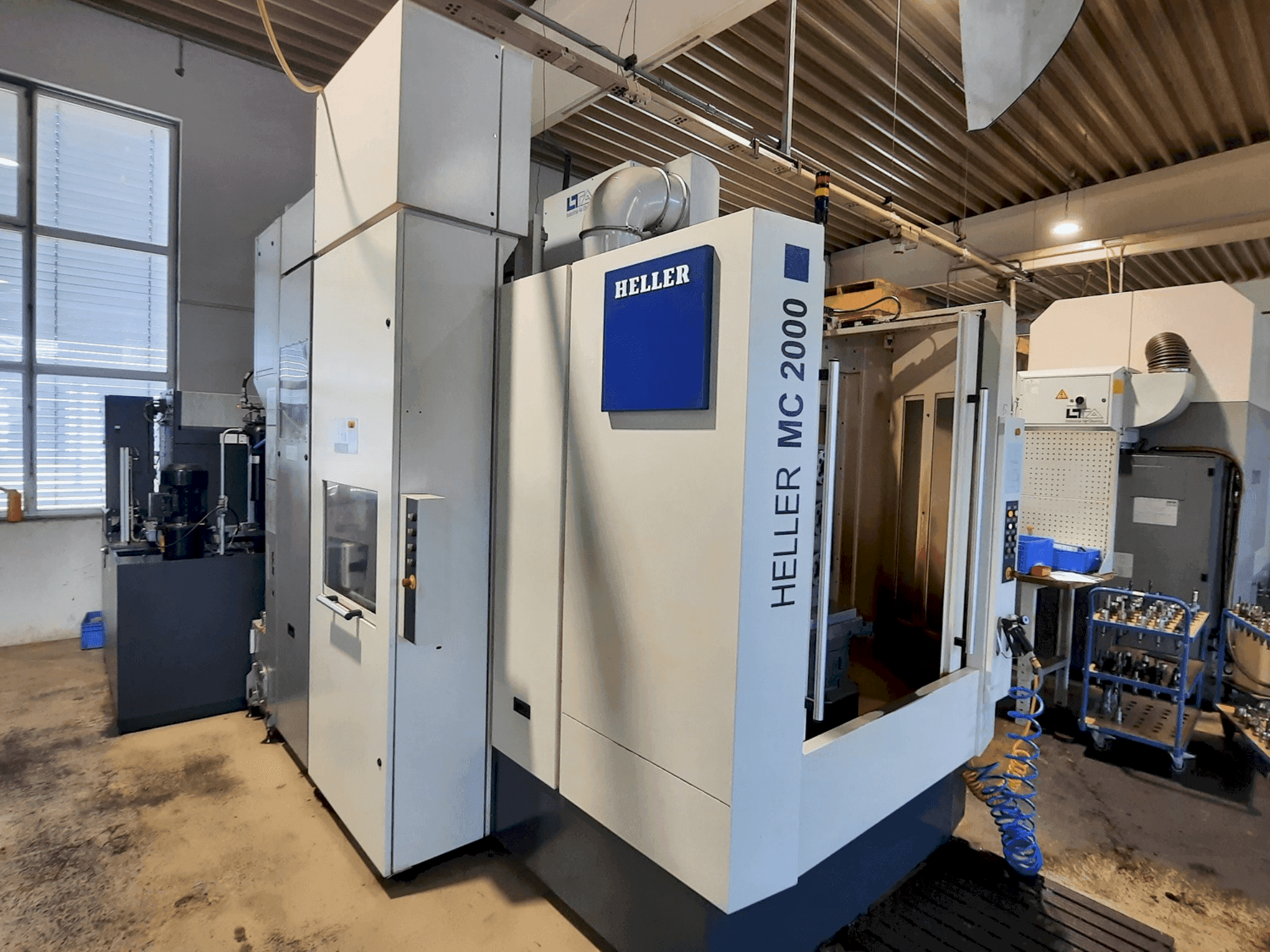

HELLER - MC 2000DE-MIL-HEL-2011-00001

Additional equipment

• Scraper belt conveyor for dry machining
• Cold light in the work area
• Central cooling unit for motor spindle and control cabinet, CFC-free

Machine Benefits

Technical Machine Benefits

• Central cooling unit for motor spindle and control cabinet, cfc-free
• Design according to ce standards
• Paint finish: gray-white / anthracite gray / dust gray / heller red
• Control cabinet with integrated control, regulation, and power unit
• Operating voltage 400v / 50hz, voltage range +/- 10% // control voltage 24v dc
• Increased spindle power with power cutting at 240 nm
• Axis dynamic power
• Full machine enclosure including cover
• Automatic central lubrication
• Hydraulic system

Extra Information

Operating instructions include: Operating instructions Control-specific documents Maintenance instructions Spare and wear parts list Supplier instructions Fluid diagrams and electrical diagrams Three-phase motor spindle package with hollow shaft motor, 17 kW at 40% duty cycle, 10000 rpm in asynchronous technology, SK 40 tool holder according to DIN 69 871, Form A, AD and B, for pull studs according to DIN 69872 Form A and B Adjustable, maintenance-free three-phase feed drives Direct position measuring system in the X, Y, Z, and B axes Movement 2-axis servo tool changer Stationary tool magazine with 54 tool positions and fixed position coding Control panel at the workpiece setup station NC rotary table with 360000 x 0.001° pitch Pallet changing device with 2 pallet positions Workpiece Setup station, manually rotatable 4 x 90° The machine has been measured.
