- ➤ Used HEINRICH SCHNEIDER MM1-300 CNC MZ TP20 | CMM
Show in original language

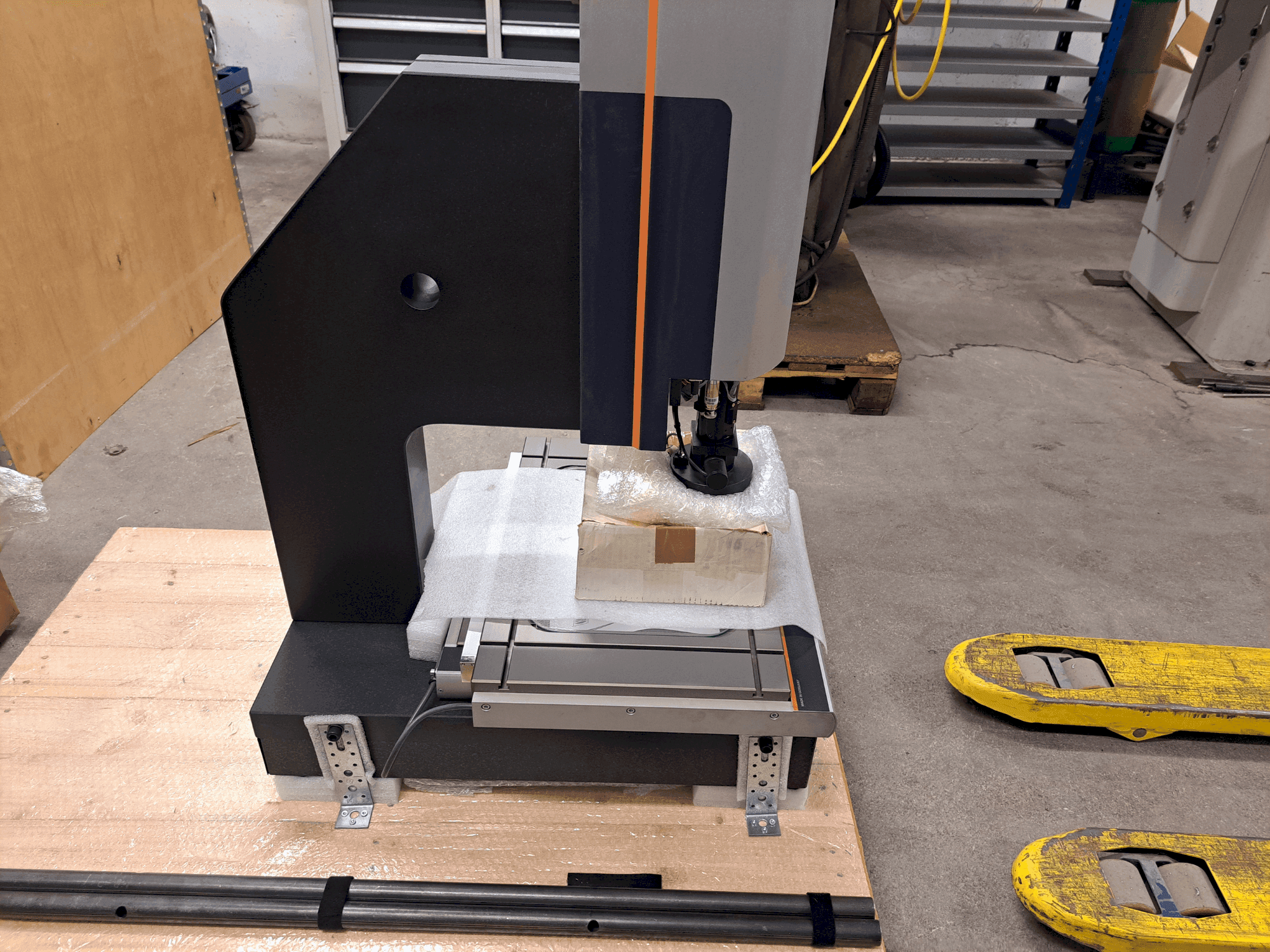

This 3-axis HEINRICH SCHNEIDER MM1-300 CNC MZ TP20 was manufactured in 2017. Ideal for precise measurements in quality control processes, this optical measurement system offers advanced capabilities. Consider the opportunity to buy this HEINRICH SCHNEIDER MM1-300 CNC MZ TP20 optical measurement system. Contact us for more information.
Overview
- brand: HEINRICH SCHNEIDER
- year: 2017
- MODEL: MM1-300 CNC MZ TP20
- application type: Measuring
- Location: Austria
- machine type: Optical Measurement Machine
- availability: Immediately
Technical Information - HEINRICH SCHNEIDER MM1-300 CNC MZ TP20
Workpiece
- Workpiece weight: 20 kg
Additional equipment
- - Lens (x-fold): 0.58 - 7
- - Camera System/Screen: 1.3MP CMOS / HD Widescreen
- - Magnification on Screen (x-fold): 31-268
- - Working Distance (mm): 80
- - Diode Laser as Positioning Aid
- - Incident Light Illumination: 56 White LEDs in 2 Concentric Rings, 1 Ring and 4 Segments Each Individually Switchable and Dimmable
- - Transmitted Light Illumination: LED, Telecentric, Switchable and Dimmable
Additional Information
- Technical Machine Benefits:
- - Includes mm1-300cnc measuring microscope, hd multi-touch panel pc (23. 6"), wireless mouse, tp-20 touch probe with sf probe module and 2. 5mm ruby ball stylus, wireless keyboard, dust cover, power supply unit, test report, and multilingual operating instructions.
- - Basic body: solid granite base with aluminum cross table, surface hardened
- - Maximum workpiece height (mm): 200
- - Measuring system: incremental
- - Very high repeatability: automatic edge detection
- - Basic body: solid granite base with aluminum cross table, surface hardened
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
