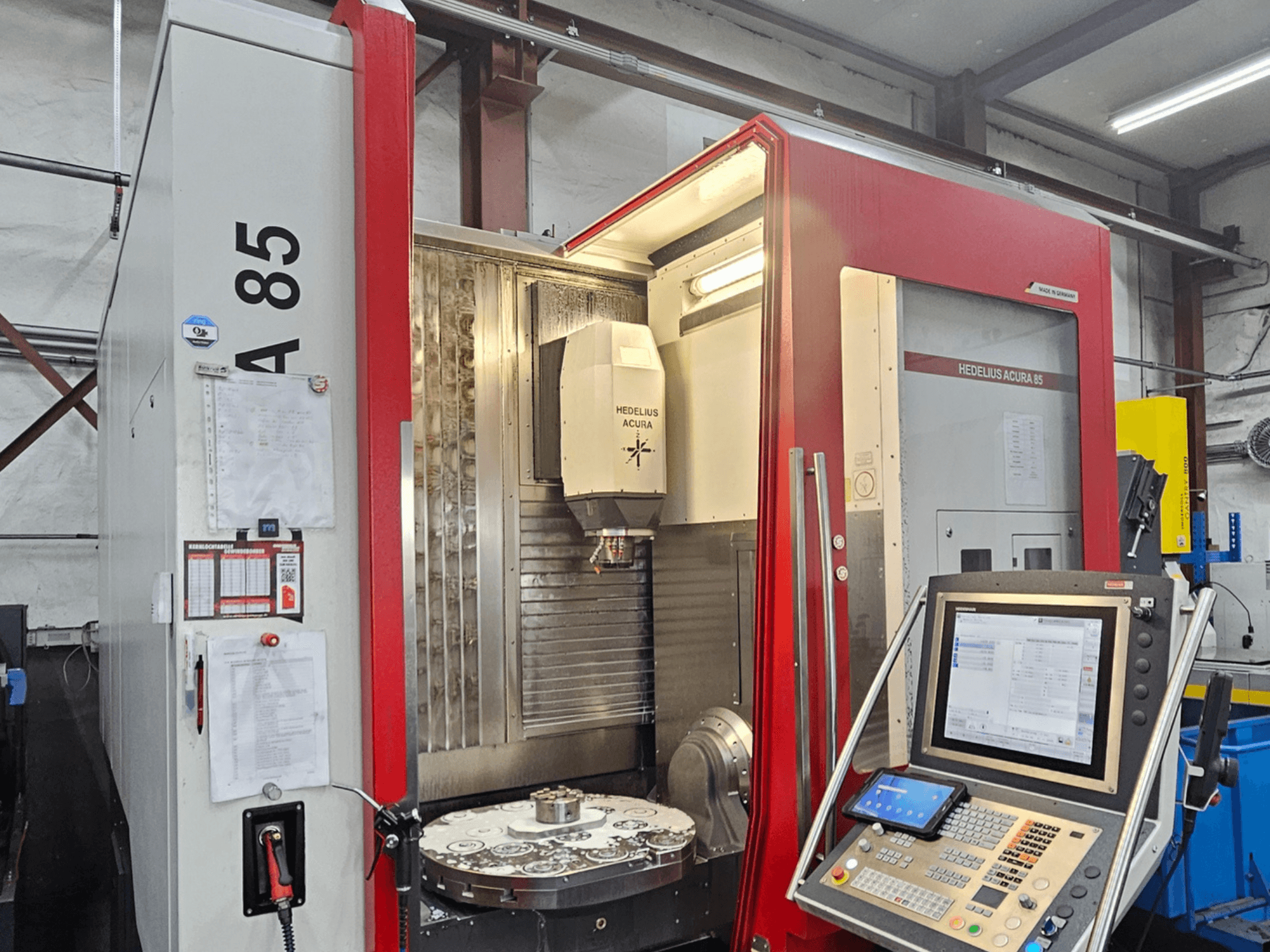

HEDLIUS Acura 85 vertical machining center, front view, features control panel and a rotating table for precision machining.
HEDLIUS Acura 85 vertical machining center, front view, features control panel and a rotating table for precision machining.

HEDELIUS - Acura 85DE-MIL-HED-2021-00001

Rs. 33,815,750
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 5-axis HEDELIUS Acura 85 was manufactured in 2021. It features an impressive X-axis travel of 900 mm, Y-axis travel of 850 mm, and Z-axis travel of 700 mm. The machine includes a double-supported rotary-tilt table with dimensions of Ø 850 × 750 mm and a maximum clamping weight of 1000 kg. If you are looking to get high-quality metalworking capabilities, consider the HEDELIUS Acura 85 vertical machining centre we have for sale. Contact us for further details.

Overview

  • brand: HEDELIUS
  • year: 2021
  • MODEL: Acura 85
  • production hours: 2011
  • application type: Milling
  • Location: Germany
  • machine type: Vertical Machining Centre

Technical Information - HEDELIUS Acura 85

Dimensions

  • Machine Weight: 11000 kg
  • Machine Width: 3062 mm
  • Table Length: 3893 mm

Movement

  • Number of Axes: 5
  • X-axis Travel: 900 mm
  • Y-axis Travel: 850 mm
  • Z-axis Travel: 700 mm

Technical Specification

  • Spindle Power: 22 kW
  • Spindle Speed: 14000 RPM
  • Taper Size: BT 40

Additional Information

  • Rotary/tilt table: Double-supported rotary-tilt table

  • Rotary table dimensions: Ø 850 × 750 mm

  • Interference circle diameter: Ø 900 mm

  • Spindle distance H/V: 135 / 120 mm

  • T-slots: 18 mm / 7

  • Distance between T-slots: 100 mm

  • Swivel range: +30° to −115°

  • Swivel rate (90°): 1.2 sec

  • Swivel accuracy: < ±10″

  • Indexing accuracy: < ±6″

  • Maximum clamping weight: 1000 kg

  • Tool holder options: SK40 / BT40 / HSK-A63

  • Drawbar force: 8 / 22 kN

  • Maximum drive power: 22 kW

  • Maximum torque: 117 Nm

  • Metal removal capacity (ST60 / E335): 400 cm³/min

  • Maximum drilling diameter: Ø 40 mm

  • Maximum thread cutting: M24

  • Feed rate X/Y/Z: 40 / 40 / 40 m/min

  • Maximum feed force: 23,000 N

  • Tool magazine capacity: 80 / 150 / 195 / 260 / 344 tools

  • Maximum tool diameter: 75 / 100 / 125 mm

  • Maximum tool length: 330 / 390 mm

  • Chip-to-chip tool change time: approx. 9.7 sec

  • Positioning accuracy X/Y/Z: A = 8 µm

  • Spindle hours: 2011 h

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
