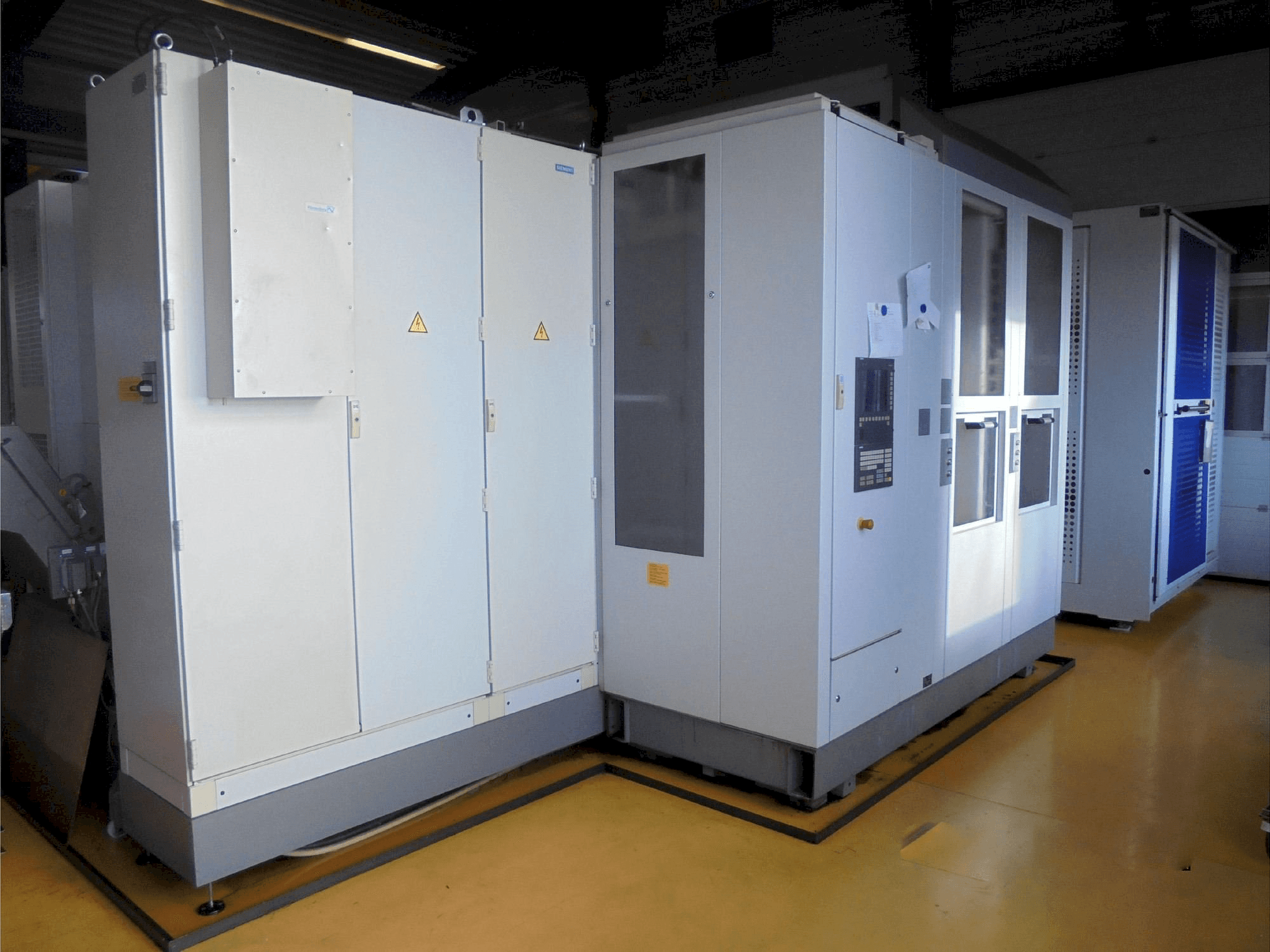

Heckert - HEC500D XXLDE-MIL-HEC-2010-00002

Machine Benefits

Qualitative Machine Benefits

• Operating voltage, dialog language german or english, when ordering the options, the corresponding items of the basic equipment are omitted.
• Color scheme: light grey ral 7035, mouse grey ral 7005, ruby red ral 3003. Documentation in german on cd-rom
• Sinumerik 840d control system
• The machining center is equipped with a cnc sinumerik 840d or de with integrated plc. The control system in combination with the simodrive 61d drive components is designed for maximum machining accuracy and high productivity.
• The most important functions of the standard equipment are listed below: operating and display components / interfaces - flat control panel with 15" tft color display - at-compatible pc as hmi-pcu50 with windows user interface and membrane keyboard
• (hmi = human-machine communication), remote diagnostics with analog modem and software 1 /
• Machine control panel for operating machine functions - usb interface on the main control panel
• Ethernet interface 10/100 mbit/s for rj45 connector
• Cnc user memory 5. 1 mbyet buffered for programs and data
• Manual input (mda) and teach ni - set-up functions (jog) for all axes and the milling spindle with machine control panel or manual control panel - constantly active diagnostics system with error and status display in plain text - screens for display or input of: tool data, process data, data for chip conveyor runtime regime, data for operator influence, operating hours display service function for tool and pallet changes tool corrections - tool management - tool wear monitoring (time, number of pieces) - tool radius correction in the plane zero point offsets - 04zero point offsets ej axis and additional additive, programmable zero point offsets - zero point offsets programmable (frames)

Technical Machine Benefits

• Tool holder, hollow shank taper din 69893 *tool chain magazine 60 places. 500 x 500 mm
• Prepared for retrofitting a portable electronic handwheel (in the manual control panel) *internal coolant supply: coolant through the center of the spindle centric form ad; mechanically adjustable; coolant tank integrated with backwash filter external coolant supply: coolant via nozzles pindle
• Flushing gun at the clamping station
• Shaft shower > open outlets
• Chip conveyor, scraper
• Completely enclosed work area cladding according to uv
• Piece counter on the nc screen
• Remote diagnosis with analog modem
• Computer connection via ethernet interface
• Pallet sequence operation,tool speed monitoring ,operating hours display
