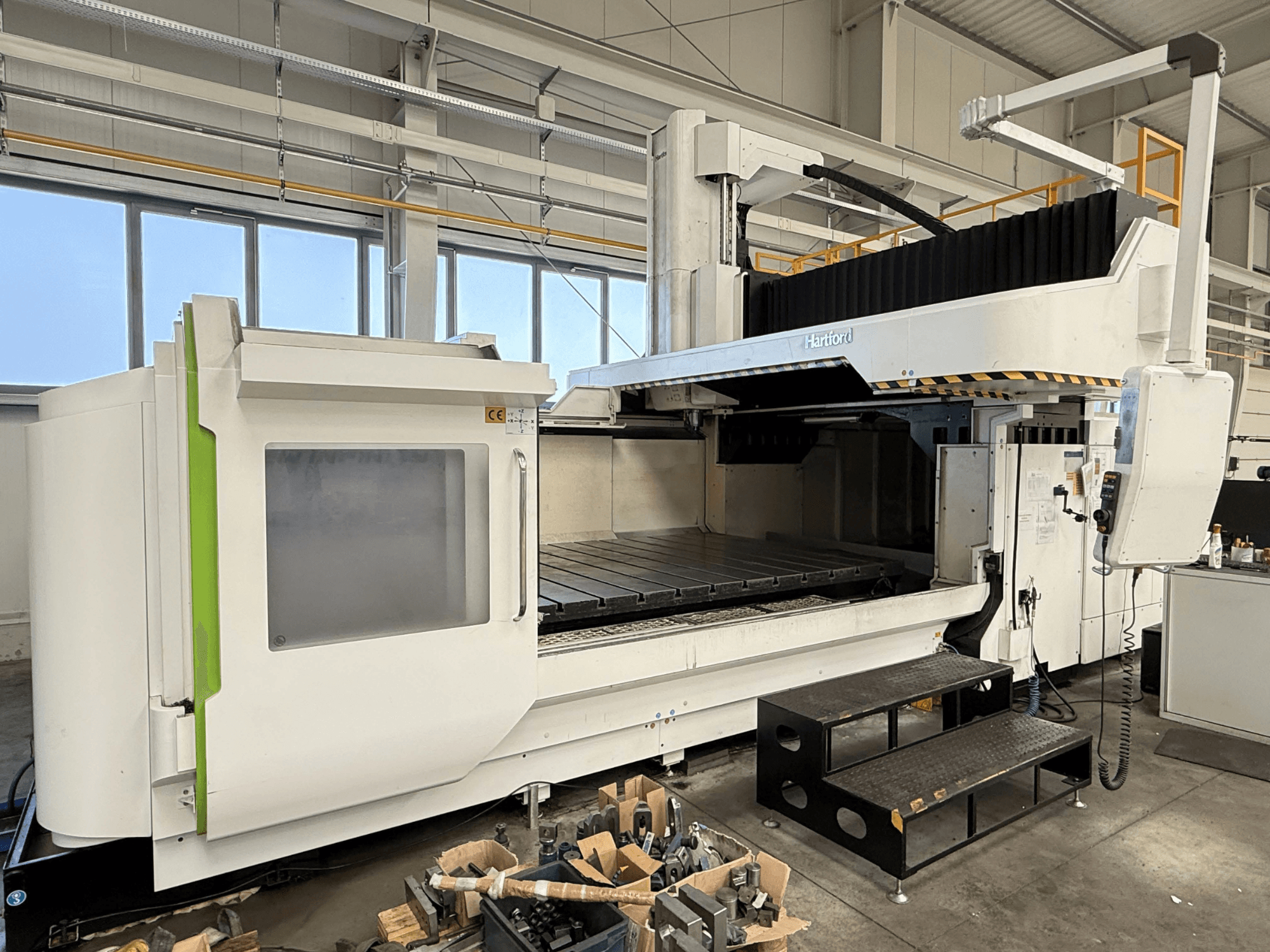

This 3-axis HARTFORD HSA-323 gantry milling machine was manufactured in 2021. It features a substantial table size of 3000 × 2200 mm and a maximum table load of 10,000 kg. The machine offers impressive travel distances with an X-axis of 3000 mm, Y-axis of 2300 mm, and Z-axis of 1000 mm. If you are looking to get high-quality milling capabilities, consider the HARTFORD HSA-323 machine we have for sale. Contact us for further details.
Overview
- brand: HARTFORD
- year: 2021
- MODEL: HSA-323
- production hours: 1779
- application type: Milling
- Location: Poland
- machine type: Gantry Milling Machine
- control unit brand: HEIDENHAIN
Technical Information - HARTFORD HSA-323
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: TNC 640
Dimensions
- Machine Height: 6800 mm
- Machine Length: 11000 mm
- Machine Weight: 32000 kg
- Machine Width: 13000 mm
- Table Load: 10000 kg
Movement
- Number of Axes: 3
- X-axis Travel: 3000 mm
- Y-axis Travel: 2300 mm
- Z-axis Travel: 1000 mm
Technical Specification
- Max. Tool Weight: 20 kg
- Number of Tools: 32
- Spindle Power: 22 kW
- Spindle Speed: 6000 RPM
- Taper Size: ISO 50
Additional Information
Workbench:
Table size: 3000 × 2200 mm
T-slot size/quantity/spacing: 28 × 11 × 250 mm
Travels:
Spindle nose to table: 350–1350 mm
Spindle center to column: 450 mm
Door width: 2300 mm
Spindle:
Gear spindle speed: 6000 rpm (optional 8000 rpm)
Hybrid spindle speed: 10,000 rpm
Feed rates:
Cutting feedrate (X/Y/Z): 12,000 / 12,000 / 12,000 mm/min
Rapid traverse (X/Y/Z): 20,000 / 18,000 / 16,000 mm/min
Automatic tool changer (ATC):
Tool magazine capacity: 32 tools (optional 40 / 60 / 90)
Max tool size: Ø125 × 400 mm
Tool holder: BT50 / BBT50 / CAT50 / DIN
Pull stud: P50T-1
Motor:
Spindle power (Fanuc): 22 / 18.5 kW
Optional hybrid spindle: 35 / 30 kW
Positioning accuracy:
JIS positioning accuracy (X/Y/Z): ±0.010 / 0.010 / 0.012 mm
JIS repeatability: ±0.003 mm
VDI positioning accuracy (X/Y/Z): 0.016 / 0.018 / 0.026 mm
VDI repeatability (X/Y/Z): 0.014 / 0.015 / 0.021 mm
Other:
Required air pressure: 6.5 kg/cm²
Required power: 45–70 kVA
CNC control: Heidenhain 640
Machine condition: Excellent geometric and spindle condition
Additional equipment
Remote handwheel
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
