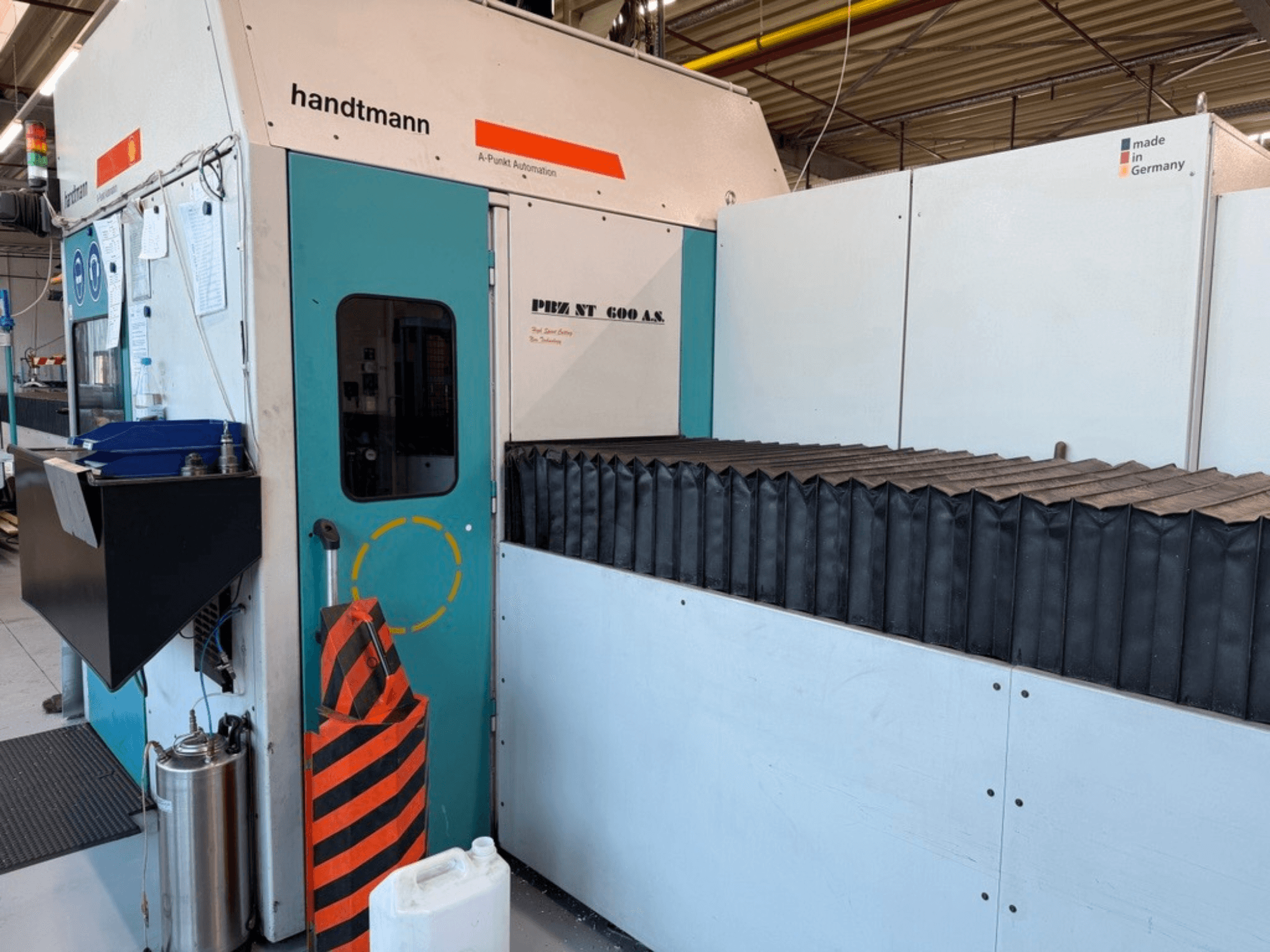

This 5-axis Handtmann PBZ NT 600 AS gantry milling machine was manufactured in 2000. It features a maximum profile length of 6500 mm and impressive X-axis travel of approximately 7230 mm. The machine is capable of working with steel and aluminium, offering advanced programming aids for milling and drilling cycles. If you are looking to get high-quality milling capabilities, consider the Handtmann PBZ NT 600 AS machine we have for sale. Contact us for further details.
Overview
- brand: Handtmann
- year: 2000
- MODEL: PBZ NT 600 AS
- application type: Milling
- Location: Germany
- machine type: Gantry Milling Machine
Technical Information - Handtmann PBZ NT 600 AS
Movement
- Number of Axes: 5
- X-axis Travel: 7230 mm
- Y-axis Travel: 1100 mm
- Z-axis Travel: 850 mm
Technical Specification
- Spindle Speed: 18000 RPM
Additional Information
Control: BWO CNC 900 multi-axis CNC
Control features: tool radius compensation in 3 axes; RAM for programs/parameters; programming aids for milling/drilling cycles; contour (short) programming; NC program I/O interface; interface for portable control panel (teach panel); control panel with swivel console; color TFT display; 3.5" floppy drive; CD-ROM drive
Material capability: steel and aluminium
Rotary axes: C ≈ ±200°; A ≈ ±120°
Positioning accuracy (linear axes): ±0.05 mm/m
Speeds: Y working/rapid max 45 m/min; Z working/rapid max 45 m/min; X rapid max 90 m/min
Maximum profile length: 6500 mm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
