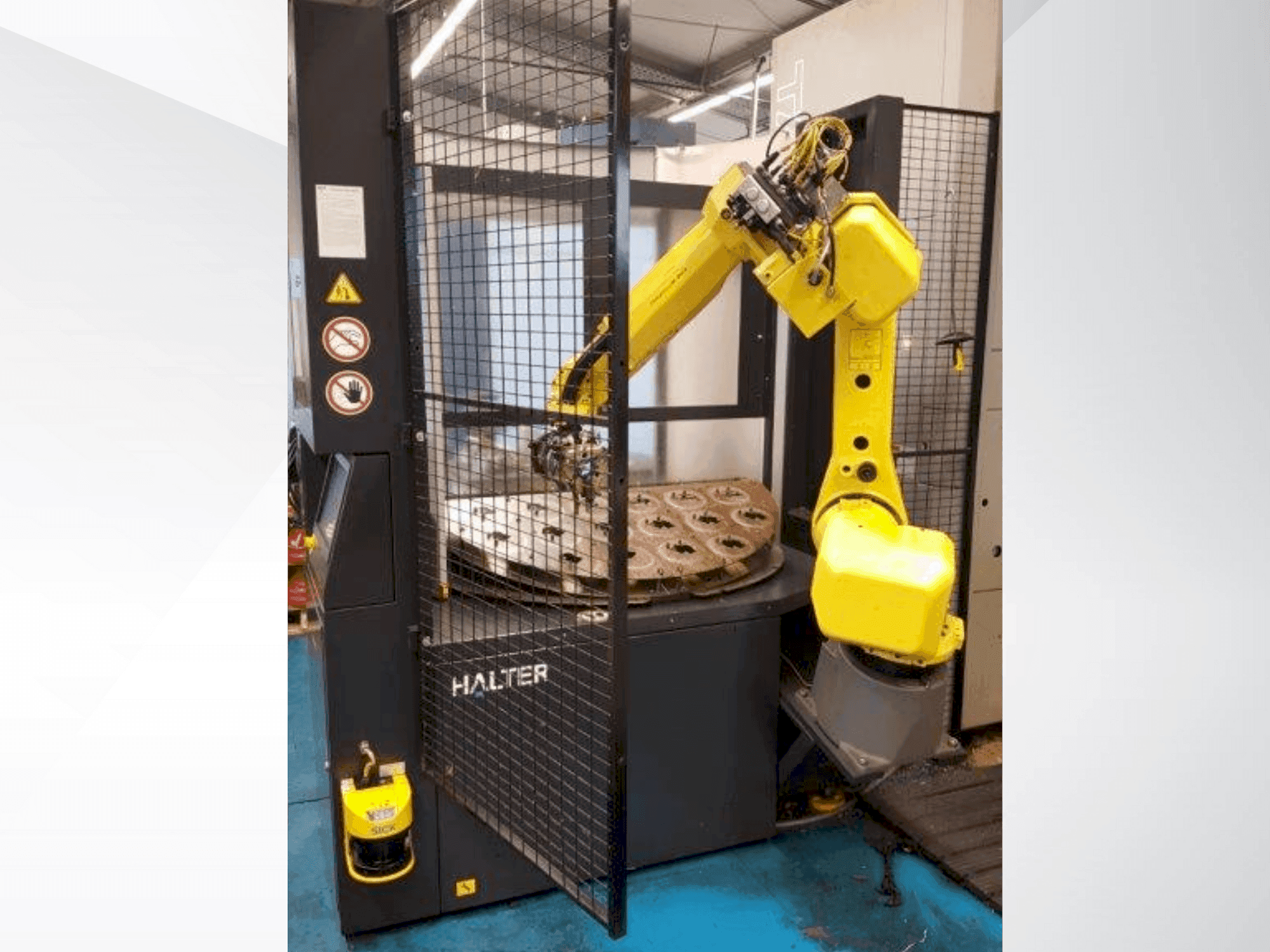

Front view of HALTER LoadAssistant 20 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

HALTER LoadAssistant 20

Photo Gallery

HALTER - LoadAssistant 20DE-ROB-HAL-2015-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Automation Equipment
➤ Used HALTER LoadAssistant 20 For sale | gindumac.com

Show in original language

This 6-axis HALTER LoadAssistant 20 robot was manufactured in 2015. It features a FANUC 6-axis robot arm with a maximum capacity of 20 kg and a FANUC DCS monitoring system. The HALTER SmartControl ensures easy operation, and its rotating loading system efficiently handles eccentric workpieces. Dimensions are 1750mm x 1434mm x 2220mm, weighing 1110 kg. For more information about this robot, please reach out to us.

Overview

brand: HALTER
year: 2015
MODEL: LoadAssistant 20
application type: Other Automation Equipment
Location: Germany
machine type: Work Piece Handling System
control unit brand: FANUC

Technical Information - HALTER LoadAssistant 20

General Data

Measurements width: 1434 mm
Measurements depth: 1750 mm
Measurements height: 2220 mm
Machine weight: 1110 kg

Control Unit

Brand: FANUC

Main drive

Number of axis: 6

Media

Air pressure: 6 Bar

Additional Information

Additional equipment

HALTER SmartControl
Graphic display of machine utilization
Rotating loading system
Loading and unloading of eccentric workpieces // Workpiece turning function
Clamping device monitoring
Turning gripper set LoadAssistant U-20
Schunk 3-finger gripper, double gripper
Separate gripper for raw and finished workpieces
Quick-change system for gripper // Quick adjustment for gripper fingers
Compressed air monitoring by sensor

Machine Benefits

Technical Machine Benefits

Workpiece diameter: 10 mm - 230 mm
Input voltage: 400v
Peak consumption: 16a

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
