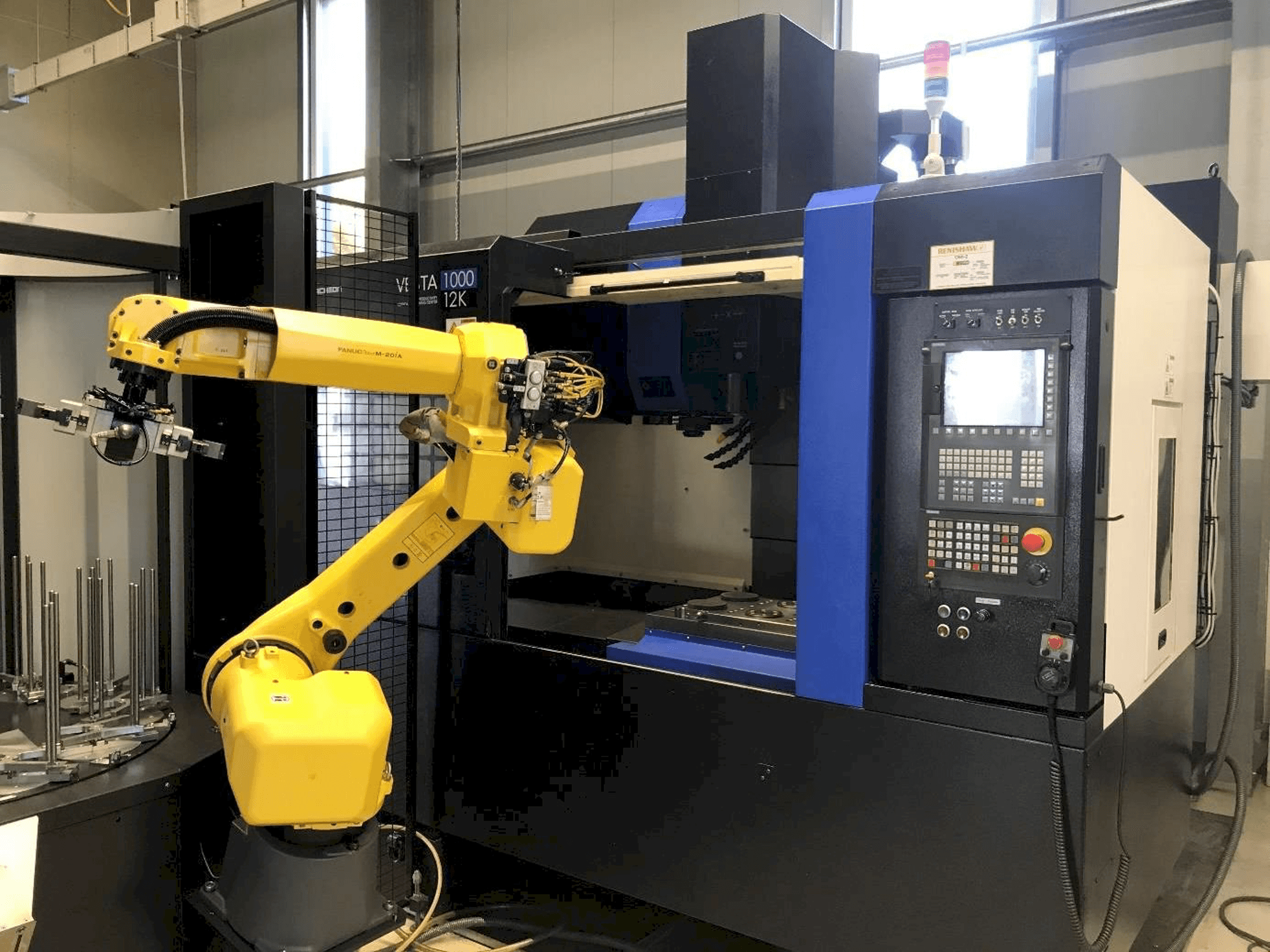

HALTER Automation Load Assistant S-180-20

Machine Benefits

• Technical Machine Benefits:
  • - Fanuc 6 axis robot arm: 20/ 35 kg
  • - Max workpiece: 40 mm x 40 mm
  • - Maximum height of workpiece: 175 mm
  • - Maximum total weight on rotating table: 1250 kg
  • - Maximum stacking height: 350 mm
  • - Rotating loading
  • - High safety full cladding
  • - Workpiece turning function
  • - Collecting tray for residual coolant
  • - Standard robot interface for all cnc machines
• Qualitative Machine Benefits:
  • - Maximum load capacity of the robot arm 20kg
  • - Graphically supported programming in 12 steps
  • - Adjustable blow-out function- 2-finger double gripper from schunk
  • - Loading and unloading of eccentric workpieces
  • - Automatic program storage
  • - Program integration of free programming cycles possible
  • - Graphic display of machine utilization
  • - Swiveling control panel with 15" touchscreen
