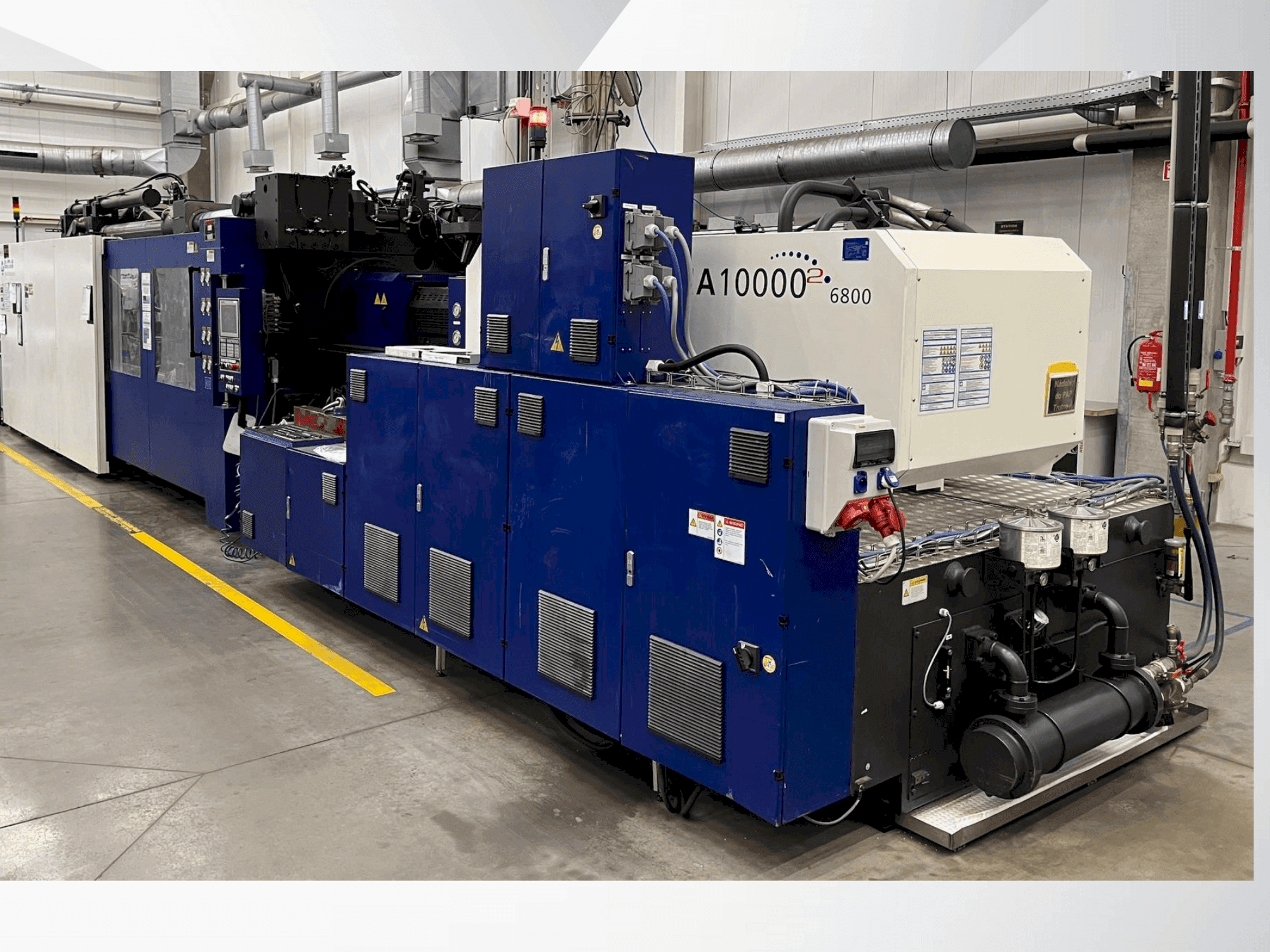

This HAITIAN MARS MA10000 II was manufactured in 2016. It's a hydraulic injection moulding machine, ideal for efficient and precise large-scale production. Consider the opportunity to buy this HAITIAN MARS MA10000 II hydraulic injection moulding machine. Contact us for more information.
Overview
- brand: HAITIAN
- year: 2016
- MODEL: MARS MA10000 II
- application type: Injection Moulding
- Location: Switzerland
- machine type: Hydraulic Injection Moulding Machine
Additional Information
Machine Benefits
Technical Machine Benefits
- Screw diameters: a: 90 mm b: 100 mm c: 110 mm d: 120 mm
- Calculated injection volumes: a: 2990 cm³ b: 3691 cm³ c: 4467 cm³ d: 5318 cm³
- Injection capacities (ps): a: 2721 g b: 3359 g c: 4085 g d: 4838 g
- Injection speed rates: a: 544 g/s b: 671 g/s c: 812 g/s d: 967 g/s
- Injection stroke: 470 mm / injection stroke: 470 mm / heating input power: 84 kw
- Clamping force: 10000 kn / space between tie-bars (hxv): 1160x1160 mm
- Die height available: max: 1160 mm/ min: 500 mm
- Motor opening stroke: 1220 mm
- Dimensions of machine (lxwxh): 12. 3 x 2. 92 x 3. 75 m / weight (kg): 50500 kg
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
