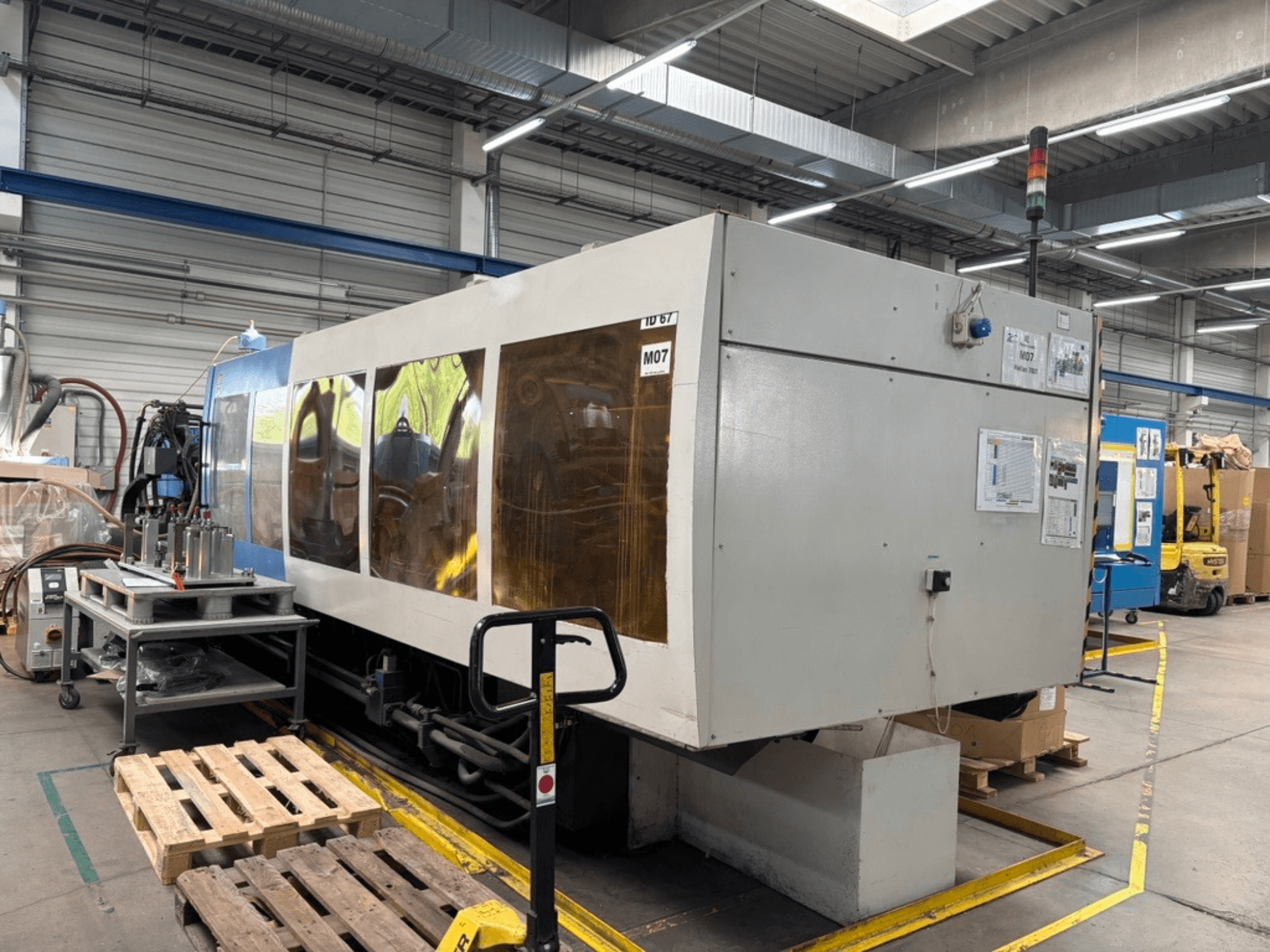

Hydraulic injection moulding machine manufactured in 2011. This HAITIAN 7000/5000 features a clamping force of 7,000 kN and a toggle stroke of 970 mm. It has a maximum mold height of 940 mm and a screw diameter of 90 mm, providing significant injection capabilities. If you are looking to get high-quality injection moulding capabilities, consider the HAITIAN 7000/5000 machine we have for sale. Contact us for further details.
Overview
- brand: HAITIAN
- year: 2011
- MODEL: 7000/5000
- application type: Injection Moulding
- Location: Czech Republic
- machine type: Hydraulic Injection Moulding Machine
Technical Information - HAITIAN 7000/5000
Technical Specification
- Clamping Force: 7000 kN
- Screw Diameter: 90 mm
Additional Information
Toggle stroke: 970 mm (38.19")
Space between tie bars (H × V): 960 × 940 mm
Mold platen dimensions (H × V): 1,405 × 1,386 mm
Maximum mold height: 940 mm
Minimum mold height: 400 mm
Maximum open daylight: 1,910 mm
Ejector stroke: 260 mm
Ejector force: 186 kN
Theoretical shot volume: 2,863 cm³
Injection weight (PS): 2,605 g
Injection pressure: 1,770 bar
Plasticizing capacity (PS): 88.9 g/sec
Screw speed: 0–145 RPM
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
