- HAGEN&GOEBEL E 1 S – 160 NC
Show in original language

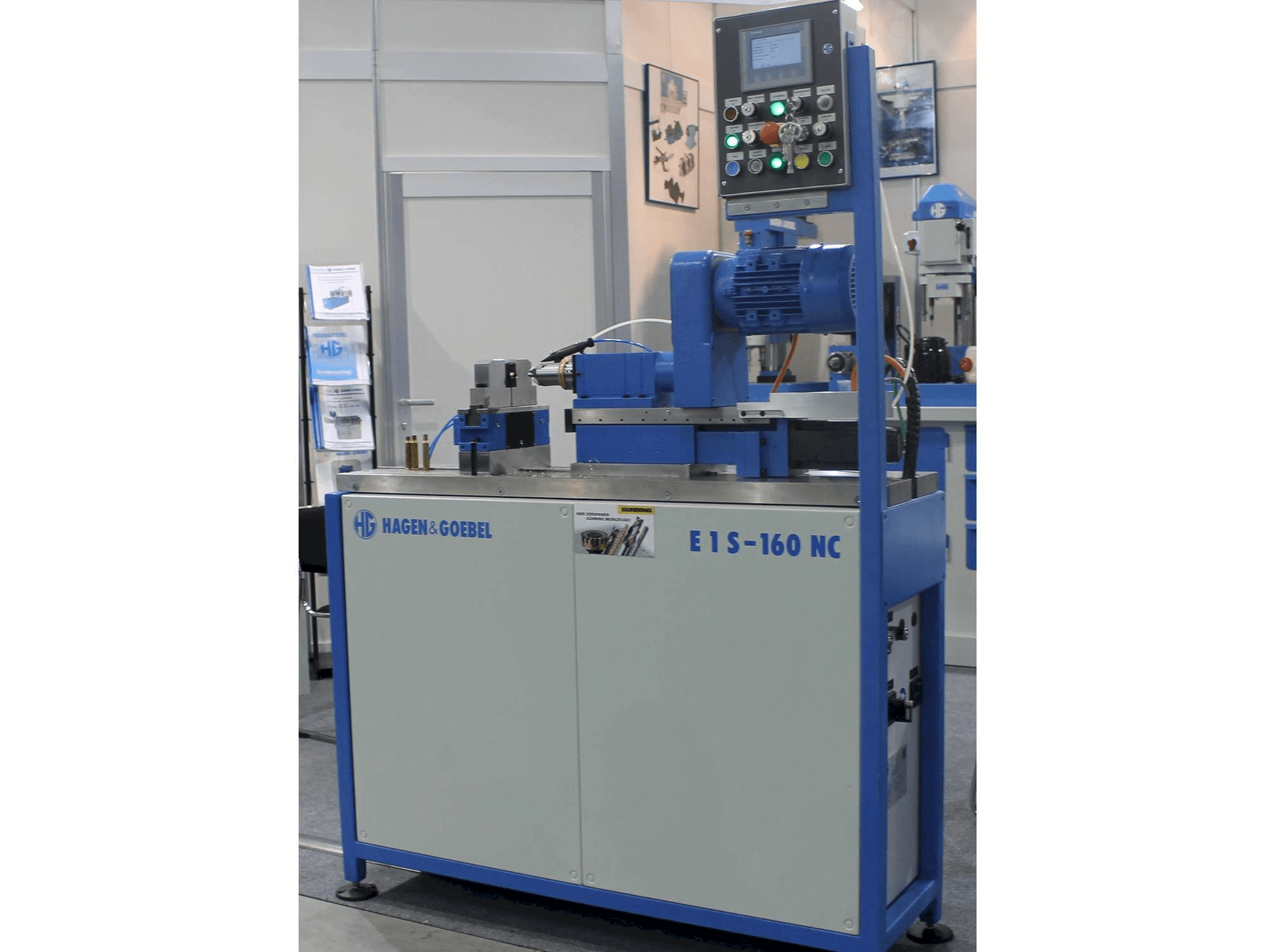

This HAGEN&GOEBEL E 1 S – 160 NC Drilling Machine was manufactured in the year 2016. It is equipped with a SIEMENS SIMATIC HMI control unit. This machine works with a spindle speed range 25-3000 rpm and through a front clamping system HSK-C size 50.
Overview
- brand: HAGEN&GOEBEL
- year: 2016
- MODEL: E 1 S – 160 NC
- application type: Other Machine Tools
- Location: Germany
- machine type: Drilling Machine (Metal)
- control unit brand: SIEMENS
Technical Information - HAGEN&GOEBEL E 1 S – 160 NC
Control Unit
- Control Brand: SIEMENS
- Control Model: SIMATIC HMI
Dimensions
- Machine Weight: 1200 kg
Technical Specification
- Spindle Speed: 3000 RPM
Additional Information
Machine Benefits
Technical Machine Benefits
- Workspace z axis: 150 mm
- Path measurement z axis: indirect displacement measurement via pulse generator
- Feed range in the z axis over program 1-15000 mm/min, smallest programmable increment 0. 01 mm
- Front clamping system hsk-c size 50
- H&g type designation pz100/pz130
- Possible clamping range (with jaw change) 5-100 mm or 6-130 mm
- Centring accuracy +- 0. 05 mm
- Max. Diameter 102 mm
- Capacity approx. 120 l.
- Pressure max. 1. 3 bar
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
