HACO HSLX 3013

Photo Gallery

HACO - HSLX 3013IE-SHE-HAC-2001-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

Show in original language

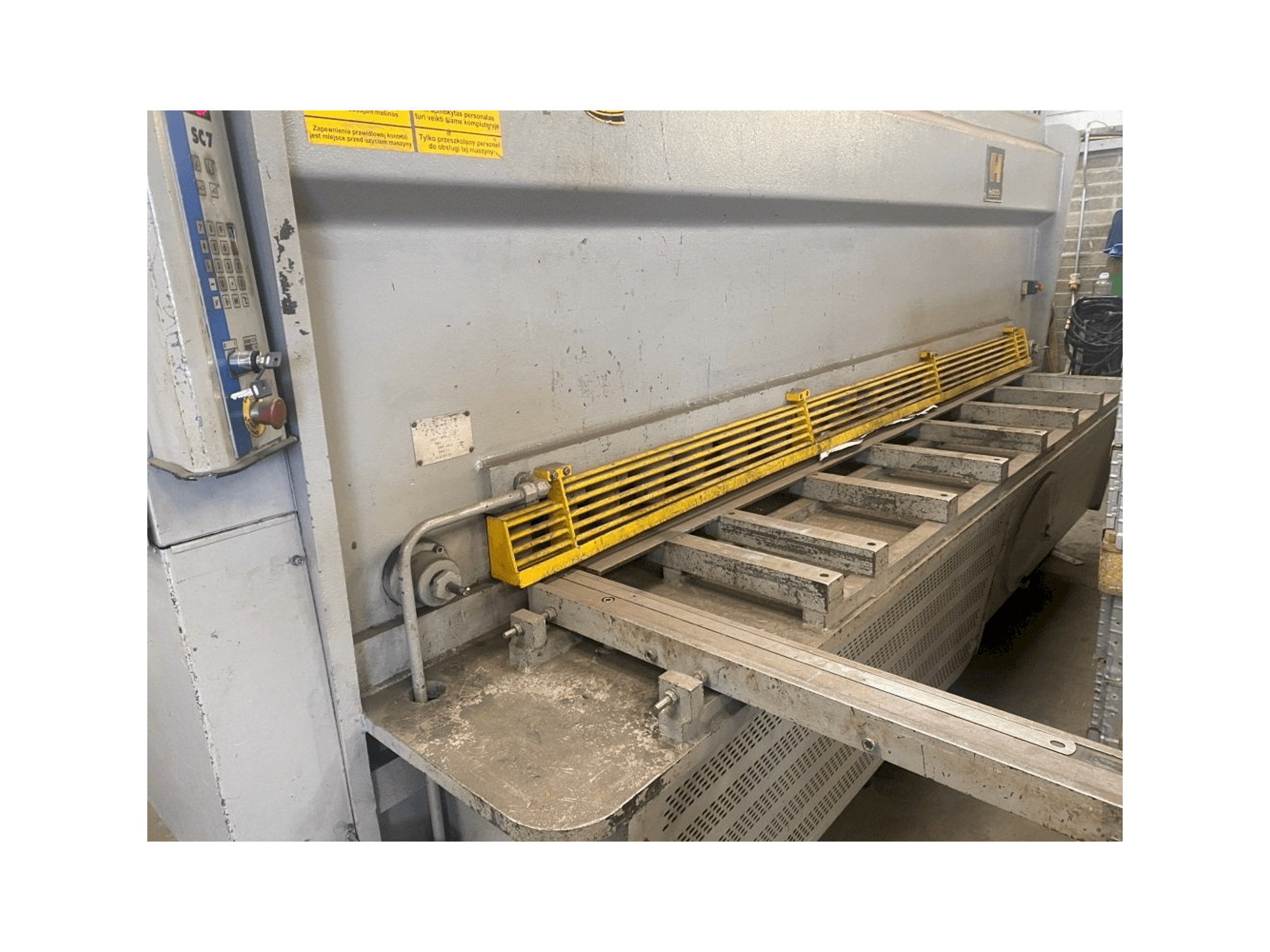

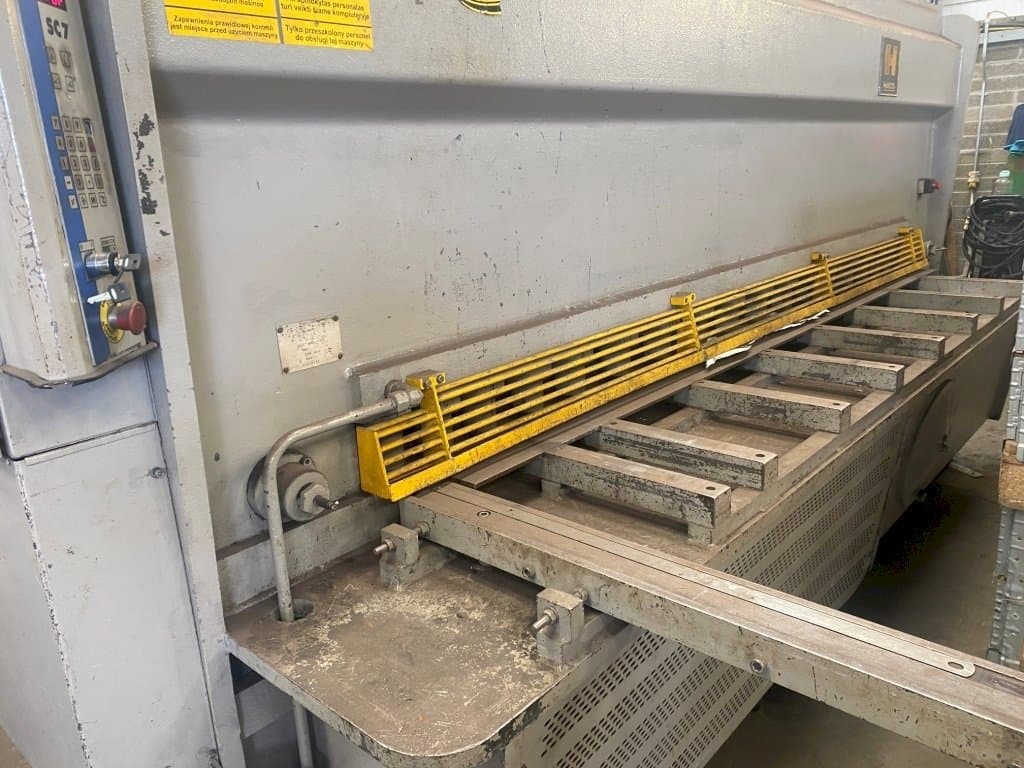

This HACO HSLX 3013 Shearing Machine was manufactured in Belgium in 2001. This machine is operated through an HACO SC7 control unit. It works with large capacity shears, performing a shearing length 3050 mm and a steel thickness 13 mm. This machine has mainly worked in the past with mildsteel 6-8 mm in the storage tank industry.

Overview

brand: HACO
year: 2001
MODEL: HSLX 3013
application type: Shearing
Location: Ireland
machine type: Hydraulic Shearing Machine
availability: Sold
control unit brand: HACO

Technical Information - HACO HSLX 3013

General Data

Measurements width: 4190 MM
Measurements depth: 1995 MM
Measurements height: 2275 MM
Machine weight: 9500 KG

Control Unit

Model: SC7
CNC main language: ENGLISH
Brand: HACO

Workpiece

Workpiece x: 1000 MM
Workpiece y: 3050 MM

Table

Height adjustment: 930 mm

Max Material thickness

Steel: 13 MM

Media

Main electronic connection: 380 V

Additional Information

Machine history

Material type: Mildsteel
Material thickness: 6-8 mm
End product: Storage tanks
Industries: Storage tank industry

Machine Benefits

Technical Machine Benefits:
- - Large capacity shears
- - Shearing lenght 3050 mm
- - Cutting angle adjustment: 0. 5-3 degrees
- - Number of hold downs: 18
- - Max strokes/min: 17
- - Back gauge stroke: 1000 mm
- - Motor power: 22 kw

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
