➤ Used HAAS VF4SS Machining Center For Sale | gindumac.com

Show in original language

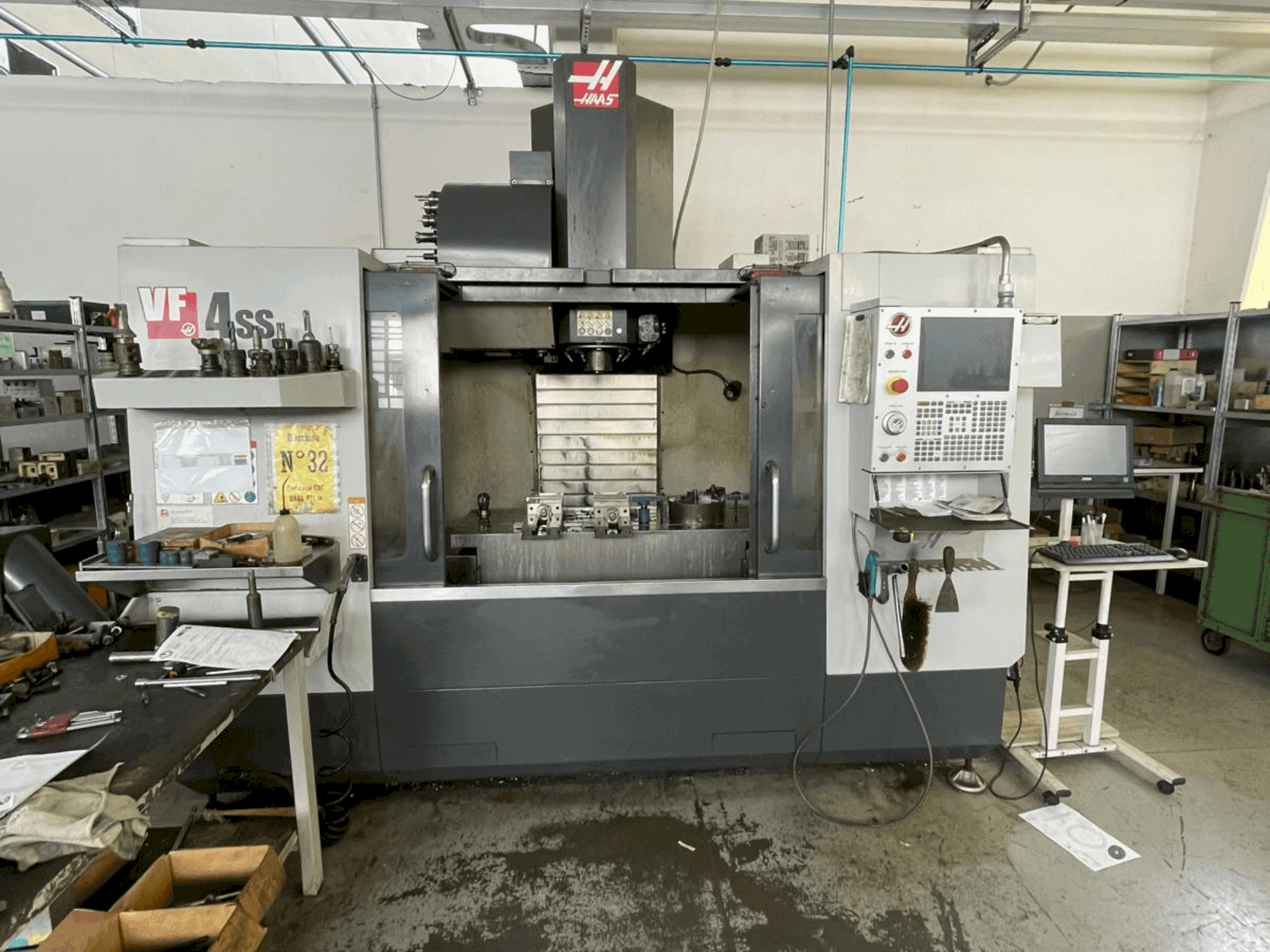

This 3-axis HAAS VF4SS vertical machining center was manufactured in 2019. It features a spindle with a maximum speed of 12,000 rpm and a power of 22.4 kW. The machine offers a travel range of X=1270 mm, Y=508 mm, Z=635 mm, and a rapid feedrate of 35.6 m/min on all axes. The table can support up to 794 kg. Consider the opportunity to buy this HAAS VF4SS vertical machining center. Contact us for more information.

Overview

brand: HAAS
year: 2019
MODEL: VF4SS
application type: Milling
Location: Italy
machine type: Vertical Machining Centre
control unit brand: HAAS

Technical Information - HAAS VF4SS

General Data

Measurements width: 2600 mm
Measurements depth: 3870 mm
Measurements height: 2770 mm
Machine weight: 6260 kg

Control Unit

Brand: HAAS
Model: na

Main drive

Spindle speed range: 12000 rpm 1/MIN
Spindle motor power: 224 kW
Tool taper: CT40 / BT40 / HSK-A63
Number of axis: 3

Movement

X-AXIS Movement: 1270 mm
Y-AXIS Movement: 508 mm
Z-AXIS Movement: 635 mm

Table

Table load: 794 kg

Turret

Number of tool slots: 5

Tools

Max weight: 5.4 kg
Max tool length: 330 mm

Additional equipment

- Technical manuals and documentation
- Chip conveyor
- Optional tools included
- Loading at our facility available

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max torque: 122 nm @ 2000 rpm
- - Liquid cooled – air/oil lubrication
- - Size: 1321 x 495 mm
- - Type: smtc – 30+1 tool positions
- - Tool change time: 1. 8 s
- - Rapid: 35. 6 m/min on all axes
- - Max thrust z-axis: 17459 n
- - Voltage: 220/440 v – 3
- - Phase max current draw: 70 a (at 220 v)

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
