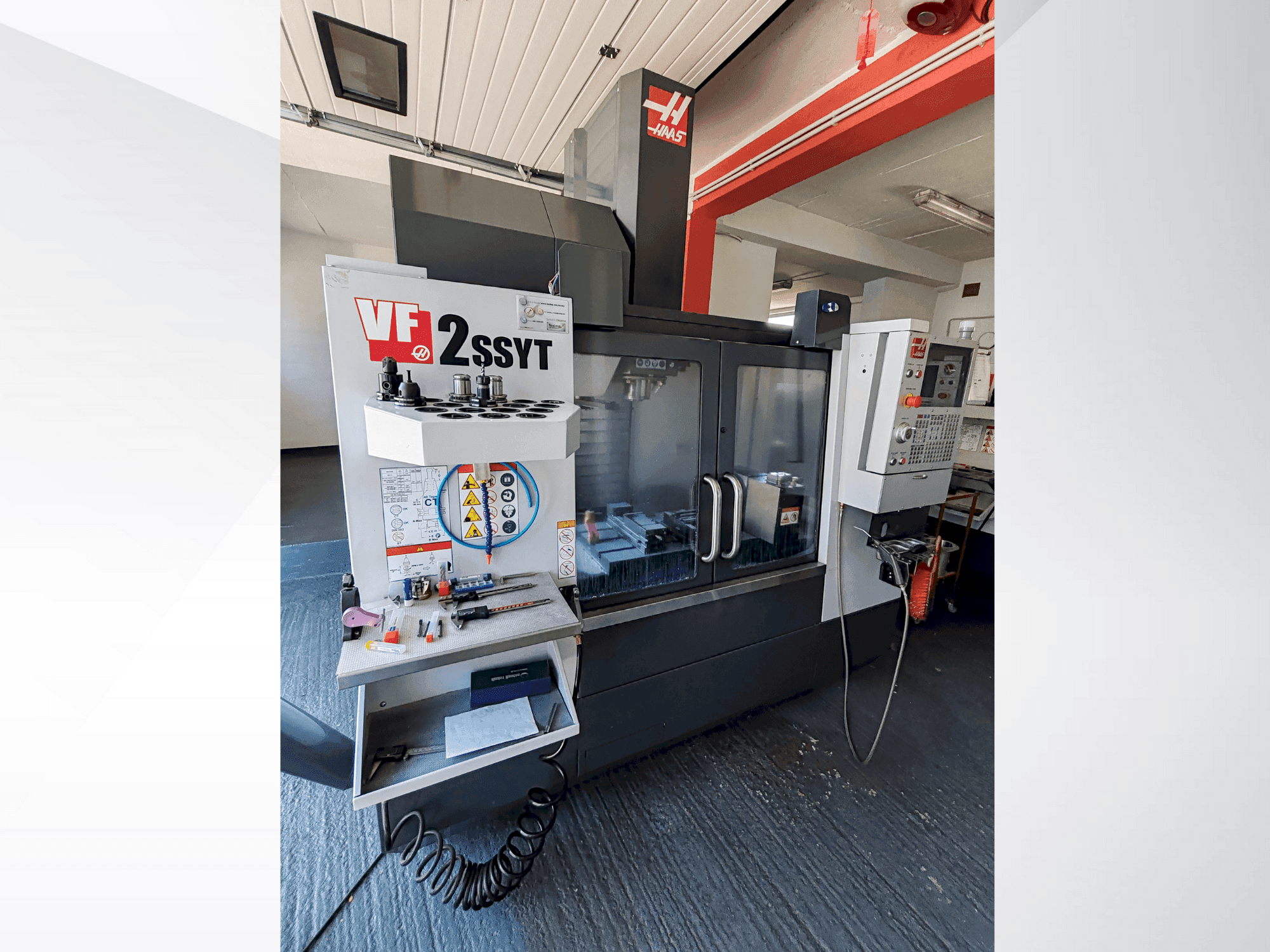

This 5-axis HAAS VF 2 SS YT vertical machining center was manufactured in 2020. Ideal for precision machining, it offers robust construction and advanced control technology. If you are looking to get high-quality milling capabilities, consider the HAAS VF 2 SS YT machine we have for sale. Contact us for more information.
Overview
- brand: HAAS
- year: 2020
- MODEL: VF 2 SS YT
- application type: Milling
- Location: Croatia
- machine type: Vertical Machining Centre
- control unit brand: HAAS
Technical Information - HAAS VF 2 SS YT
Control Unit
- Control Brand: HAAS
Movement
- X-axis Travel: 762 mm
- Y-axis Travel: 508 mm
- Z-axis Travel: 508 mm
Technical Specification
- Spindle Power: 22.4 kW
- Spindle Speed: 12000 RPM
Additional Information
Additional equipment
- Type: Side-Mount (SMTC)/ Capacity: 30+1/ Max Tool Diameter (full): 64 mm/ Max Tool Diameter (adjacent empty): 127 mm/ Max Tool Length: 279 mm /Max Tool Weight: 5.0 kg
- Tool-to-Tool (avg): 1.80 s/ Chip-to-Chip (avg): 2.40 s
- Included: HRT210
Machine Benefits
Technical Machine Benefits
- Torque: 122 nm at 2000 rpm
- Drive system: inline direct-drive
- Taper: bt40 / ct40 / hsk-a63
- Lubrication: air/oil injection/cooling: liquid-cooled
- Max cutting feedrate: 21. 2 m/min / rapids on x, y, z-axis: 35. 6 m/min
- Coolant tank capacity: 208 l / through-spindle coolant pressure: 21 bar / through-tool air blast: yes / chip auger: yes / chip tray filter kit: yes / window air blast: yes / coolant pump: multi-stage
- Air consumption: 113 l/min at 6. 9 bar / minimum air pressure: 5. 5 bar / air hose connection: 3/8 in
- Standard interface: ethernet and wifi / control memory: 1 gb / remote monitoring: haasconnect / high-speed machining: included / advanced tool management: included /media display (m130): included / power failure detection: included /safe run function: included / rigid tapping: included
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
