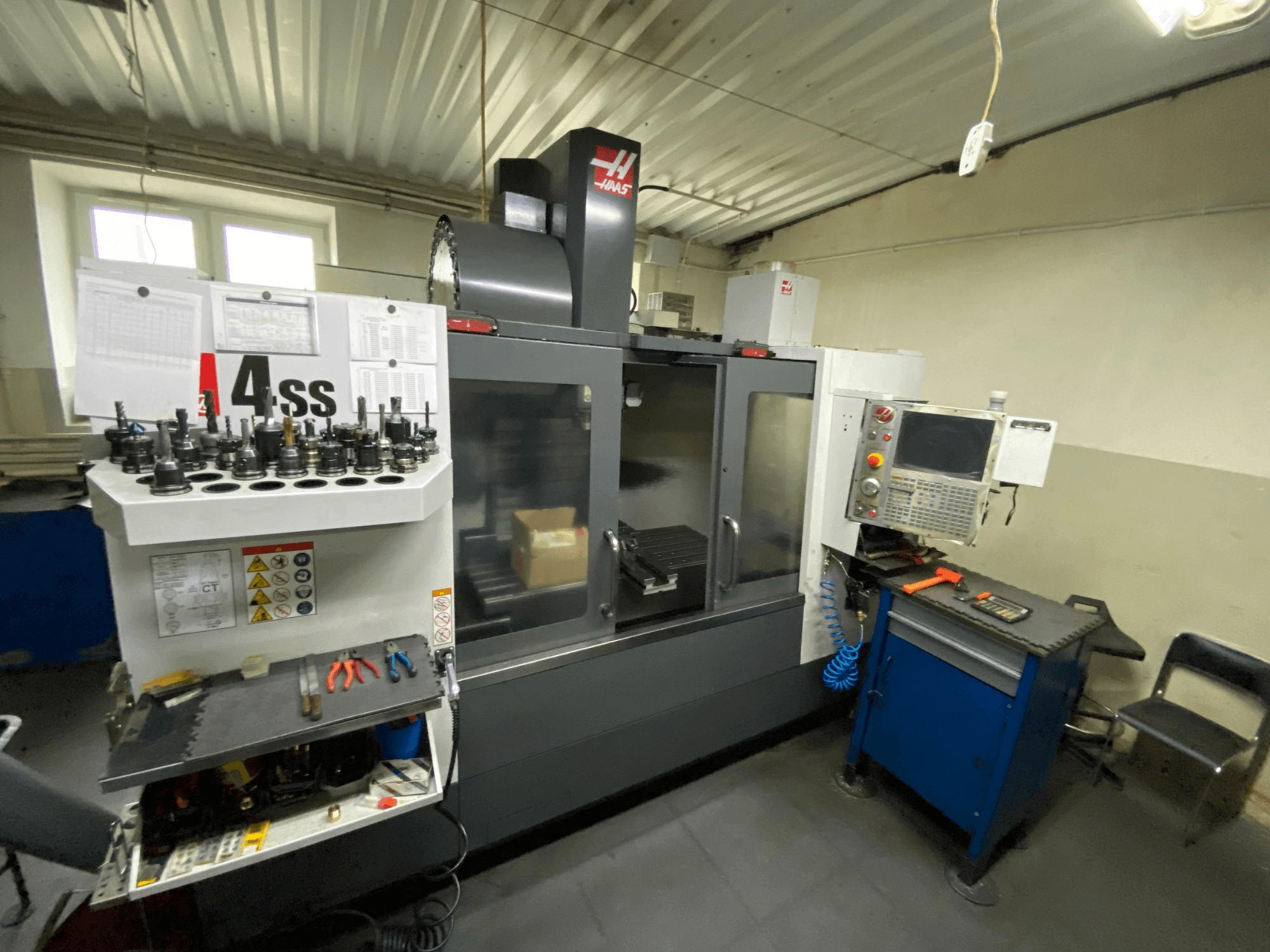

This 3-axis HAAS VF-4SS was manufactured in 2017. It features impressive travels of 1,270 mm in the X-axis, 508 mm in the Y-axis, and 635 mm in the Z-axis. The machine includes a robust table size of 1,321 x 457 mm and a maximum table load of 794 kg. If you are looking to get high-quality machining capabilities, consider the HAAS VF-4SS vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: HAAS
- year: 2017
- MODEL: VF-4SS
- application type: Milling
- Location: Poland
- machine type: Vertical Machining Centre
- control unit brand: HAAS
Technical Information - HAAS VF-4SS
Control Unit
- Control Brand: HAAS
- Control Model: NGC
Dimensions
- Machine Height: 2870 mm
- Machine Length: 3734 mm
- Machine Weight: 5443 kg
- Machine Width: 2489 mm
- Table Load: 794 kg
Movement
- Number of Axes: 3
- X-axis Travel: 1270 mm
- Y-axis Travel: 508 mm
- Z-axis Travel: 635 mm
Technical Specification
- Max. Tool Weight: 5.4 kg
- Spindle Power: 22.4 kW
- Spindle Speed: 12000 RPM
Additional Information
Table size: 1,321 x 457 mm
Spindle drive: Inline direct-drive
Tool changer: 30+1 side-mount
Max tool diameter (full / adjacent empty): 64 / 127 mm
Max tool length: 279 mm
Rapid traverses (X/Y/Z): 35.6 / 35.6 / 35.6 m/min
Cutting feedrate: 21.2 m/min
Coolant system: Flood coolant
Through-spindle coolant (TSC): Yes
Coolant tank capacity: 208 l
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
