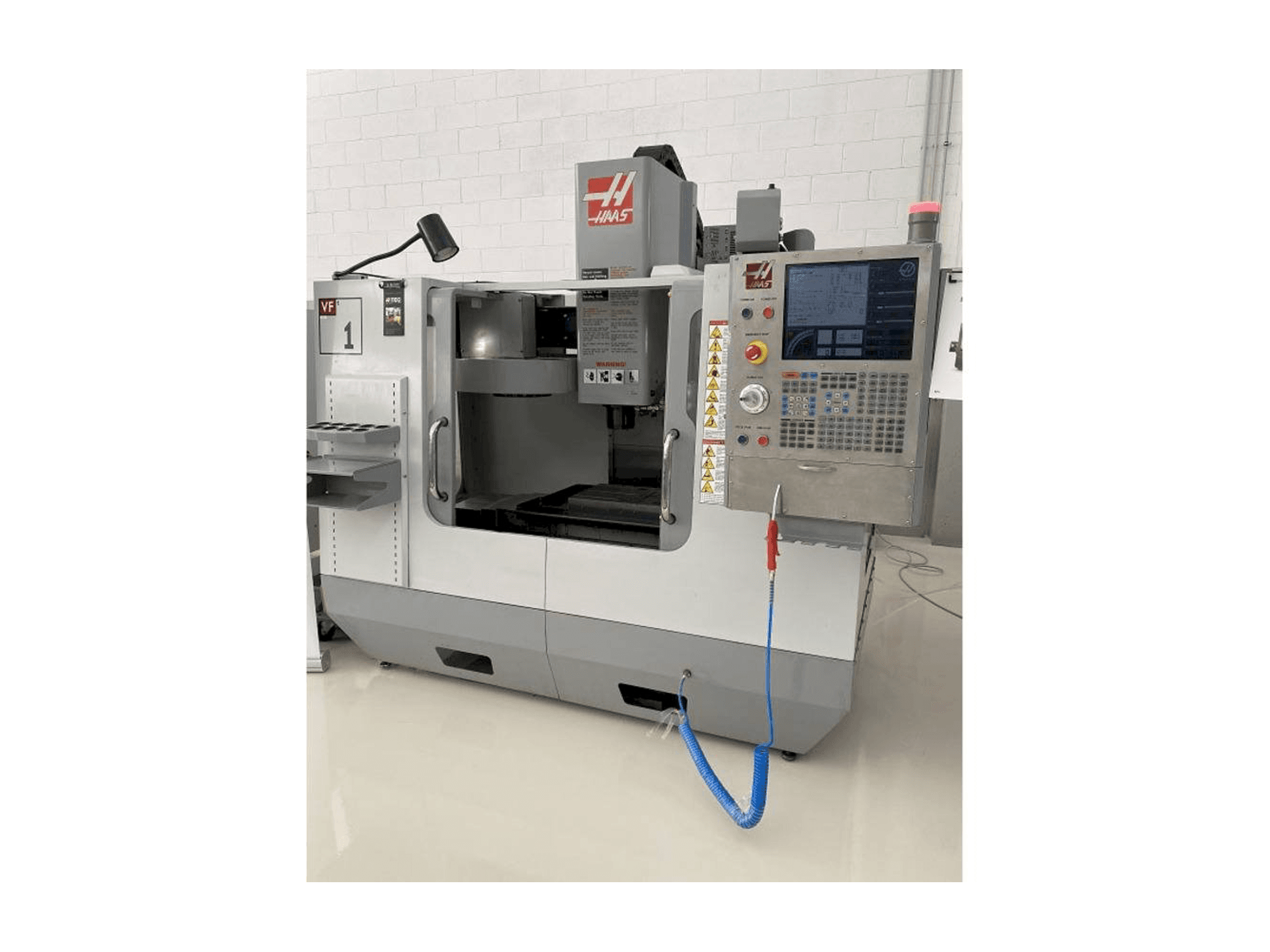

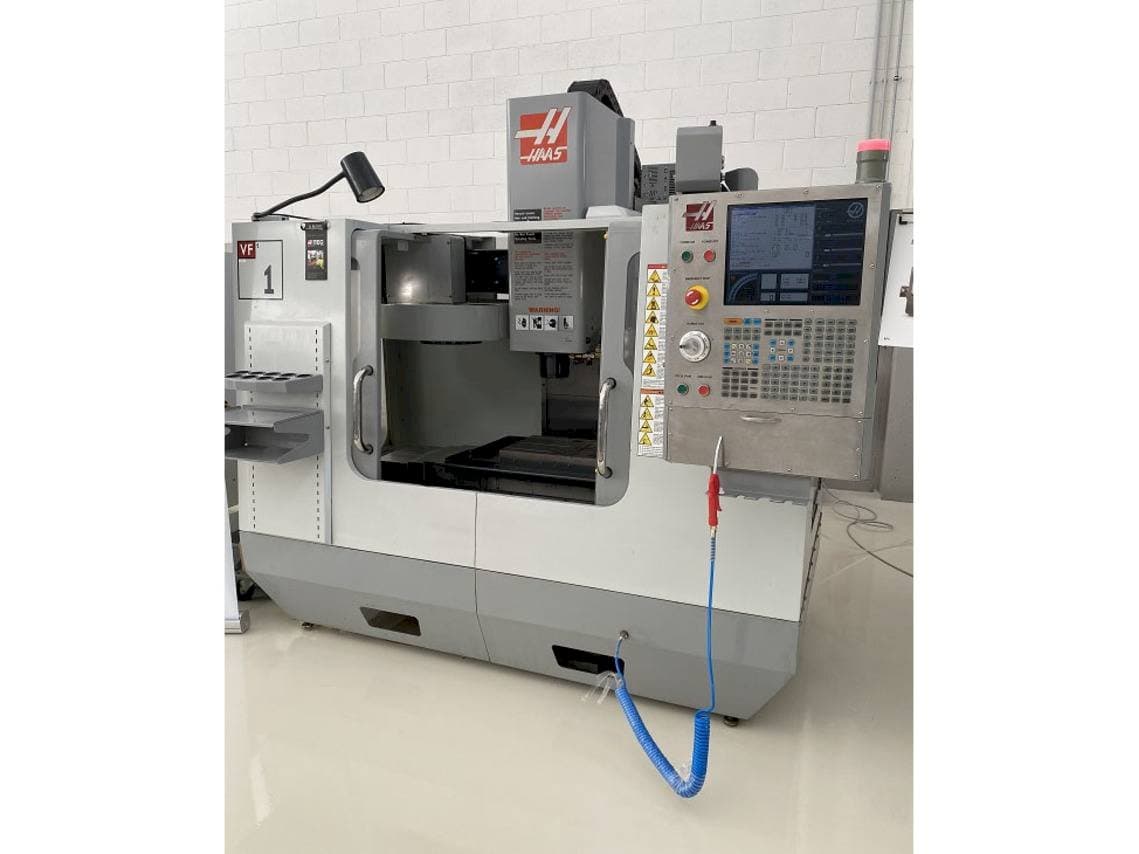

HAAS VF-1 vertical machine center

Show in original language

This HAAS VF-1 vertical machine center was made in the year 2008 and has 4958 working hours. It is equipped with a Haas control unit and has 3 axis. The machine has a spindle speed of 7500 rpm and is in perfect condition, like new.

Overview

brand: HAAS
year: 2008
MODEL: VF-1
production hours: 4958
application type: Milling
Location: Italy
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HAAS

Technical Information - HAAS VF-1

General Data

Measurements width: 2850 mm
Measurements depth: 1950 mm
Measurements height: 2600 mm
Machine weight: 3400 kg

Control Unit

Brand: HAAS

Main drive

Spindle speed range: 7500 1/MIN
Spindle motor power: 14.9 KW
Number of axis: 3

Movement

X-AXIS Movement: 508 mm
X-AXIS Rapid traverse: 25.4 m/min
Y-AXIS Movement: 406 mm
Y-AXIS Rapid traverse: 25.4 m/min
Z-AXIS Movement: 508 mm
Z-AXIS Rapid traverse: 25.4 m/min

Table

Table load: 780 kg

Media

Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle nose to platter 102mm
- - Maximum torque 252nm/600rpm
- - Bt40 cone
- - Cutting speed max. 16. 5 m/min
- - Max thrust x/y/z xy14680z18015n
- - Carousel tool changer
- - Tool change capacity 20 fixed positions
- - Rs232 and usb communication interface
- - Drives and 4th axis wiring
- - Internal and external service light

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
