HAAS UMC - 750

Photo Gallery

HAAS - UMC - 750GB-MIL-HAA-2018-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

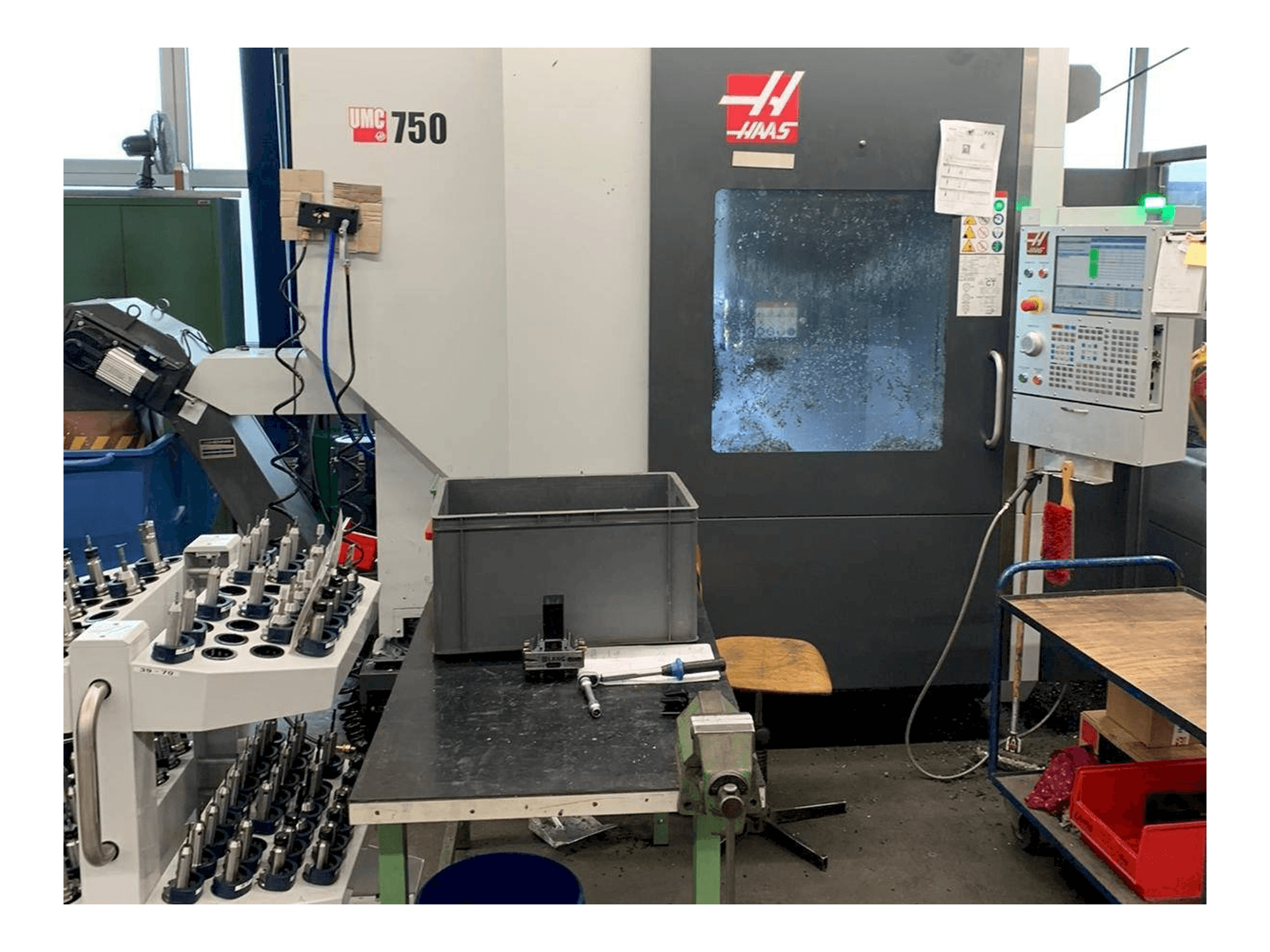

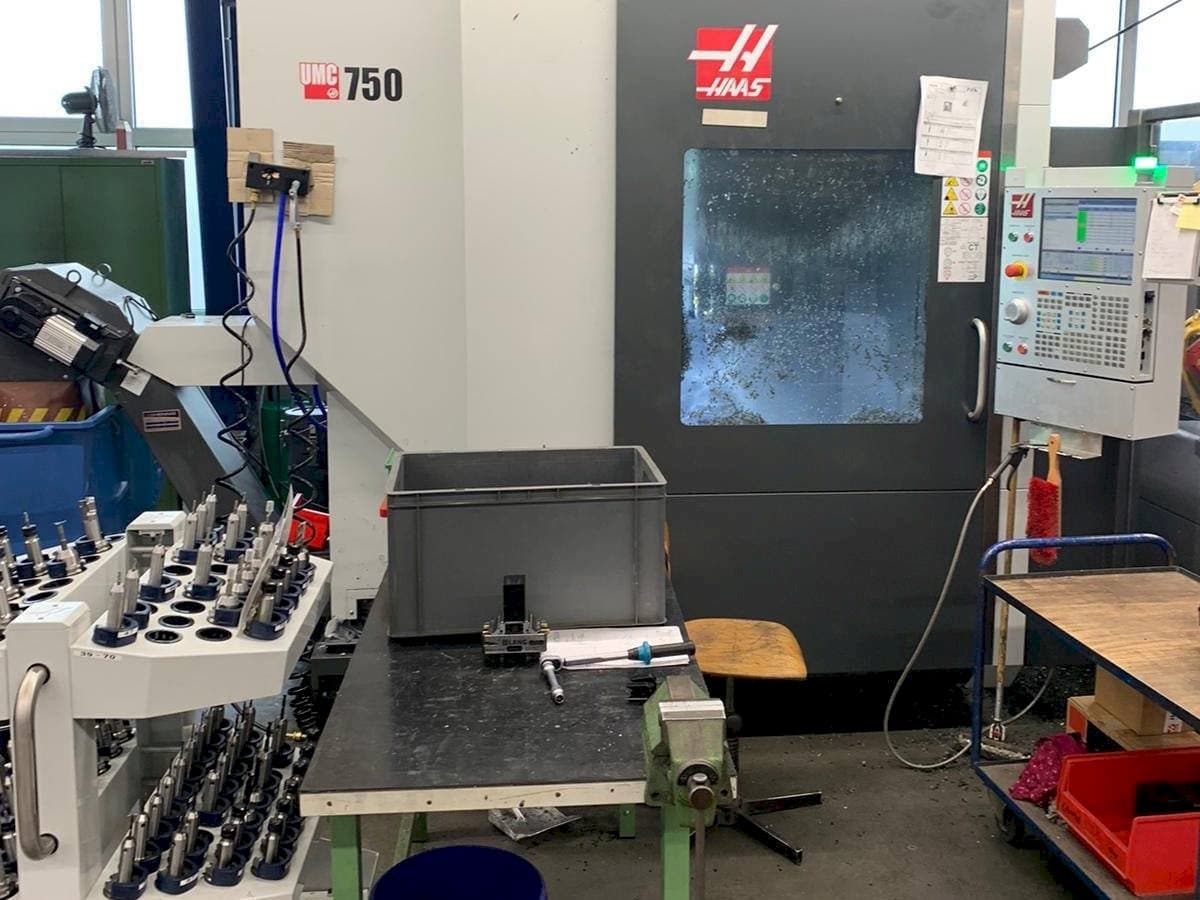

HAAS UMC - 750 Vertical Machining Center

Show in original language

This HAAS UMC - 750 Vertical Machining Center was manufactured in 2018 in the United States. This perfectly good machine can work with a spindle speed up to 12000 rpm.

Overview

brand: HAAS
year: 2018
MODEL: UMC - 750
application type: Milling
Location: United Kingdom
machine type: Vertical Machining Centre
control unit brand: HAAS

Technical Information - HAAS UMC - 750

Control Unit

Control Brand: HAAS

Dimensions

Machine Depth: 2387 mm
Machine Height: 2565 mm
Machine Weight: 8700 kg
Table Length: 500 mm
Table Width: 500 mm

Movement

X-axis Travel: 762 mm
Y-axis Travel: 508 mm
Z-axis Travel: 508 mm

Technical Specification

Number of Tools: 40
Spindle Power: 22.4 kW
Spindle Speed: 12000 RPM

Additional Information

Machine Benefits

Qualitative Machine Benefits

Interlocked guards
Remote hand wheel
Hard disk 1gb
Usb port

Technical Machine Benefits

Feedrate 16. 5 m/min
Rapid feedrate 30. 5 m/min
Through spindle coolant
B axis: +110°/-35°
C axis: 360°

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
