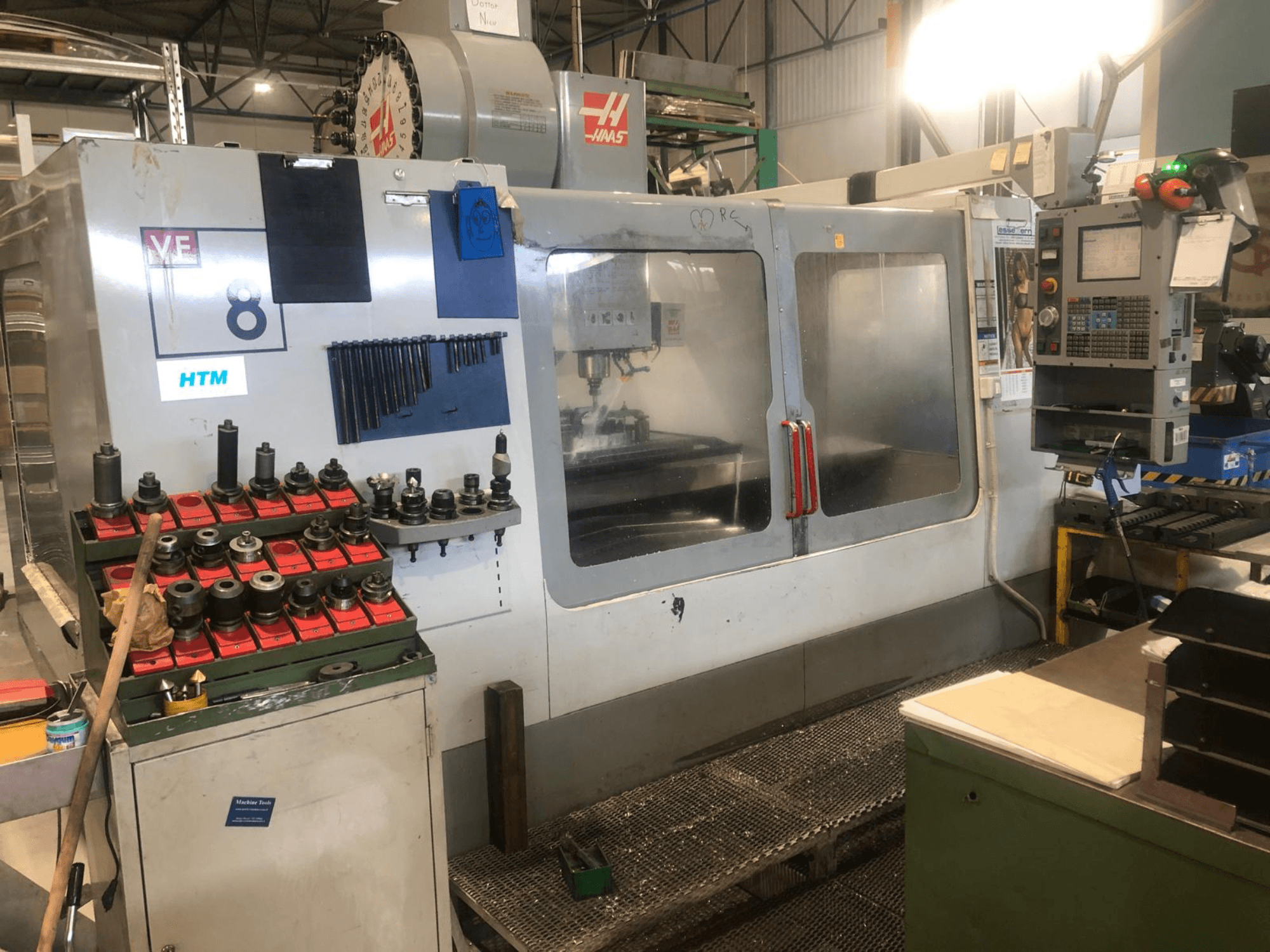

Haas CNC machine in a workshop, front view; displays tools and controls, with visible model details and organized tool holders.
Haas CNC machine in a workshop, front view; displays tools and controls, with visible model details and organized tool holders.

HAAS - VF-8 IT-MIL-HAA-2003-00001

Rs. 6,864,082
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 3-axis HAAS VF-8 vertical machining center was manufactured in 2003. It features a 1626 x 1016 x 762 mm travel range, a 15.4 kW spindle power, and a maximum spindle speed of 7500 rpm. Equipped with a BT-40 tool holder, a 24+1 position tool changer, and a screw-type chip conveyor. If you are looking to get high-quality milling capabilities consider the HAAS VF-8 machine we have for sale. Contact us for more information.

Overview

  • brand: HAAS
  • year: 2003
  • MODEL: VF-8
  • application type: Milling
  • Location: Italy
  • machine type: Vertical Machining Centre

Technical Information - HAAS VF-8

Movement

  • Number of Axes: 3
  • X-axis Travel: 1626 mm
  • Y-axis Travel: 1016 mm
  • Z-axis Travel: 762 mm

Technical Specification

  • Spindle Power: 15 kW
  • Spindle Speed: 7500 RPM
  • Taper Size: BT 40

Additional Information

  • Distance spindle–table: 102 mm

  • Max cutting feed: 12 m/min

  • Rapid feed (X/Y/Z): 18 m/min

  • Tool changer type: Random vertical

  • Tool magazine capacity: 24 + 1 positions

  • CNC memory: 1 MB

  • Monitor: 15" color

  • Data interface: RS232

  • Rigid tapping: Yes

  • Options/features included:

    • 2-speed gearbox spindle

    • 4th axis drive and wiring

    • Intuitive programming system

    • Coordinate rotation system

    • Macro variables and scaling functions

    • Programmable coolant nozzle

    • Internal work light

Additional equipment

  • Screw-type chip conveyor

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
