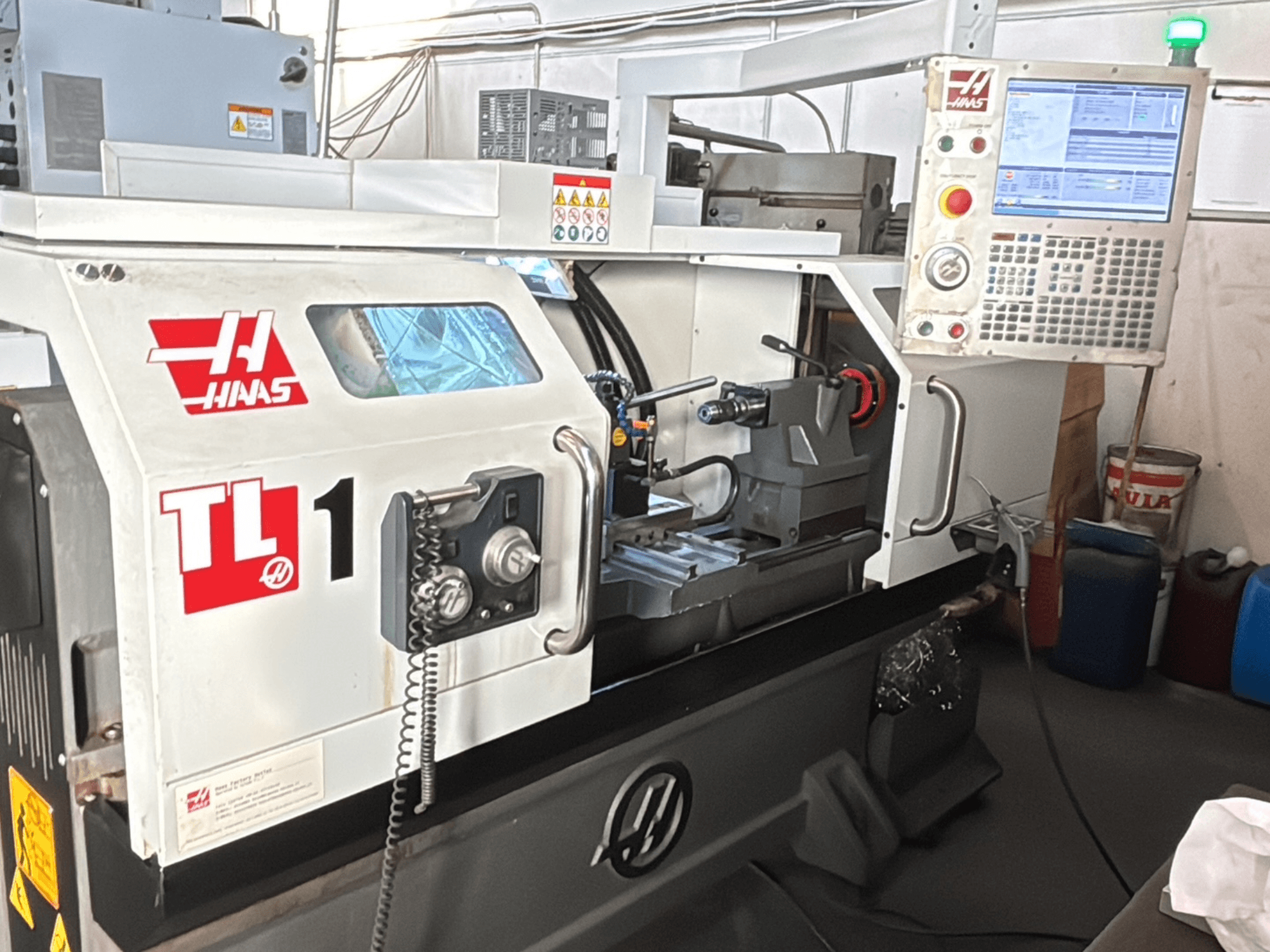

This HAAS TL1 was manufactured in 2020. A robust horizontal turning machine featuring a swing diameter over front apron of 508 mm and a maximum cutting length of 762 mm. It supports a spindle speed up to 1800 rpm with a maximum torque of 146 Nm at 355 rpm. Ideal for detailed turning operations. Contact us for more information about this machine.
Overview
- brand: HAAS
- year: 2020
- MODEL: TL1
- application type: Turning
- Location: Italy
- machine type: Horizontal Turning Machine
Technical Information - HAAS TL1
Dimensions
- Machine Weight: 2223 kg
Movement
- Number of Axes: 2
- X-axis Travel: 203 mm
- Z-axis Travel: 762 mm
Technical Specification
- Spindle Power: 7.5 kW
- Spindle Speed: 1800 RPM
Additional Information
Swing diameter:
Over front apron: 508 mm
Over cross slide: 279 mm
Capacities:
Chuck (optional): 203 mm
Max cutting diameter (varies with turret): 406 mm
Max cutting length (varies with workholding): 762 mm
Between centers: 762 mm
Feedrates:
Rapids X: 11.4 m/min
Rapids Z: 11.4 m/min
Axis motor thrust:
Max thrust X: 17,321 N
Max thrust Z: 8,661 N
Spindle:
Spindle nose: A2-5
Spindle bore: 58 mm
Max torque: 146 Nm @ 355 rpm
Air requirements:
Inline air hose: 3/8 in
Coupler: 3/8 in
Minimum pressure: 5.5 bar
Electrical requirements:
Drive system: Direct speed, belt drive
Input AC voltage (1‑phase): 220 VAC; Full load amps: 40 A
Input AC voltage (3‑phase, low): 220 VAC; Full load amps: 25 A
Input AC voltage (3‑phase, high): 440 VAC; Full load amps: 13 A
Shipping:
Pallet size (domestic & export): 234 × 176 × 211 cm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
