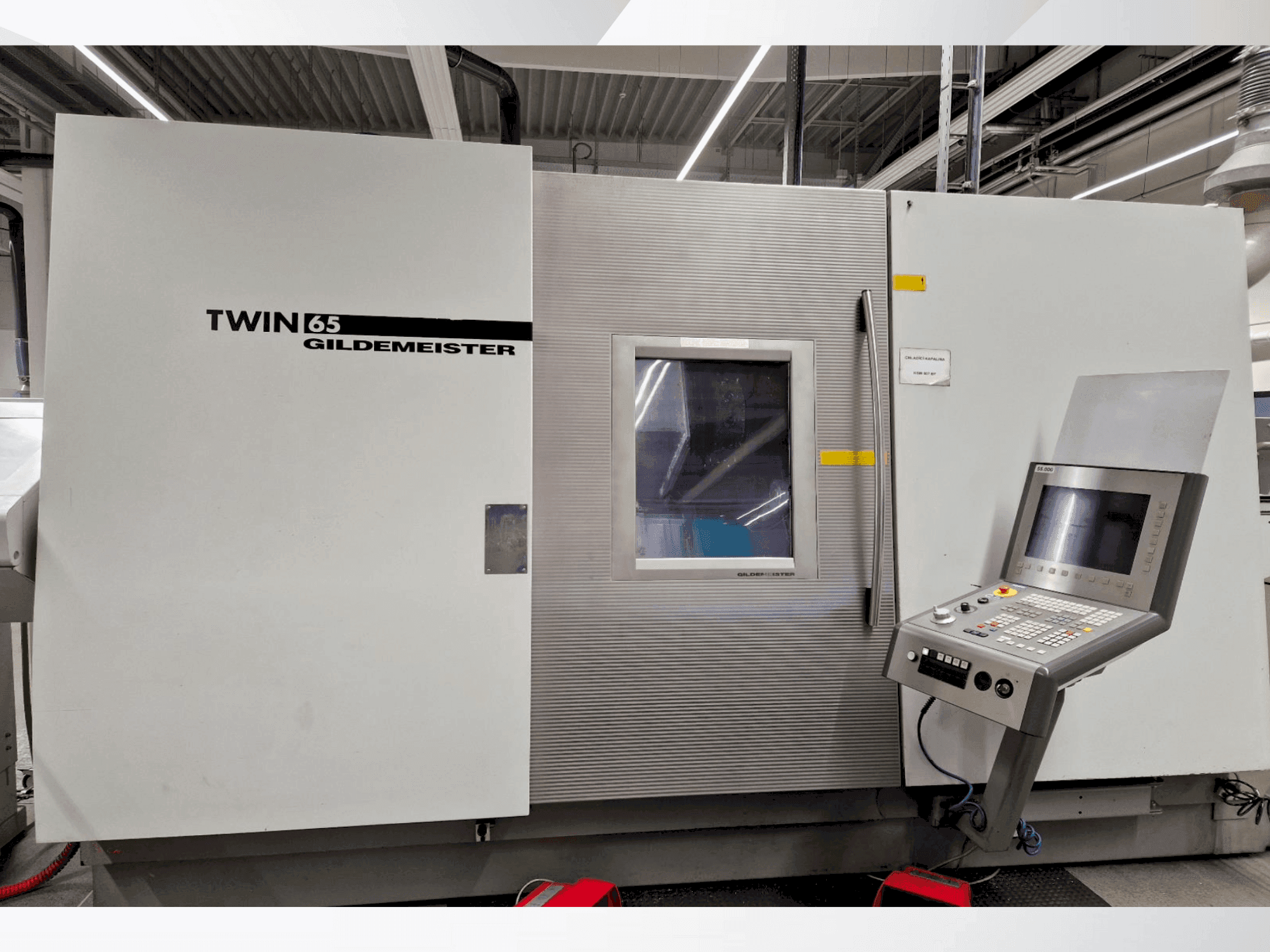

Front view of Gildemeister TWIN 65 (2004)  machine

Gildemeister TWIN 65

Gildemeister - TWIN 65

2004

Rs. 3,514,300
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 7-axis Gildemeister TWIN 65 lathe was manufactured in 2004. It is equipped with a Sinumerik 840D control system and features both a main and counter spindle with speeds up to 5000 rpm. The primary spindle drive offers a robust 35 kW of power, while the counter spindle delivers 26 kW, accommodating a rotation working range of Ø 250 mm for the main and Ø 120 mm for the counter spindle. Additionally, this lathe includes a bar feeder with a maximum diameter capacity of 62 mm. The Gildemeister TWIN 65 machine we have for sale is ideal for efficient, high-precision manufacturing. Reach out for more information about this lathe.

Overview

  • brand: Gildemeister
  • year: 2004
  • MODEL: TWIN 65
  • production hours: 72950
  • application type: Turning
  • Location: Austria
  • machine type: Lathe
  • availability: Immediately
  • GINDUMAC ID: AT-TUR-GIL-2004-00001

Technical Information

Controller

  • Brand: Sinumerik
  • Model: 840D

Main drive

  • Spindle speed range: 5000 1/MIN
  • Spindle motor power: 35 kW
  • Spindle bore: 65 mm

    Additional equipment

    • - Bar feeder Breuning ILS RBK10016
    • - Coolant system

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Maximum workpiece diameter: main spindle: 250 mm, counter spindle: 120 mm
        • - Counter spindle: 49,823 hours
        • - Spindle speed driven tools: max. 4000 rpm
        • - Spindle power counter spindle: 26 kw
        • - Number of tools: 2 x 12
        • - Tapper size: shank according to din 69880: 30/40mm
        • - Spindle distance: 900mm
        • - High spindle speeds for efficient machining
        • - Driven tools for increased versatility
        • - Counter spindle for additional machining operations

      Extra information

      • - Bar feeder for continuous operation - Coolant system for temperature control and chip evacuation

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
