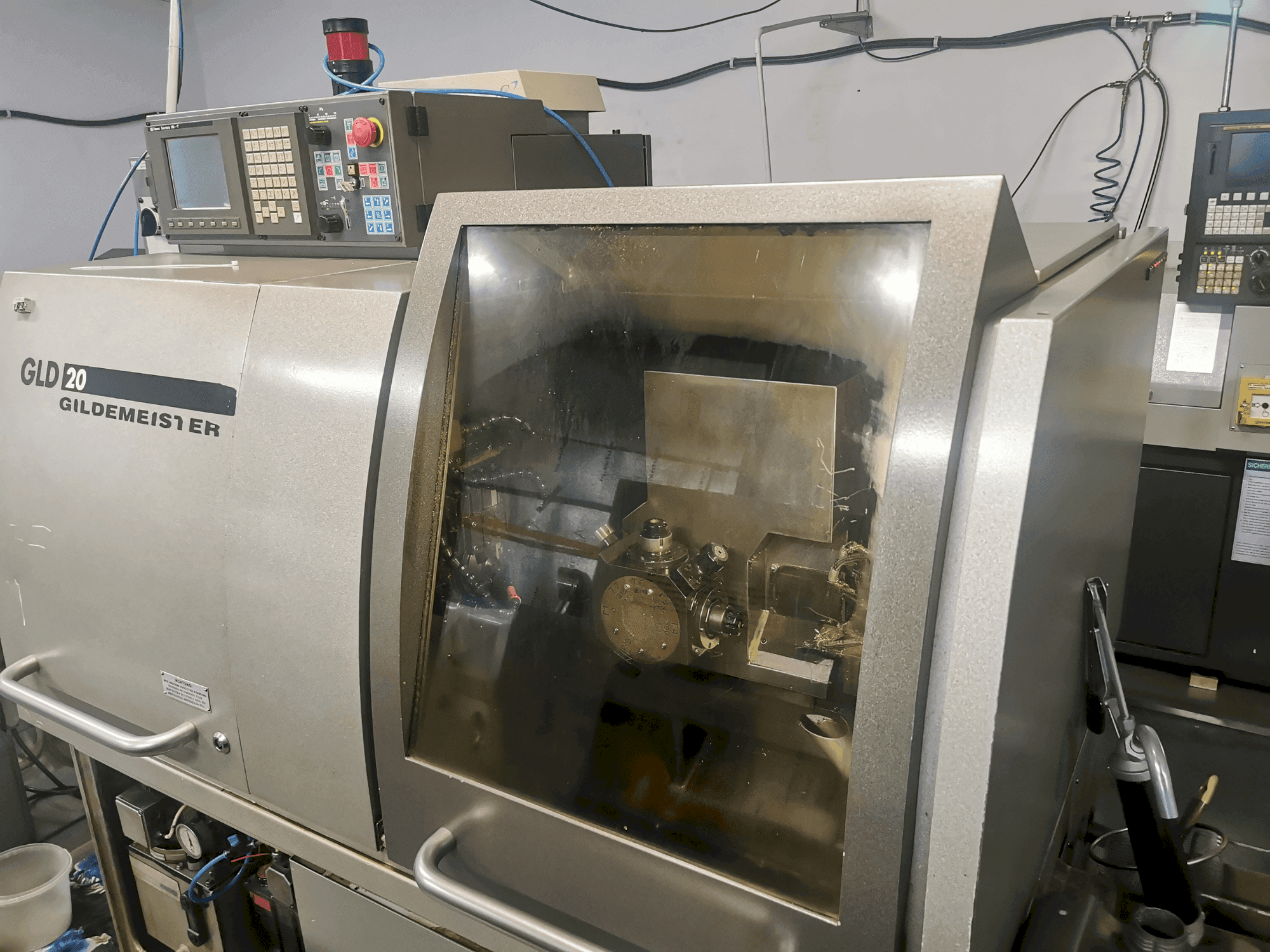

Front view of Gildemeister GLD 20 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Gildemeister GLD 20

Photo Gallery

Gildemeister - GLD 20PL-TUR-GIL-2001-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Gildemeister GLD 20 For Sale | gindumac.com

Show in original language

This 5-axis Gildemeister GLD 20 was manufactured in 2001, featuring a FANUC Series 18i-T control system. It offers a maximum turning diameter of 20 mm and a turning length of approximately 70 mm. The main spindle reaches up to 8000 rpm, while the sub-spindle tops at 5000 rpm. Includes a chip conveyor, collets, tool holders, spare parts, and an IEMCA GENIUS 226/32 bar feeder. If you are looking to get high-quality turning capabilities consider the Gildemeister GLD 20 machine we have for sale. Contact us for further details regarding this machine.

Overview

brand: Gildemeister
year: 2001
MODEL: GLD 20
production hours: 17386
application type: Turning
Location: Poland
machine type: Swiss Type Turning Machine
control unit brand: FANUC

Technical Information - Gildemeister GLD 20

Control Unit

Control Brand: FANUC
Control Model: Series 18i-T

Dimensions

Machine Depth: 2800 mm
Machine Height: 1800 mm
Machine Weight: 2000 kg

Movement

Number of Axes: 5

Technical Specification

Spindle Speed: 8000 RPM

Additional Information

Additional equipment

Collets
Tool Holders
Spare Parts
Drip Trays
Full Technical Documentation
Bar Feeder

Machine Benefits

Technical Machine Benefits

Max. Spindle speed (sub-spindle): 5000 rpm
Power supply: 3x 400 v, 50 hz
Rapid traverse in all axes: 12 m/min
Maximum turning diameter: 20 mm
Minimum turning diameter: 3 mm
Turning length: approx. 70 mm
The machine is generally in working condition but requires a technical inspection. It has minor oil leaks that should be addressed.

Extra Information

Bar Feeder Specifications Max. Bar Length: 3210 mm Max. Bar Diameter: 26 mm Max. Feed Speed: 1250 mm/s Bar Change Time: 30 s Dimensions (LxWxH): 4150 x 500 x 1200 mm Weight: 650 kg

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
