GEIBEL & HOTZ - RS 2000 CM-DSDE-GRI-GEI-2012-00002
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used GEIBEL & HOTZ RS 2000 CM-DS For Sale | gindumac.com

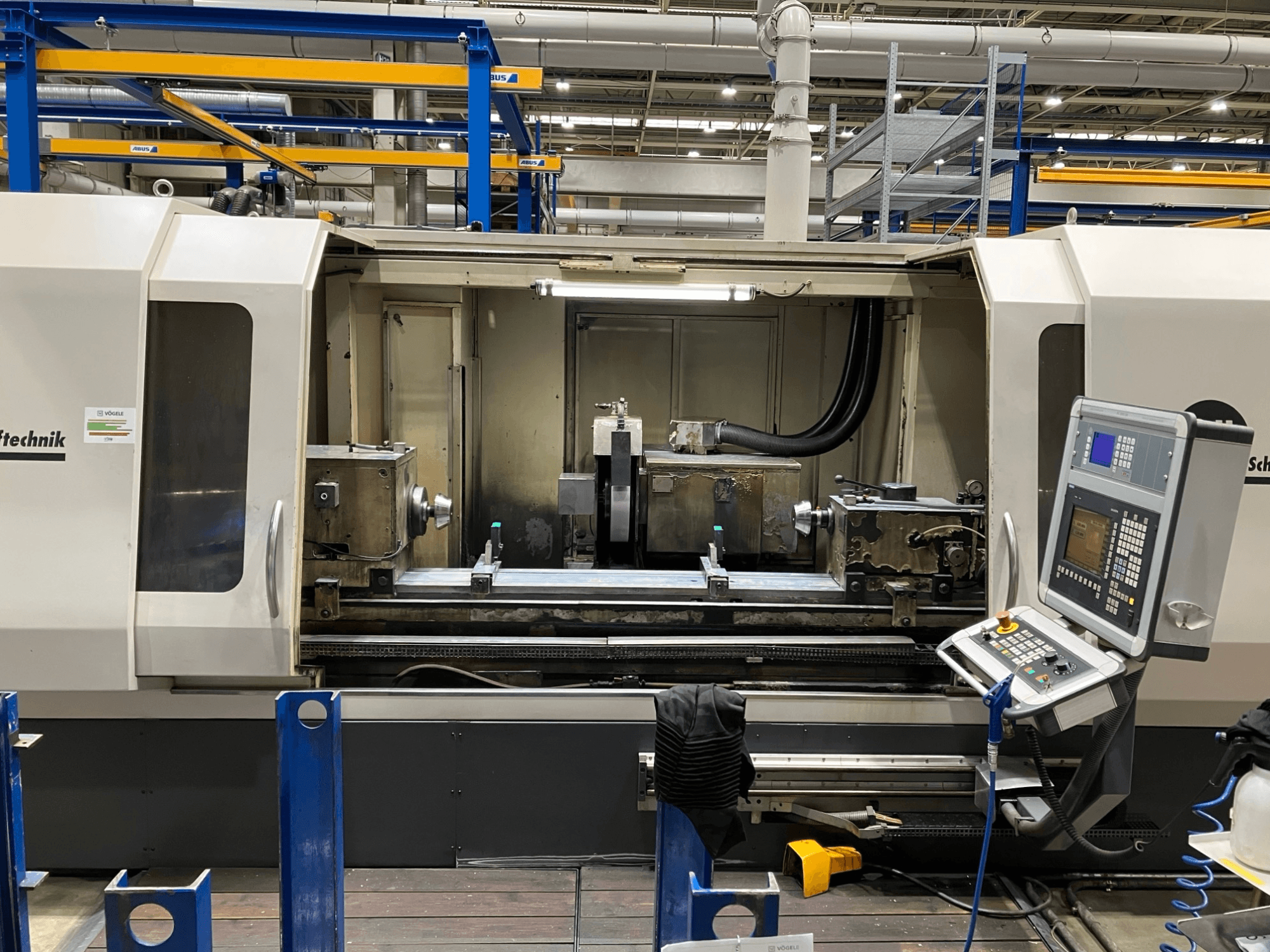

Cylindrical grinding machine manufactured in 2012. This GEIBEL & HOTZ RS 2000 CM-DS features a center distance of 2000 mm and a maximum swing diameter of 455 mm, accommodating workpieces up to 800 kg. With an electromechanical drive and a cross speed of 0.01 - 8,000 mm/min, it offers precision and efficiency. Consider the opportunity to buy this GEIBEL & HOTZ RS 2000 CM-DS cylindrical grinding machine. Contact us for further details.
Overview
- brand: GEIBEL & HOTZ
- year: 2012
- MODEL: RS 2000 CM-DS
- application type: Grinding
- Location: Germany
- machine type: Cylindrical Grinding Machine
- Available from: 01/06/2026
Additional Information
Center distance: 2000 mm
Center height: 230 mm
Swing diameter max.: 455 mm
Workpiece weight max.: 800 kg between centers; max. 200 Nm flying (including clamping device)
X-axis feed movement: electromechanical drive with ball screw
Cross speed: 0.01–8,000 mm/min
Setup: electric handwheel or directional pushbutton
Measuring system: glass scale, internal resolution 0.0005 mm
Workpiece spindle motor: 3.0 kW at 0–300 min⁻1
Mounting: MK5 and KK5
Tailstock: foot switch with quill stroke 40 mm and MK5
Commissioned: end of 2012
Maintenance: recurring maintenance measures according to manufacturer specifications
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
